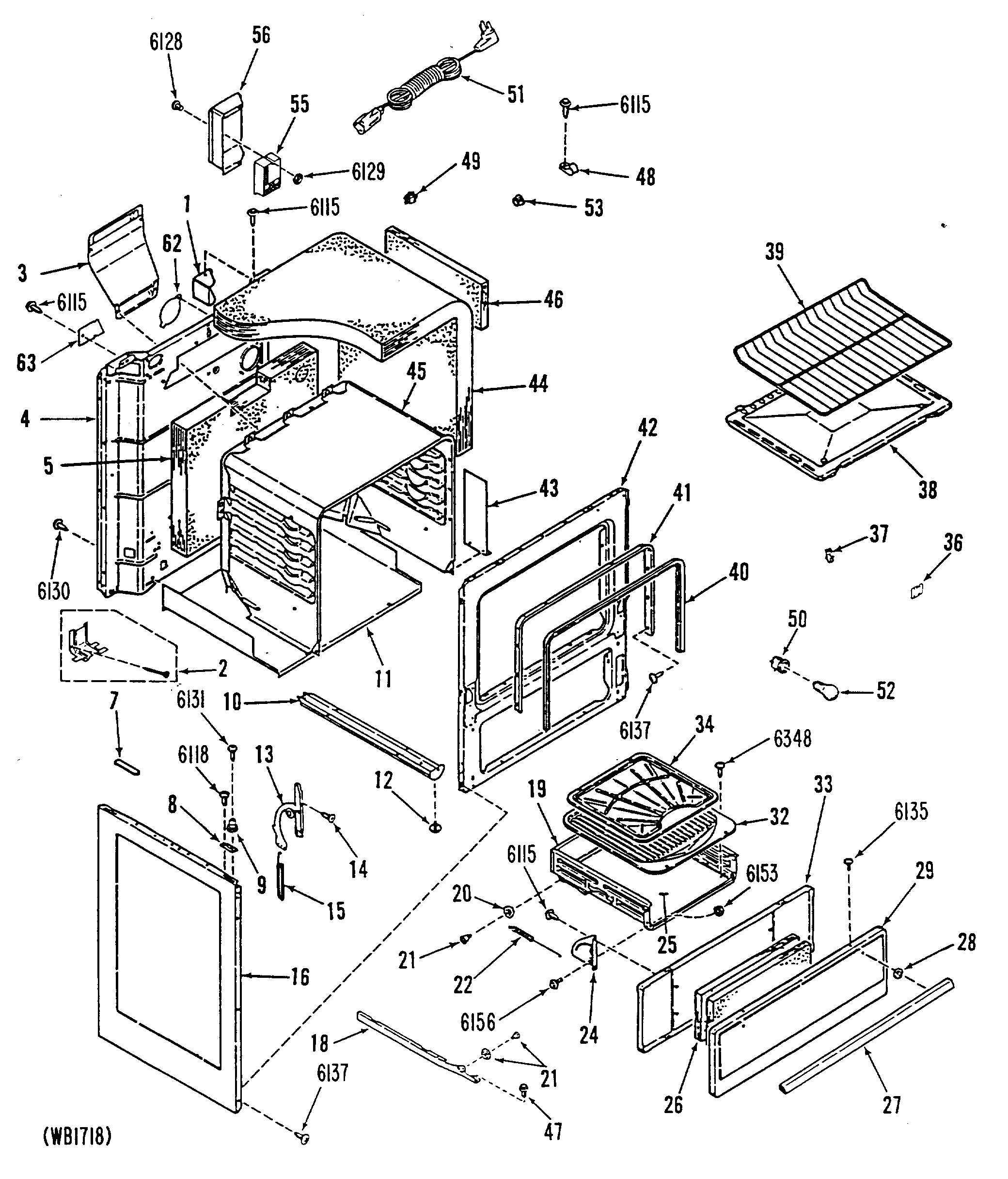

JGBC15GEK1 3

Products

Position	Product
1	GEN WB02X9102
2	WB2X7909 GE Oven Anti-Tip Kit
3	GEN WB38X0105
4	GEN WB63X0347
5	INSULATION-TOP & SIDES
7	MAINTOP SPACER
8	BODY SIDE SUPPORT-RT
8	BODY SIDE SUPPORT-LT
10	BASE ASM W/LEVELER
11	MAIN BOTTOM
12	GEN WB02X9188
13	WB14X104 GE Stove Range Oven Right Hand Door Hinge
13	WB14X103 GE Range Oven Left Door Hinge
14	WB1K5191 GE Oven Zinc FL Screw
15	GEN WB09X0267
16	BODY SIDE-ALMOND
16	BODY SIDE-WHITE
16	PANEL-BODY-SIDE-BLACK
18	GUIDE-BROILER-LEFT
18	GUIDE-BROILER-RIGHT
19	DRAWER-BROILER
21	ROLLER
22	GEN WB09X0240
24	BRO DRAWER HINGE-RT
24	BRO DRAWER HINGE-LT
25	GEN WB49X0625
26	INSULATION
27	GEN WB15X0270
28	DOOR HANDLE SPACER-BLACK
29	LOWER FRONT PANEL
32	BROILER PAN
33	BROILER DR LINING
34	BROILER PAN GRID
36	WB2X9189 GE Oven Plug – REC
37	THERMOSTAT BULB RET CLIP
38	OVEN BOTTOM
39	GEN WB48X0208
40	GEN WB02X9028
41	DR SEAL RETAINER
42	GEN WB63X0328
43	UNKNOWN
44	OVEN BODY INSULATION
45	OVEN BODY
48	CLIP CABLE NYLON
49	DISCONNECT
50	WB8K5029 GE Oven Lamp Holder
51	POWER SUPPLY CORD
52	GEN BUY-LOCAL
53	SNAP BUSHING 1/2"
55	SPARK IGN MODULE
56	WIRE SHIELD ASM
62	LIGHT COVER PLATE
63	FLUE PLATE COVER
6115	WB1M1 GE Oven Screw
6118	WB1X1118 GE Oven Screw 6-32T
6128	GEN WB01X1128
6129	GEN WB01X1129
6130	WB1X1130 GE Oven Screw 10-32
6131	WB1X1131 GE Screw 6-32
6137	WB1X1137 GE Oven Screw
6153	HEX NUT
6156	GEN WB01X1156
6348	GEN WB01X1348
