JGBC15GEK3 0

JGBC15GEK3 0

Written by

in

JGBC15GEK3 0

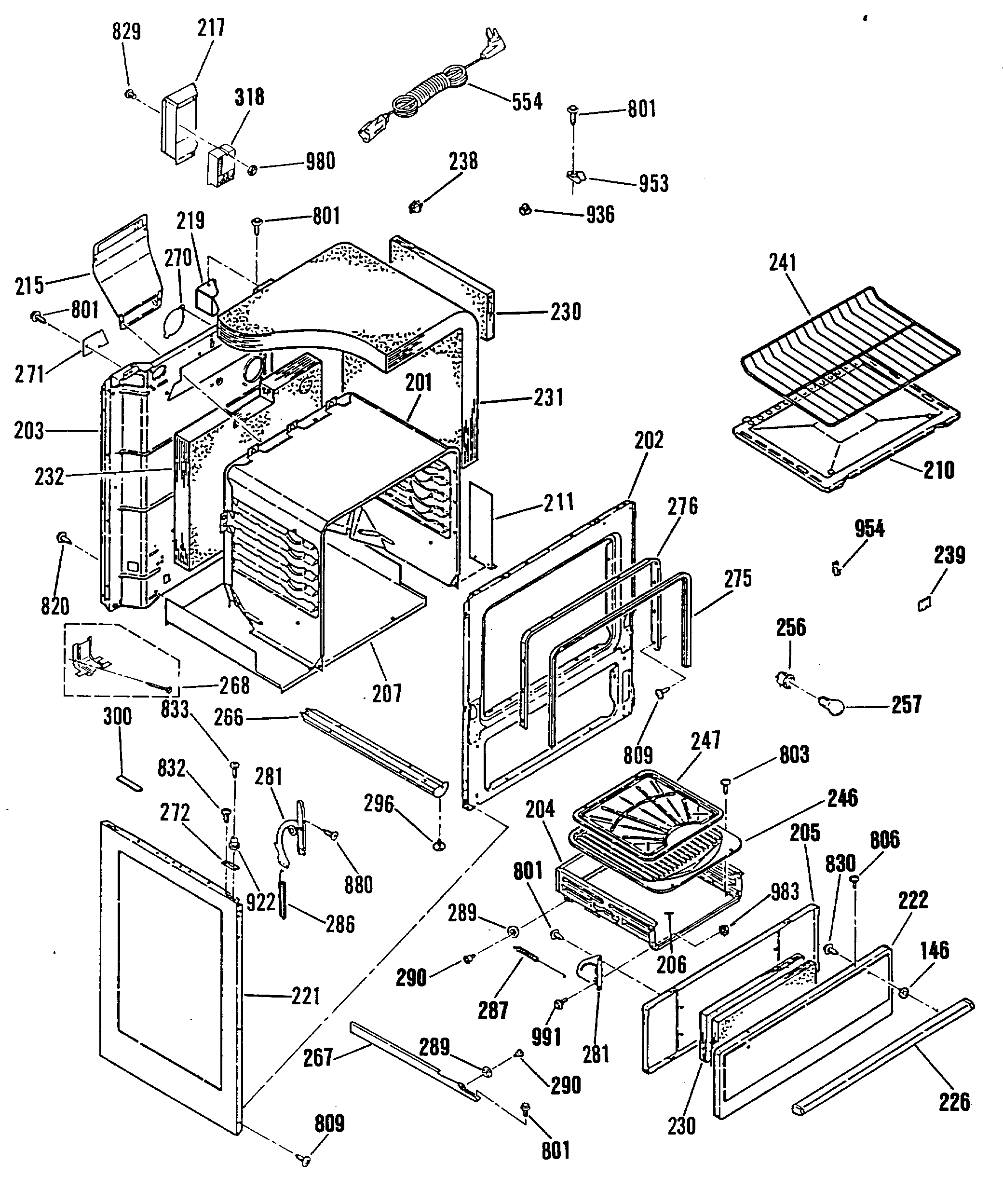

Products

Position	Product
29	GAS VALVE KNOB
146	DOOR HANDLE SPACER-BLACK
201	OVEN BODY
202	GEN WB63X0328
203	GEN WB63M0047
204	BRO DRAWER ASM W/ROLLER
205	BROILER DR LINING
206	GEN WB49X0625
207	GEN WB63M0028
210	OVEN BOTTOM
211	UNKNOWN
215	GEN WB38X0105
217	WIRE SHIELD ASM
219	GEN WB02X9102
221	BODY SIDE-ALMOND
221	BODY SIDE-WHITE
222	LOWER FRONT PANEL
226	GEN WB15X0270
230	GEN WB02X9394
231	OVEN BODY INSULATION
232	INSULATION-TOP & SIDES
238	DISCONNECT
239	WB2X9189 GE Oven Plug – REC
241	OVEN RACK-LOWER OVEN
246	BROILER PAN
247	BROILER PAN GRID
256	WB8K5029 GE Oven Lamp Holder
257	GEN BUY-LOCAL
266	BASE ASM W/LEVELER
267	WB39M3 GE Oven Drawer Assembly
267	DRAWER GUIDE-RT
268	WB2X7909 GE Oven Anti-Tip Kit
270	LIGHT COVER PLATE
271	FLUE PLATE COVER
272	BODY SIDE SUPPORT-RT
272	BODY SIDE SUPPORT-LT
275	OV DOOR SEAL
276	DR SEAL RETAINER
281	WB14X104 GE Stove Range Oven Right Hand Door Hinge
281	WB14X103 GE Range Oven Left Door Hinge
281	BRO DRAWER HINGE-RT
281	BRO DRAWER HINGE-LT
286	GEN WB09X0267
287	GEN WB09X0240
289	ROLLER
290	GEN WB01X1331
296	GEN WB02X9188
300	MAINTOP SPACER
301	TUBE 3/8 W/NUT
302	3/16 TUBE
318	SPARK IGN MODULE
554	GEN WB18X0370
801	WB1M1 GE Oven Screw
803	WB1X1149 GE Oven Screw
806	SCREW-BRT. NI.
809	WB1X1137 GE Oven Screw
820	WB1X1424D GE Oven Screw Package
829	GEN WB01X1128
830	WB1X1130 GE Oven Screw 10-32
832	WB1X1118 GE Oven Screw 6-32T
833	WB1X1131 GE Screw 6-32
880	WB1K5191 GE Oven Zinc FL Screw
922	MT STRIKE
936	GEN WB02X9103
936	SNAP BUSHING 1/2"
953	CLIP CABLE NYLON
954	THERMOSTAT BULB RET CLIP
980	GEN WB01X1129
983	HEX NUT
991	GEN WB01X1156
999	OWNERS MANUAL
999	GEN WB18M0036
999	GEN WB18M0035
999	GEN 31-0698
999	GEN WB18X0299
