JGBC15GEK3 2

Products

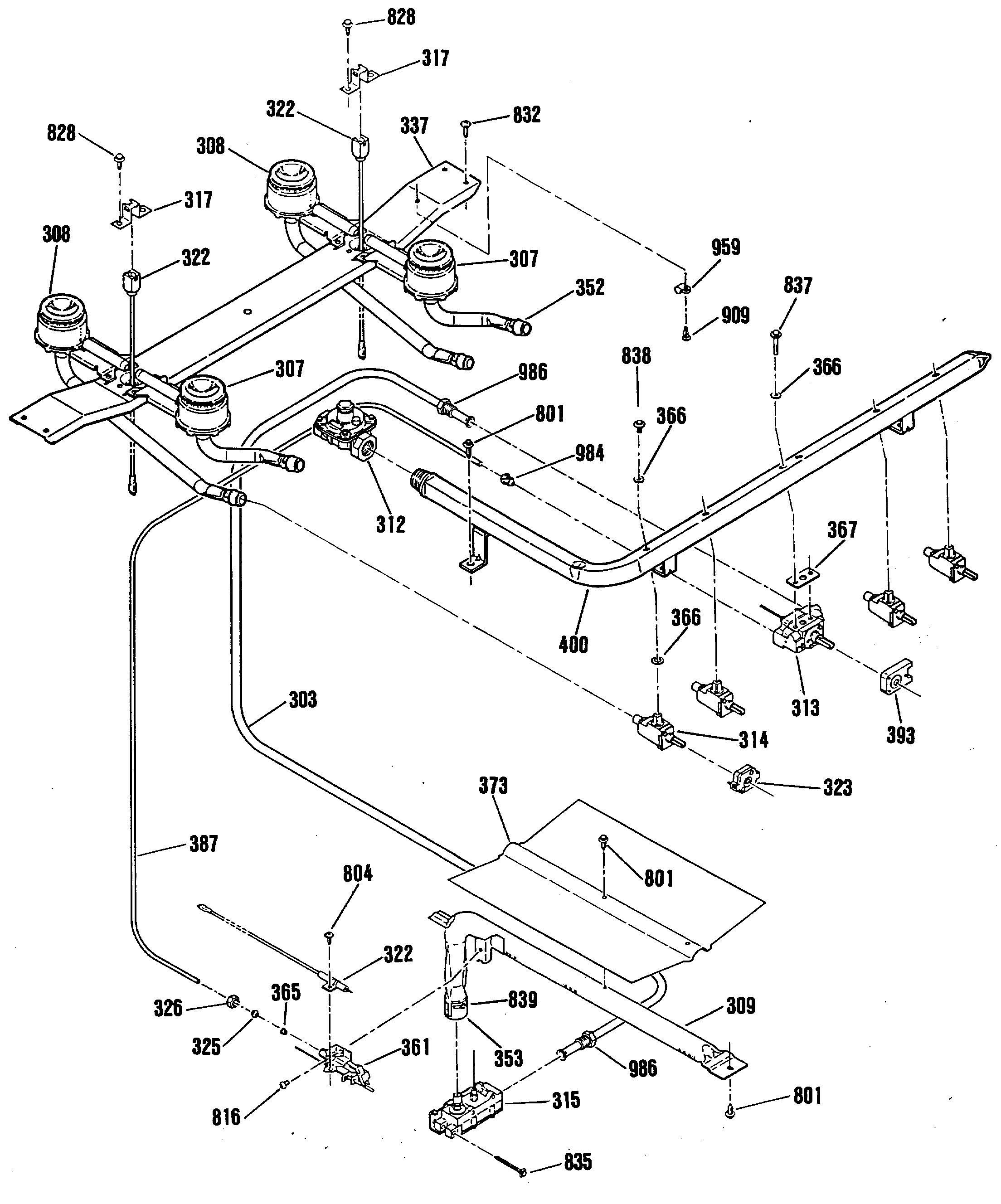

Position	Product
307	TOP BURNER ASM-FRONT
308	TOP BURNER ASM-REAR
309	GEN WB16M0008
312	GEN WB21X0465
313	OVEN THERMOSTAT
314	VALVE-TOP BURNER
315	GEN WB21X0474
317	IGNITER BRACKET
322	SPARK IGN ELECTRODE RT
322	SPARK IGN ELECTRODE LT
322	OVEN SPARK IGN ELECTRODE
323	VALVE SWITCH
325	TUBING SLEEVE 3/16
326	TUBING NUT 3/16
337	TOP BURNER SUPPORT
353	AIR SHUTTER-OVEN
361	PILOT W/CUP
365	GEN WB02X9017
366	VALVE SCREW GASKET
366	VALVE GASKET
366	THERMOSTAT SCREW GASKET
367	THERMOSTAT GASKET
373	OV BURN BAFFLE
393	THERMOSTAT SWITCH
400	MANIFOLD PIPE ASM
801	WB1M1 GE Oven Screw
804	WB1X681 GE Oven Screw
816	GEN WB01X1125
828	WB1X1141 GE Oven Screw 8-32
832	WB1X1118 GE Oven Screw 6-32T
835	GEN WB01X1123
837	GEN WB01X1151
838	GEN WB01X1121
839	ADJUSTING SCREW
909	RIVET
959	GEN WB02X9737
984	HEX NUT
986	NUT
