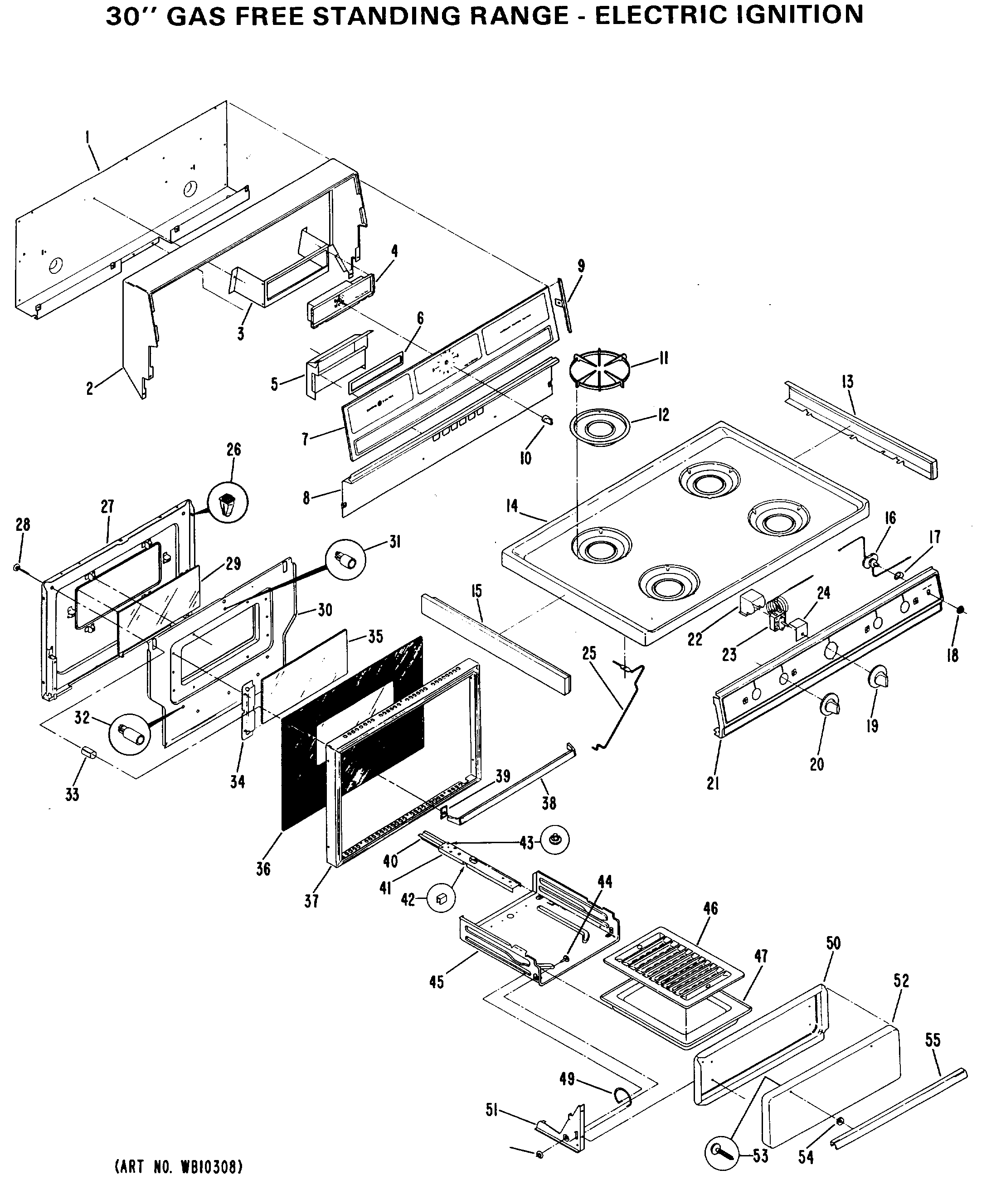

JGBC16GEH3 30″ GAS FREE STANDING RANGE – ELECTRIC IGNITION

Products

PositionProduct
1GEN WB49X0562
2GEN WB61X0277
3GEN WB02X4276
4GEN WB19X0208
5GEN WB49X0524
6GEN WB02X4277
7GEN WB61X0272
8GEN WB61X0273
9GEN WB02X4278
10KNOB-CLOCK
11GEN WB32X0083
12GEN WB32X0084
13GEN WB07X1363
14GEN WB62X1622
14GEN WB62X1621
15TRIM-COOKTOP-LEFT
16GEN WB24X0330
17GEN WB01X0808
18GEN WB01X0726
19GEN WB03X0627
20GEN WB03X0626
21GEN WB07X1371
22GEN WB02X4273
23GEN WB21X0394
24GEN WB02X4274
25GEN WB02X4280
26GEN WB01X0705
27GEN WB55X0573
28GEN WB01X0687
29GEN WB36X0678
30GEN WB55X0518
31GEN WB01X0727
32GEN WB01X0728
33GEN WB02X4283
34GEN WB02X4284
35GEN WB36X0679
36GEN WB36X0680
37GEN WB07X1373
38GEN WB01X0832
38GEN WB01X0833
38GEN WB15X0208
39GEN WB02X4285
40GEN WB02X4202
41GEN WB02X4203
42GEN WB01X0703
43GEN WB01X0702
44GEN WB01X0701
45BODY-BROILER
47WB48X10056 GE Broil Pan Set, Large Porcelain
49GEN WB09X0200
49GEN WB09X0197
50GEN WB55X0570
51GEN WB02X4535
51GEN WB02X4536
52GEN WB56X1750
53GEN WB01X0699
54GEN WB01X0700
55GEN WB15X0206
56RETAINER IGN. HARNESS
57GEN WB01X0809
57GEN WB27X0277
58GEN WB02X4667
58GEN WB02X4213
59BASE IGNITOR RH
60TUBE OVEN GAS SUPPLY 7/16"X55"
61BASE IGNITOR LH
62GEN WB21X0389
63MIXER AIR TOP BURNERS
64GEN WB21X0395
65GEN WB02X4188
66GEN WB28X0041
67GEN WB28X0042
68VALVE-TOP BURNERS
69MANIFOLD PIPE
70GEN WB24X0325
71VALVE MANUAL CUT-OFF
73NUT
74SHIELD-OVEN BOTTOM
75GEN WB49X0511
76HARNESS IGNITOR
77TUBE IGNITOR
78TERMINAL BLOCK-IGNITOR
78WB2X9998 GE Oven Flat Igniter
79BURNER OVEN
80GEN WB02X4195
81VALVE-OVEN SAFETY
81COVER-SAFETY VALVE
82GEN WB01X0713
83GEN WB02X4220
84FASTENER VALVE MTG
85GEN WB02X4211
86BAFFLE BROILER BURNER
87SUPPORT TO BURNER
88GEN WB01X0729
89GLIDE MAIN TOP
90GEN WB56X1769
90PANEL-ALMOND
91TRIM VERTICAL
92GEN WB14X0047
93GEN WB55X0514
94COVER IGNITOR
95MAIN BACK
96BURNER BOX
97TERMINAL BLOCK
98SCREW 6-20X1/2"
99CLIP-THERMOSTAT BULB
100MAIN BASE
101GEN WB18X0214
102FASTENER LEG LEVELER
103LEVELING LEG
105SPRING OVEN DOOR
106WZ4X230D GE Screw Package 12
108GEN WB08X0241
110SEAL DOOR SIDE
111GEN WB48X0166
112HINGE OVEN DOOR LH
112HINGE OVEN DOOR RH
113GEN WB02X4270
114GEN WB49X0521
115GEN WB49X0570
116SEAL DOOR BOTTOM/TOP
9999GEN 31-0459
9999GEN 49-4678
