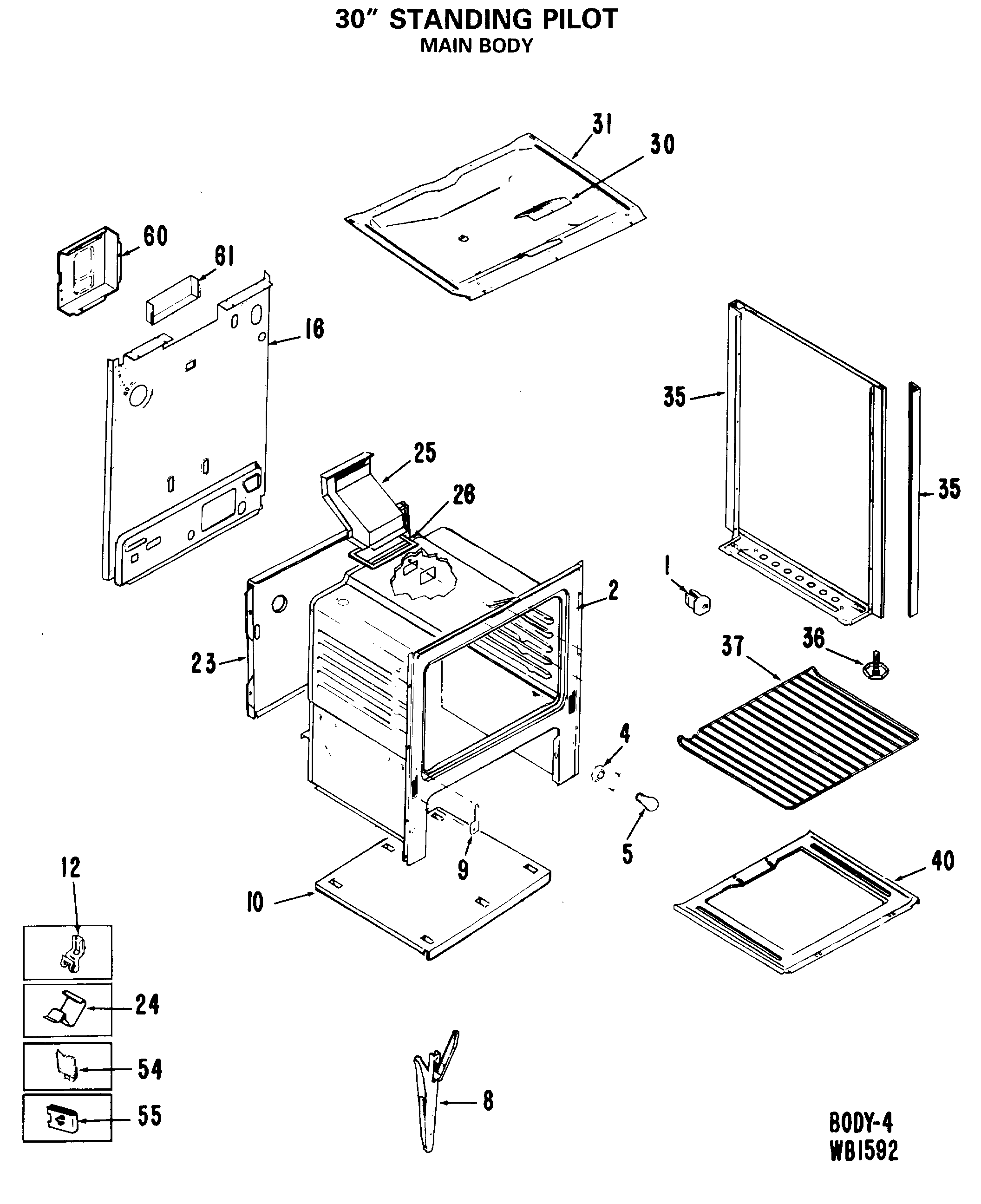

JGBC16GPJ5 30″ STANDING PILOT

JGBC16GPJ5 30″ STANDING PILOT

Written by

in

JGBC16GPJ5 30″ STANDING PILOT

Products

Position	Product
1	GEN WB01X0931
2	INSULATION-OVEN WRAP
2	GEN WB02X4965
2	OVEN ASSEMBLY
2	GEN WB2X10119
2	FITTING-LOXIT
2	GEN WB02X4777
4	GEN WB02X4967
4	GEN WB08X0262
5	GEN BUY-LOCAL
8	HINGE-W/SPRING
8	SPRING-OVEN DOOR HINGE
9	GEN WB02X4953
10	GEN WB63X0288
12	CLIP-THERMOSTAT BULB
15	GEN WB18X0255
16	BACK-MAIN
23	GEN WB63X0287
24	GEN WB01X0923
25	GEN WB38X0094
26	GEN WB38X0095
30	GEN WB02X4775
31	GEN WB56X1780
35	GEN WB07X1532
35	PANEL-SIDE-LH-ALMOND
35	PANEL-SIDE-LH-WHITE
35	PANEL-SIDE-RH-ALMOND
35	PANEL-SIDE-RH-WHITE
36	LEVELING LEG
37	GEN WB48X0190
39	WB48X10056 GE Broil Pan Set, Large Porcelain
40	GEN WB02X4776
40	SCREW-OVEN BOTTOM
40	GEN WB53X0272
54	GEN WB01X1014
55	FASTENER-HINGE
60	GEN WB63X0286
61	GASKET-FLUE
163	GEN WB07X1479
168	GEN WB61X0316
168	GEN WB61X0317
170	GEN WB19X0231
171	CONTROL PANEL-GLASS
173	KNOB-CLOCK
174	GEN WB02X4945
175	GEN WB24X0376
180	GEN WB02X4952
180	TRIM-SURROUND-BACKSPLASH
181	GEN WB07X1518
182	GEN WB02X4946
184	GEN WB07X1517
190	GEN WB61X0319
301	GEN WB07X1529
302	KNOB-TOP BURNER VALVE
303	GRATE-TOP BURNER
304	GEN WB32X0090
305	BRACKET-COOKTOP-LH
306	BRACKET-COOKTOP-RH
307	GEN WB62X1647
307	GEN WB62X1646
308	CAM DOOR
309	TRIM-COOKTOP-LEFT
310	GEN WB07X1527
343	GEN WB03X0716
371	CAP-VENT-PILOT
372	GEN WB2X10023
462	GEN WB56X1883
465	GEN WB15X0245
466	PLUG-DOOR LINER
466	GEN WB56X1974
467	GEN WB02X4984
468	GEN WB56X1980
469	GEN WB02X4738
470	GEN WB07X1483
471	GEN WB01X0927
472	GEN WB01X0705
473	GEN WB01X1016
474	GEN WB56X1834
474	SCREW
475	GEN WB02X4983
476	SCREW
478	GEN WB01X0688
480	GEN WB02X4985
501	GEN WB14X0084
501	GEN WB14X0085
502	PUSH NUT FASTENER
503	BODY-BROILER
503	SCREW
503	SCREW
504	GEN WB01X0701
505	GEN WB09X0200
505	GEN WB09X0197
513	GEN WB39X0066
514	GEN WB02X4996
552	GLIDE-BROILER
553	PANEL-BROILER DOOR-BLACK
554	HANDLE-BROILER DOOR
555	INSULATION-BROILER DOOR
555	LINER-BROILER DOOR PANEL
556	GEN WB01X1025
617	GEN WB02X4193
620	GEN WB02X4236
629	GEN WB02X4192
630	GEN WB2X10014
702	BAFFLE-OVEN
704	GEN WB28X0074
705	BURNER-TOP (DOUBLE)
706	GEN WB2X10011
707	GEN WB02X4742
708	GEN WB02X4743
709	GEN WB02X4744
710	GEN WB02X4745
711	GEN WB02X4746
713	GEN WB2X10015
714	GEN WB21X0443
715	ELBOW
715	NUT-COMPRESSION
725	GEN WB02X4756
727	TUBE-ALUMINUM
730	VALVE-SAFETY
732	GEN WB21X0445
733	GEN WB2X10000
734	NUT
737	NUT-SPECIAL
742	GEN WB21X0446
743	GEN WB02X4190
744	GEN WB2X10004
746	GEN WB2X10010
747	TUBE-ALUMINUM
749	GEN WB2X10005
751	GEN WB2X10003
32767	GEN WB02X9804
32767	GEN 31-0627
32767	GEN 49-4946
