JGBC16GPJ6 30″ STANDING PILOT

JGBC16GPJ6 30″ STANDING PILOT

Written by

in

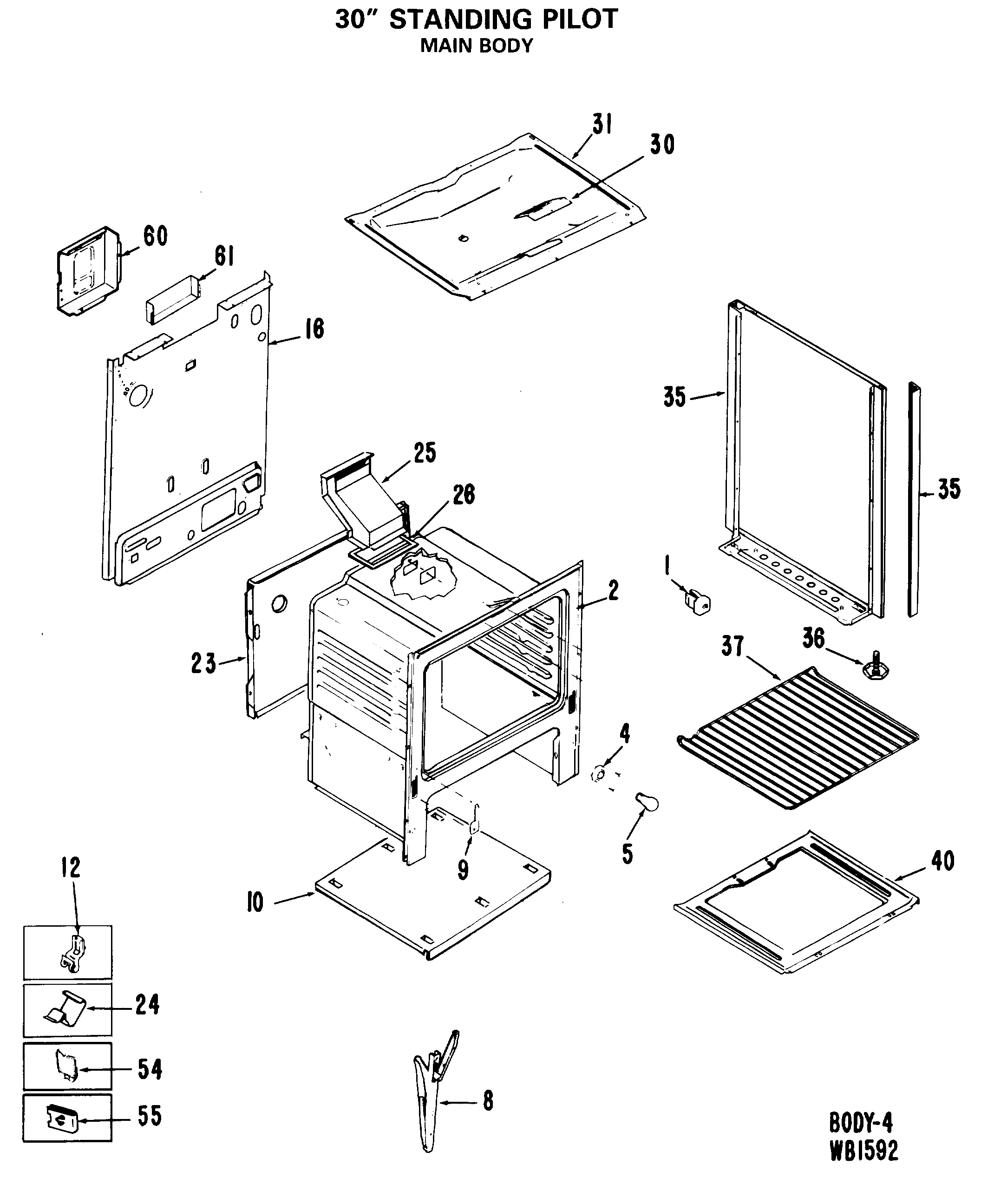

JGBC16GPJ6 30″ STANDING PILOT

Products

Position	Product
1	GEN WB01X0931
2	OVEN ASSEMBLY
2	GEN WB02X4965
2	GEN WB2X10119
2	GEN WB18X0255
2	INSULATION-OVEN WRAP
2	FASTENER-POWER CORD
2	*BUMPER-FRONT MAIN
4	GEN WB08X0262
4	GEN WB02X4967
5	GEN BUY-LOCAL
8	HINGE-W/SPRING
9	COVER-HINGE CUT OUT
10	GEN WB63X0288
10	GEN WB02X4968
12	CLIP-THERMOSTAT BULB
16	BACK-MAIN
23	GEN WB63X0287
24	GEN WB01X0923
25	GEN WB38X0094
26	COVER PLATE
26	GEN WB38X0093
30	PLATE-COVER
31	GEN WB56X1780
35	GEN WB07X1532
35	PANEL-SIDE-LEFT-ALMOND
35	PANEL-SIDE-LEFT-WHITE
35	PANEL-SIDE-RIGHT-ALMOND
35	PANEL-SIDE-RIGHT-WHITE
36	SCREW-LEVELING
37	GEN WB48X0190
39	WB48X10056 GE Broil Pan Set, Large Porcelain
40	SCREW-OVEN BOTTOM
40	GEN WB02X4776
40	BOTTOM-OVEN-REMOVABLE
54	GEN WB01X1014
55	FASTENER-HINGE
60	GEN WB63X0286
61	GASKET-FLUE
163	GEN WB07X1479
168	GEN WB61X0316
168	GEN WB61X0317
170	GEN WB19X0231
171	CONTROL PANEL-GLASS
173	KNOB-CLOCK
174	GEN WB02X4945
175	GEN WB24X5271
180	TRIM-SURROUND-BACKSPLASH
180	GEN WB02X4952
181	GEN WB07X1518
182	GEN WB02X4946
184	GEN WB07X1517
190	GEN WB61X0319
301	GEN WB07X1529
302	KNOB-TOP BURNER VALVE
303	GRATE-TOP BURNER
304	GEN WB32X0090
305	HINGE CKTP LEFT
306	HINGE CKTP RIGHT
307	GEN WB62X1646
307	GEN WB62X1647
308	CAM DOOR
309	TRIM-COOKTOP-LEFT
310	GEN WB07X1527
343	GEN WB03X0716
371	CAP-VENT-PILOT
372	GEN WB2X10023
462	GEN WB56X1883
465	GEN WB15X0245
466	PLUG-DOOR LINER
466	GEN WB56X1974
466	SCREW-DOOR MOUNTING
467	GEN WB02X4984
468	GEN WB56X1980
469	GEN WB02X9051
469	GEN WB02X4738
470	GEN WB07X1483
471	CLIP-RETAINING
472	GEN WB01X0705
473	GEN WB01X5818
474	GEN WB56X1834
476	SCREW
478	GEN WB01X0688
480	GEN WB02X8023
501	BRACKET-BROILER HINGE-RH
501	BRACKET-BROILER HINGE-LH
502	PUSH NUT FASTENER
503	SCREW
503	BODY-BROILER
504	GEN WB01X0701
505	GEN WB09X0200
505	GEN WB09X0197
513	GEN WB39X0066
552	GLIDE-BROILER
553	PANEL-BROILER DOOR-BLACK
554	HANDLE-BROILER DOOR
555	LINER-BROILER DOOR PANEL
555	INSULATION-BROILER DOOR
617	GEN WB02X4193
620	GEN WB02X4236
629	GEN WB02X4192
630	GEN WB2X10014
702	BAFFLE-OVEN
704	GEN WB28X0080
705	BURNER-TOP (DOUBLE)
706	GEN WB2X10011
708	GEN WB02X4743
709	GEN WB02X4744
710	BURNER TUBE-LEFT FRONT
711	GEN WB02X4746
713	GEN WB2X10015
714	GEN WB21X0443
715	NUT-COMPRESSION
715	ELBOW
725	FITTING-LOXIT
727	TUBE-ALUMINUM
730	VALVE-SAFETY
732	GEN WB21X0445
733	GEN WB2X10000
734	NUT
737	NUT-SPECIAL
742	GEN WB21X0446
743	GEN WB02X4190
744	GEN WB2X10004
746	GEN WB2X10010
747	TUBE-ALUMINUM
749	GEN WB2X10005
751	GEN WB2X10003
32767	GEN 49-4946
32767	GEN 31-0627
32767	GEN WB02X9804
