Products

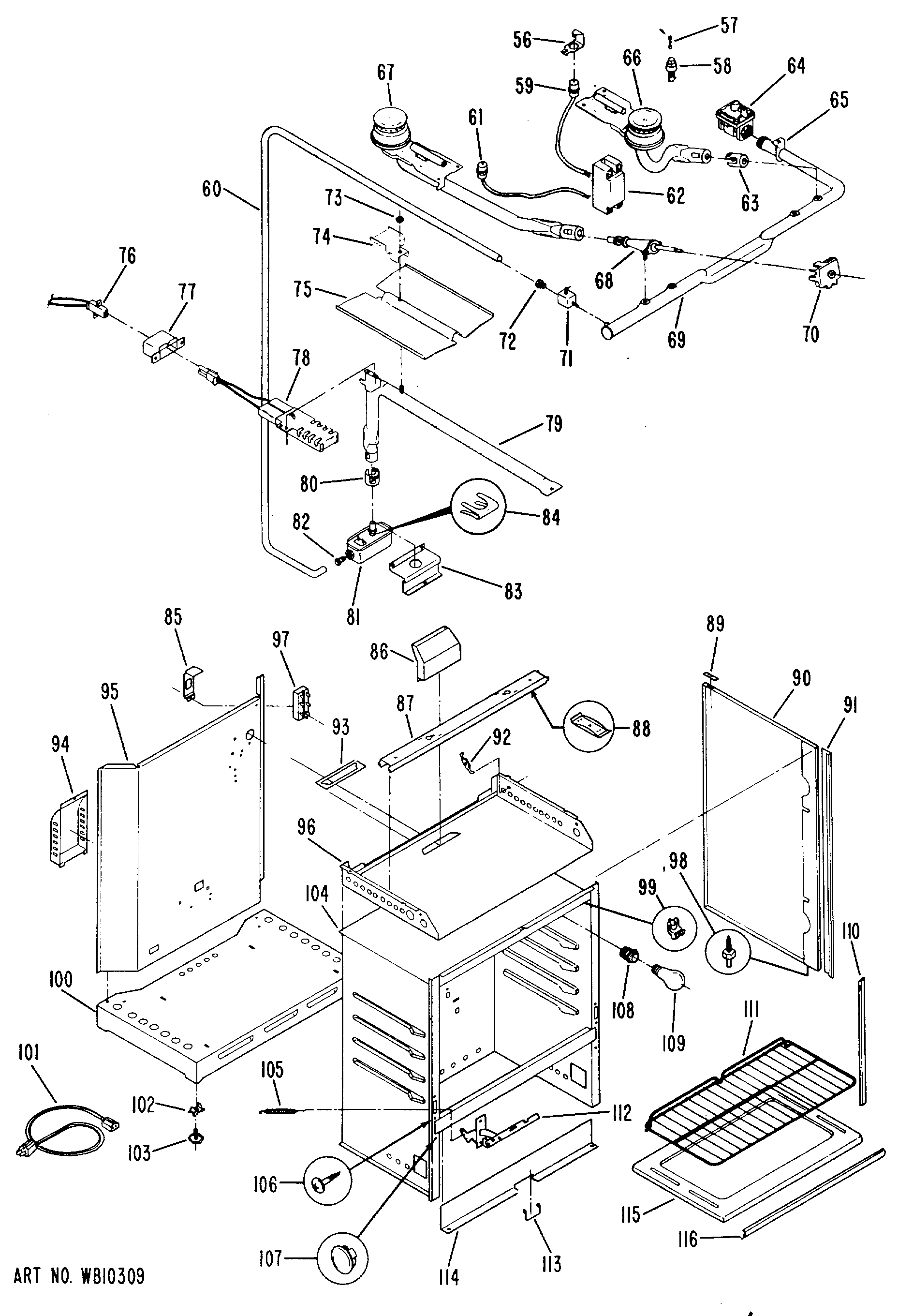

Position	Product
56	RETAINER IGN. HARNESS
57	GEN WB27X0277
57	GEN WB01X0809
58	GEN WB02X4213
59	BASE IGNITOR RH
60	TUBE OVEN GAS SUPPLY 7/16"X55"
61	BASE IGNITOR LH
62	GEN WB21X0389
63	MIXER AIR TOP BURNERS
64	GEN WB21X0395
65	GEN WB02X4188
66	GEN WB28X0041
67	GEN WB28X0042
68	VALVE-TOP BURNERS
69	MANIFOLD PIPE
70	GEN WB24X0325
71	VALVE MANUAL CUT-OFF
73	NUT
74	SHIELD-OVEN BOTTOM
75	GEN WB49X0511
76	HARNESS IGNITOR
77	TUBE IGNITOR
78	WB2X9998 GE Oven Flat Igniter
78	TERMINAL BLOCK-IGNITOR
79	BURNER OVEN
80	GEN WB02X4195
81	COVER-SAFETY VALVE
81	VALVE-OVEN SAFETY
82	GEN WB01X0713
83	GEN WB02X4220
84	FASTENER VALVE MTG
85	GEN WB02X4211
86	BAFFLE BROILER BURNER
87	SUPPORT TO BURNER
88	GEN WB01X0729
89	GLIDE MAIN TOP
90	PANEL-ALMOND
90	PANEL-WHITE
91	TRIM VERTICAL
92	GEN WB14X0047
93	GEN WB55X0514
94	COVER IGNITOR
95	MAIN BACK
96	BURNER BOX
97	TERMINAL BLOCK
98	SCREW 6-20X1/2"
99	CLIP-THERMOSTAT BULB
100	MAIN BASE
101	GEN WB18X0214
102	FASTENER LEG LEVELER
103	LEVELING LEG
105	SPRING OVEN DOOR
106	WZ4X230D GE Screw Package 12
107	GEN WB01X0702
108	GEN WB08X0241
110	SEAL DOOR SIDE
111	GEN WB48X0166
112	HINGE OVEN DOOR LH
112	HINGE OVEN DOOR RH
113	GEN WB02X4270
114	GEN WB02X0521
115	GEN WB55X0513
116	SEAL DOOR BOTTOM/TOP
