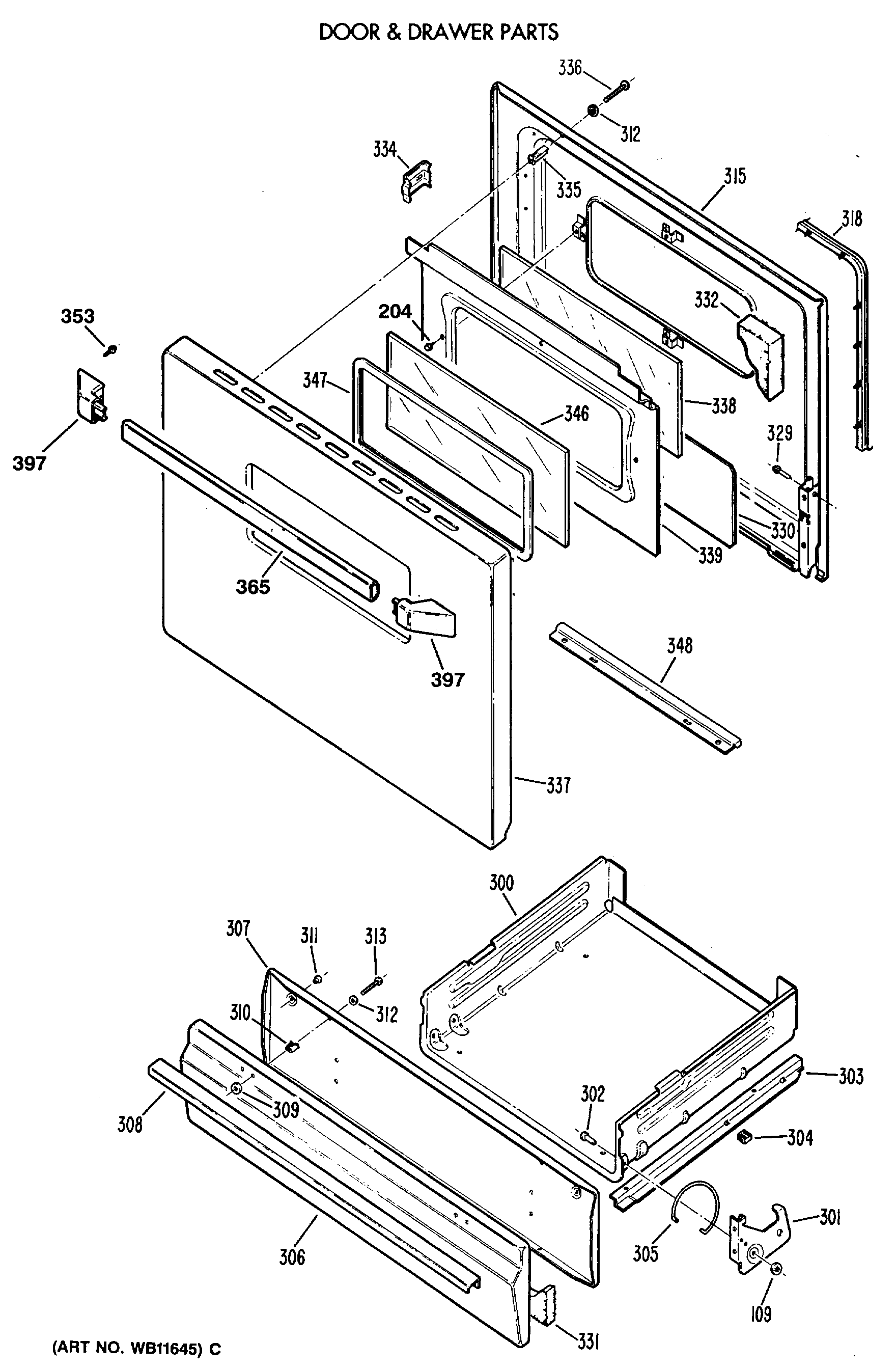

JGBC18EV3WW DOOR & DRAWER PARTS

JGBC18EV3WW DOOR & DRAWER PARTS

Written by

in

JGBC18EV3WW DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
204WZ4X345D GE Screw Package 12 C92
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306WB56X21199 GE Oven Drawer Panel
307GEN WB39K0005
308GEN WB15K0017
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313GEN WB01K0016
315GEN WB55K0021
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
330GEN WB55K0001
331GEN WB35K0003
332GEN WB35K0005
334GEN WB02K0013
335GEN WB02K0002
337GEN WB56K0038
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
346WB57K18 GE Oven Crystal Wind
347GEN WB07K0086
348GEN WB02K0050
353WB1K67 GE Oven Screw 8-22
365HANDLE DOOR (WH)
397WB7X7189 GE Oven Range Door Handle Endcap White
