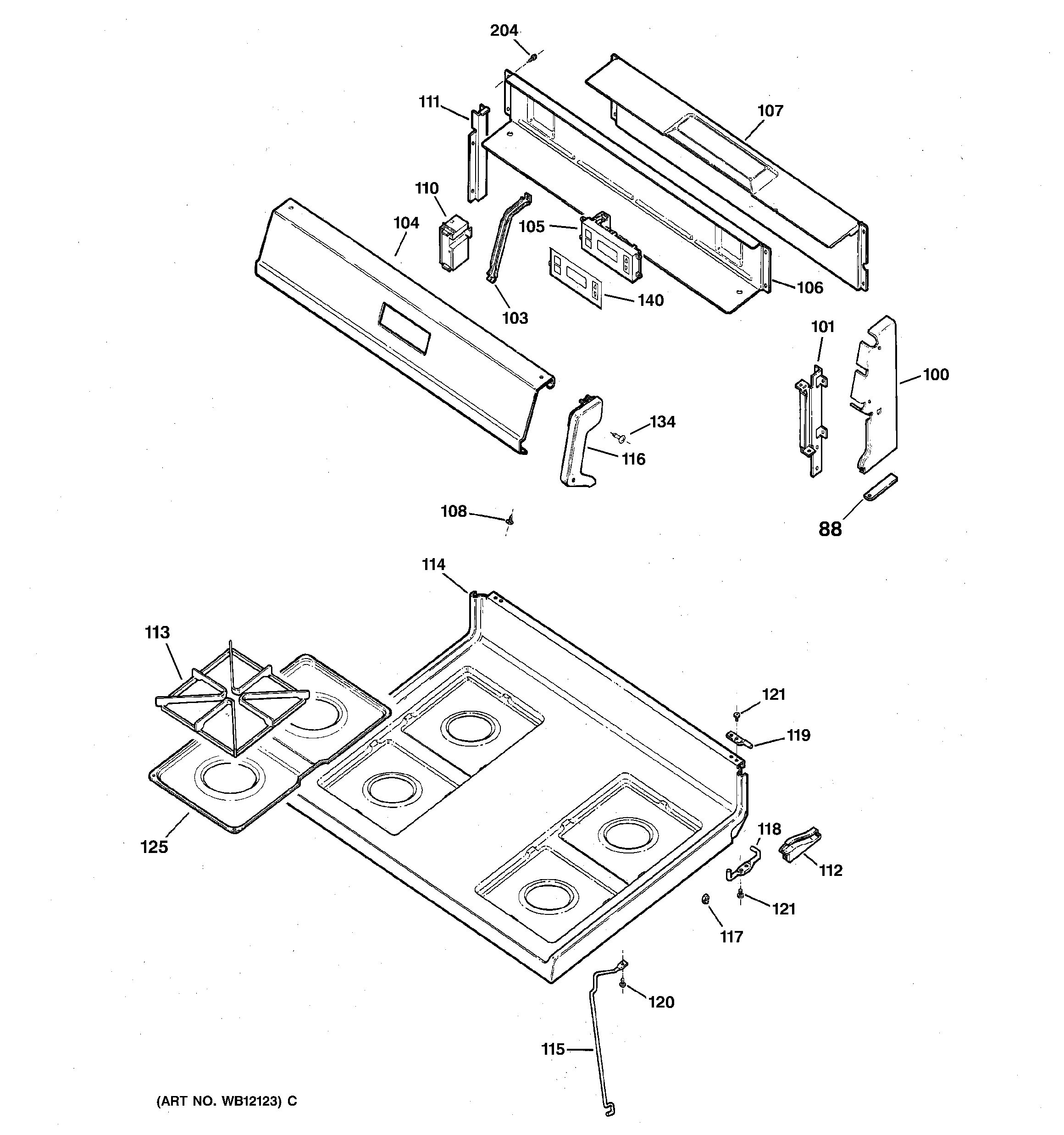

JGBC20BEA1CT CONTROL PANEL & COOKTOP

JGBC20BEA1CT CONTROL PANEL & COOKTOP

Written by

in

JGBC20BEA1CT CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10115
100GEN WB07K10116
101GEN WB37K0015
101GEN WB37K0014
103GEN WB02K10005
104GEN WB36K10059
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
110WB20K5037 GE Oven Spark Module
111GEN WB34K0005
112GEN WB14K0001
112WB14K2 GE Oven Left Handle
113WB31K10026 GE Oven Grate
114GEN WB62K10062
115GEN WB06K0008
116GEN WB07K10004
116WB07K10003 GE Oven Right Black Endcap
117GEN WB02K0017
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
125GEN WB35K10001
134GEN WB01K10003
140GEN WB27K10004
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
