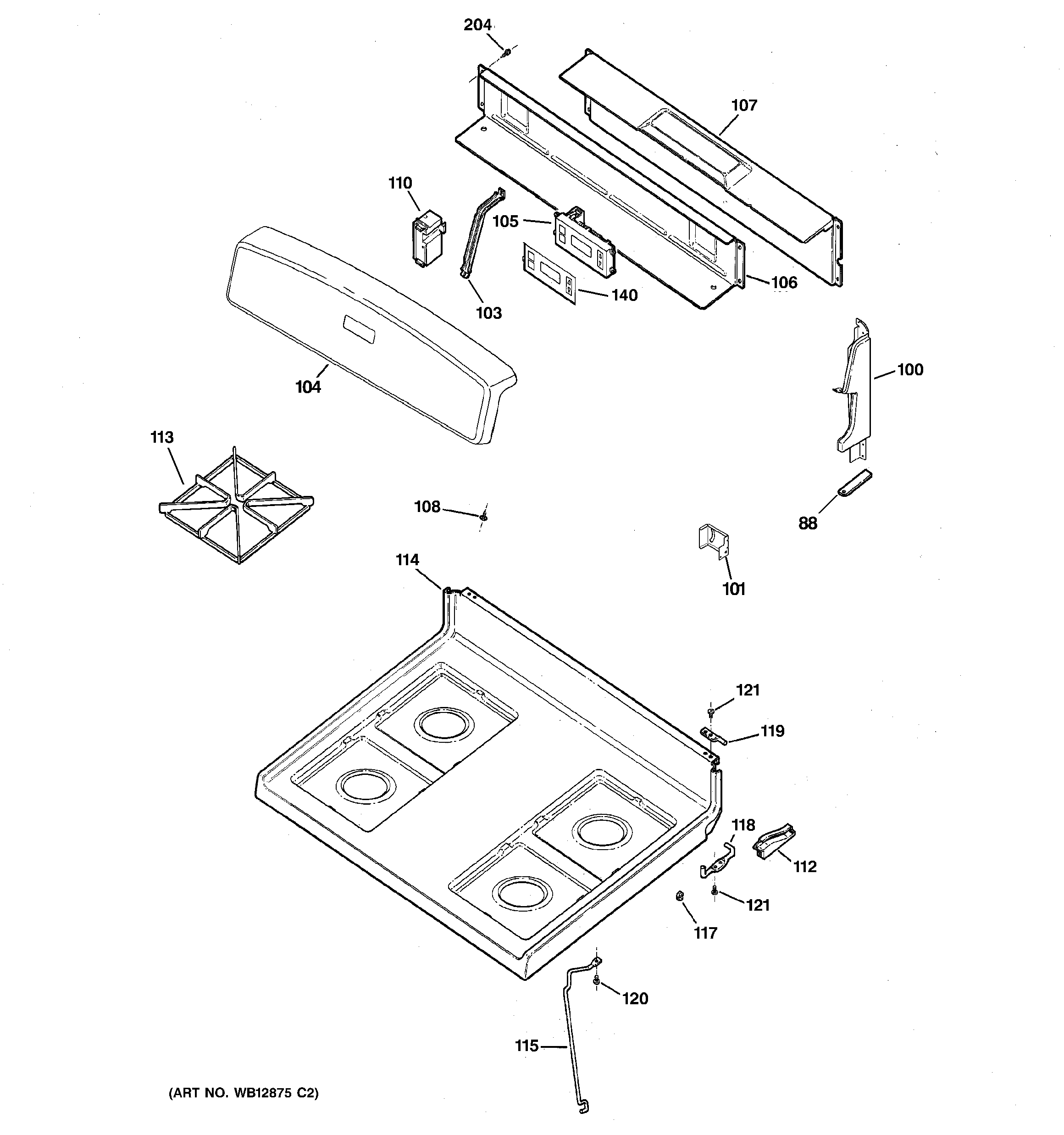

JGBC20BEH2CT CONTROL PANEL & COOKTOP

JGBC20BEH2CT CONTROL PANEL & COOKTOP

Written by

in

JGBC20BEH2CT CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K10099
88GEN WB02K0062
100WB07K10193 GE Oven End Support Gloss Black
100WB07K10194 GE Oven End Support Gloss Black
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103GEN WB02K10072
104TRIM CONTROL (GLOSS BLK)
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108GEN WB01X5716
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB1X5364 GE Oven Mounting Screw
110GEN WB18K10027
110WB13X24321 GE Oven Ignition Module
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113WB31K10026 GE Oven Grate
114GEN WB62K10062
115GEN WB06K0008
117WB14K10004 GE Oven Pin Locator
117GEN WB02K0017
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
140GEN WB27K10103
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
