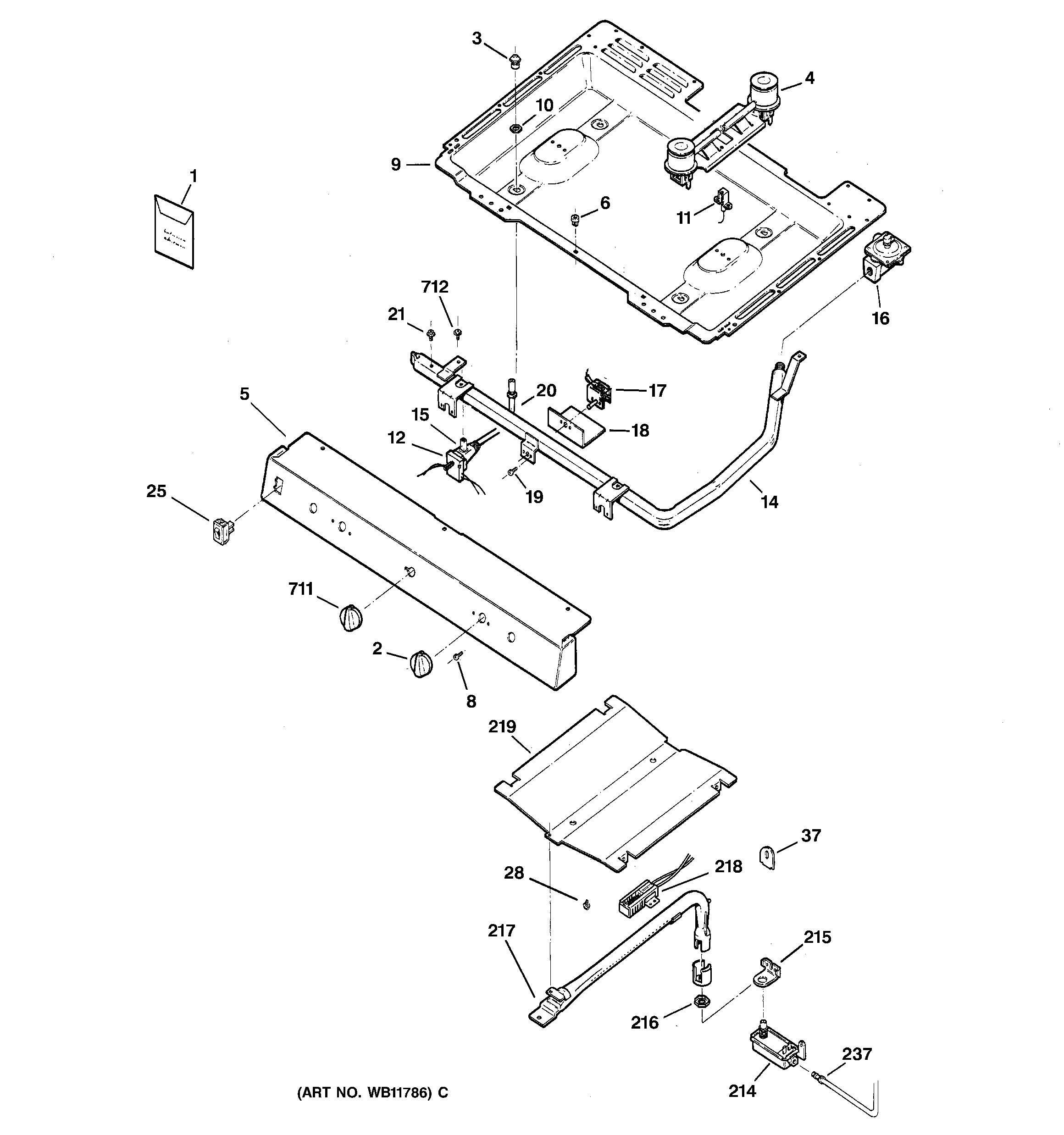

JGBC20CEH1CC GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-21073
1	PM USE & CARE MANUAL
1	WB28K10564 GE Oven Conversion Kit Assembly
2	GEN WB03K10147
3	WB28K10033 GE Oven Orifice Spud
3	WB28K10376 GE Oven Orifice
4	WB16K10026 GE Oven Range Cooktop Double Burner
5	GEN WB36K10331
6	GEN WB02K0009
8	WB01K10002 GE Oven Screw 8-32
9	WB64K10001 GE Oven Burner Box
10	GEN WB01K0004
11	WB18X26988 GE Oven Top Spark Electrode
12	WB24K10017 GE Oven Burner Switch
14	GEN WB28K10111
15	140 BURNER VALVE
16	PRESSURE REGULATOR
17	WB20K8 GE Oven Thermostat Temperature Control
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
20	WB28K10010 GE Oven Front Tube Assembly
20	WB28K10009 GE Oven Burner Tube
20	WB28K10011 GE Oven Rear Burner Tube
20	WB28K10012 GE Oven Rear Burner Tube
21	WB1K83 GE Oven Screw
25	WB24K10005 GE Oven Switch Rocker
28	WB1X1293 GE Oven Screw
37	WB34K14 GE Igniter Cover
214	WB19K31 GE Gas Range Oven Cooktop Safety Valve
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10043 GE Oven Bake Burner Without Igniter
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	WB28K147 GE Oven Tube Valve Supply
711	GEN WB03K10148
712	WB1K37 GE Oven Screw
