JGBC20WEH2WW CONTROL PANEL & COOKTOP

JGBC20WEH2WW CONTROL PANEL & COOKTOP

Written by

in

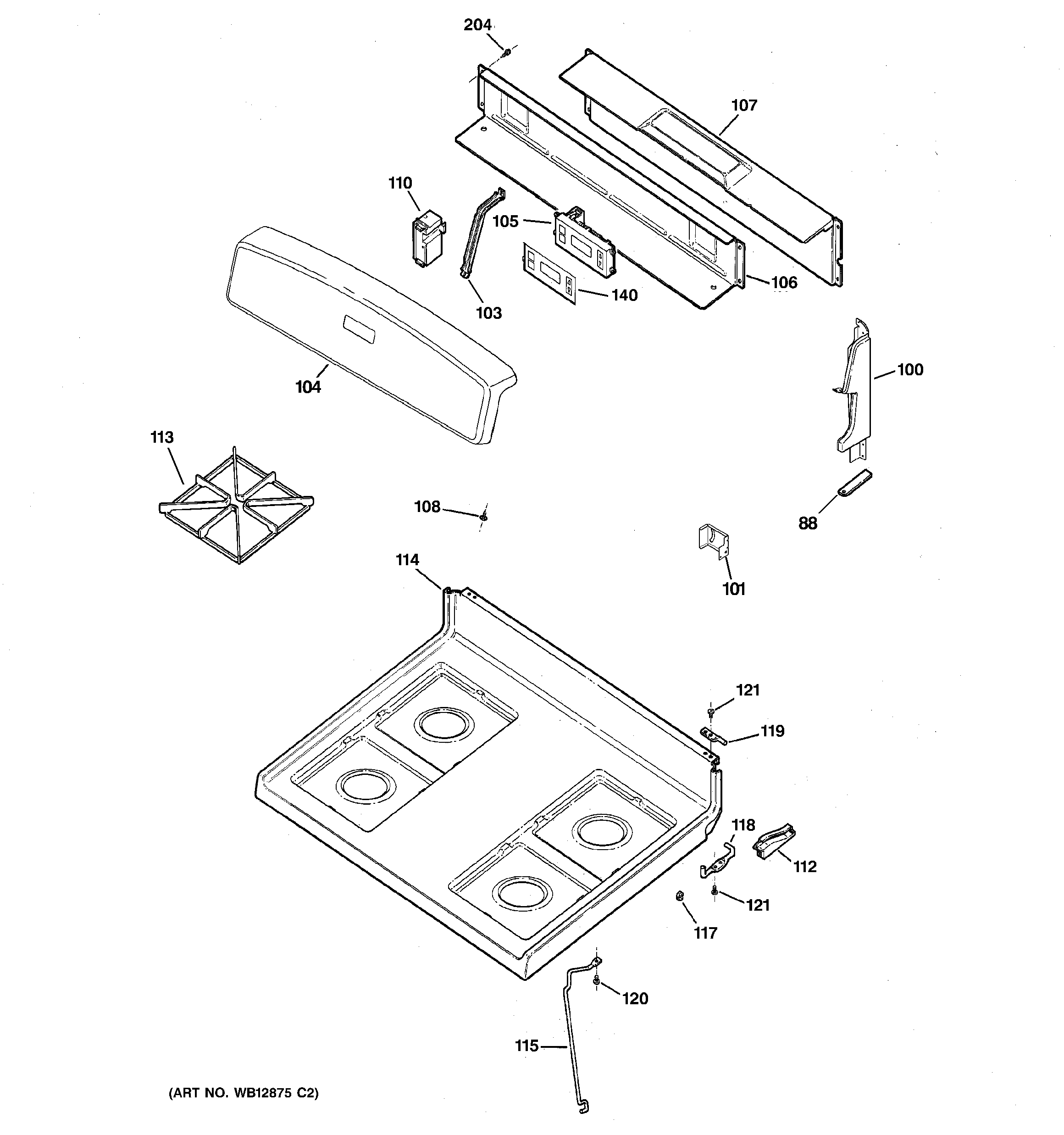

JGBC20WEH2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88GEN WB02K10098
100WB07K10196 GE Oven Left End Support (White)
100WB07K10195 GE Oven Right White End Support
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10072
104GEN WB36K10325
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
108WB01T10016 GE Oven Screw 8-18 AB Hex
108GEN WB01X5874
110WB13X24321 GE Oven Ignition Module
110GEN WB18K10027
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113WB31K10027 GE Oven Cooktop Burner Grate (Gray)
114WB62K10003 GE Oven Cooktop Assembly (White)
115GEN WB06K0008
117WB14K10004 GE Oven Pin Locator
117GEN WB02K0017
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
140GEN WB27K10166
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
