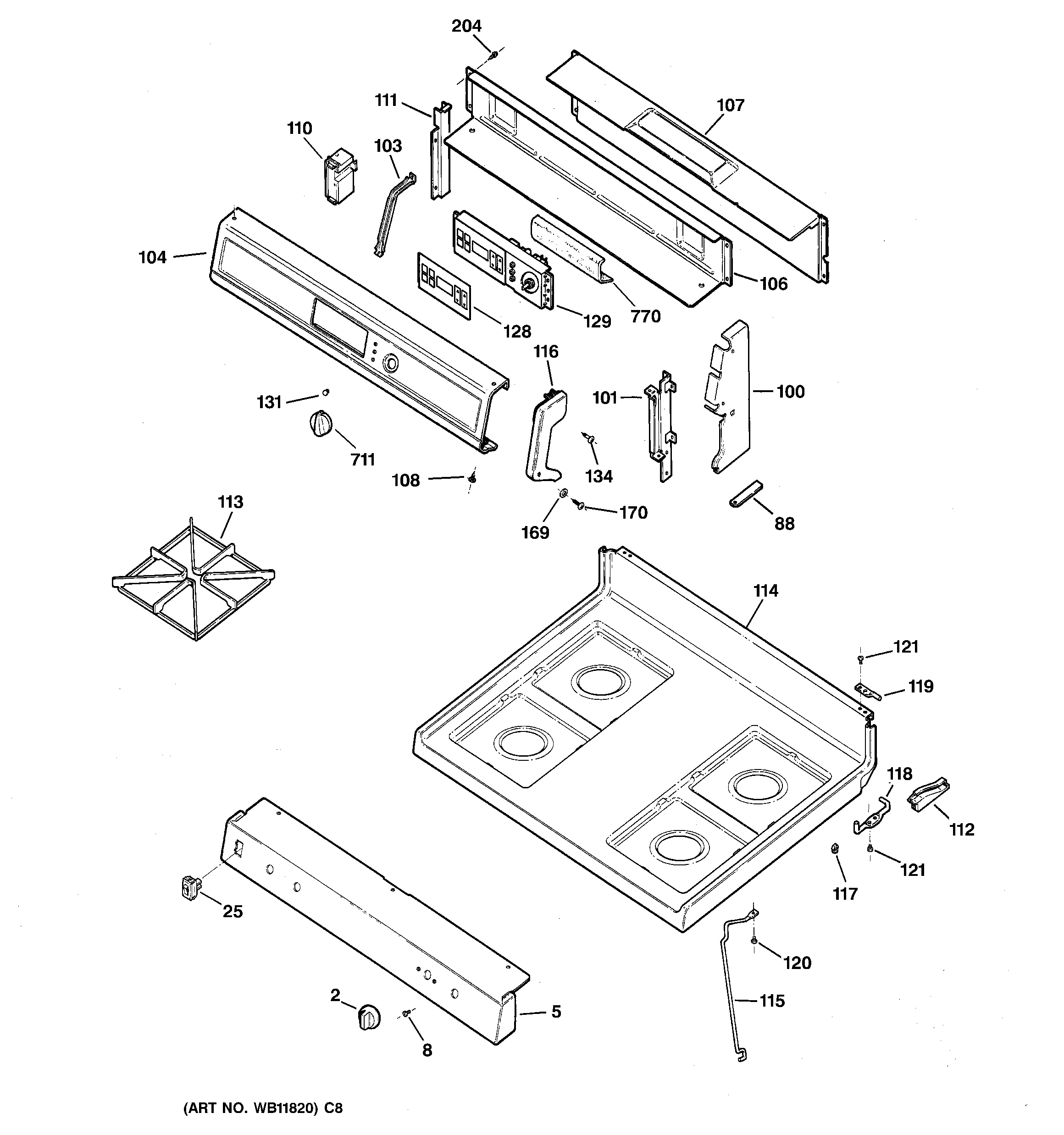

JGBP24BEA7WH CONTROL PANEL & COOKTOP

JGBP24BEA7WH CONTROL PANEL & COOKTOP

Written by

in

JGBP24BEA7WH CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB03K10035 GE Oven Top Burner Knob
5GEN WB36K10103
8WB01K10002 GE Oven Screw 8-32
25GEN WB24K0003
88GEN WB02K0085
100GEN WB07K10002
100GEN WB07K10001
101GEN WB37K0015
101GEN WB37K0014
103GEN WB02K10005
104TRIM CONTROL (BLK)
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10007
108WB1X5364 GE Oven Mounting Screw
110WB20K5037 GE Oven Spark Module
111GEN WB34K0005
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113WB31K10026 GE Oven Grate
114WB62K10003 GE Oven Cooktop Assembly (White)
115GEN WB06K0008
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
117GEN WB02K0017
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
128OVERLAY (BLK)
129GEN WB27K10048
131WB25T10041 GE Oven Lens
134GEN WB01K10003
169GEN WB01K0057
170GEN WB01X5716
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
711GEN WB03K10114
770GEN WB35K10004
