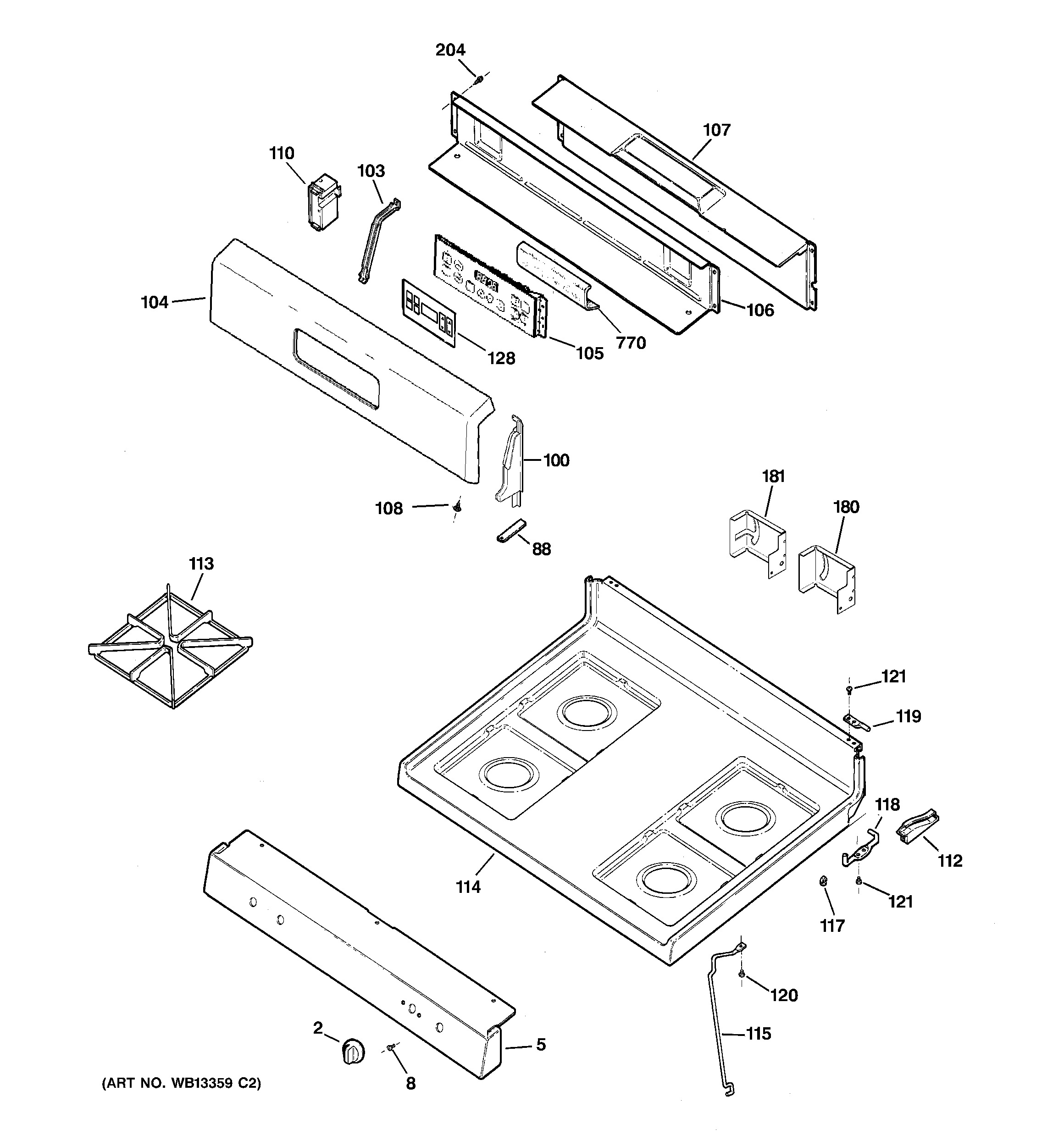

JGBP24BEH2CT CONTROL PANEL & COOKTOP

JGBP24BEH2CT CONTROL PANEL & COOKTOP

Written by

in

JGBP24BEH2CT CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB03K10141 GE Oven Mini Valve Knob
5PANEL MANIFOLD
8WB01K10002 GE Oven Screw 8-32
88GEN WB02K10099
100WB07K10194 GE Oven End Support Gloss Black
100WB07K10193 GE Oven End Support Gloss Black
103WB02K10074 GE Oven Control Bracket
104TRIM CONTROL
105WB27K10354 GE Oven Gas Control
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10007
108WB1X5364 GE Oven Mounting Screw
108WB01T10016 GE Oven Screw 8-18 AB Hex
110WB13X24321 GE Oven Ignition Module
112GEN WB14K0001
112WB14K2 GE Oven Left Handle
113WB31K10026 GE Oven Grate
114GEN WB62K10062
115GEN WB06K0008
117WB14K10004 GE Oven Pin Locator
117GEN WB02K0017
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
128OVERLAY T09-A
180WB37K10003 GE Cooktop Right Bracket
181WB37K10004 GE Cooktop Left Bracket
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
