JGBP24GEH2 30″ GAS FREESTANDING RANGE – ELECTRIC IGNITION

JGBP24GEH2 30″ GAS FREESTANDING RANGE – ELECTRIC IGNITION

Written by

in

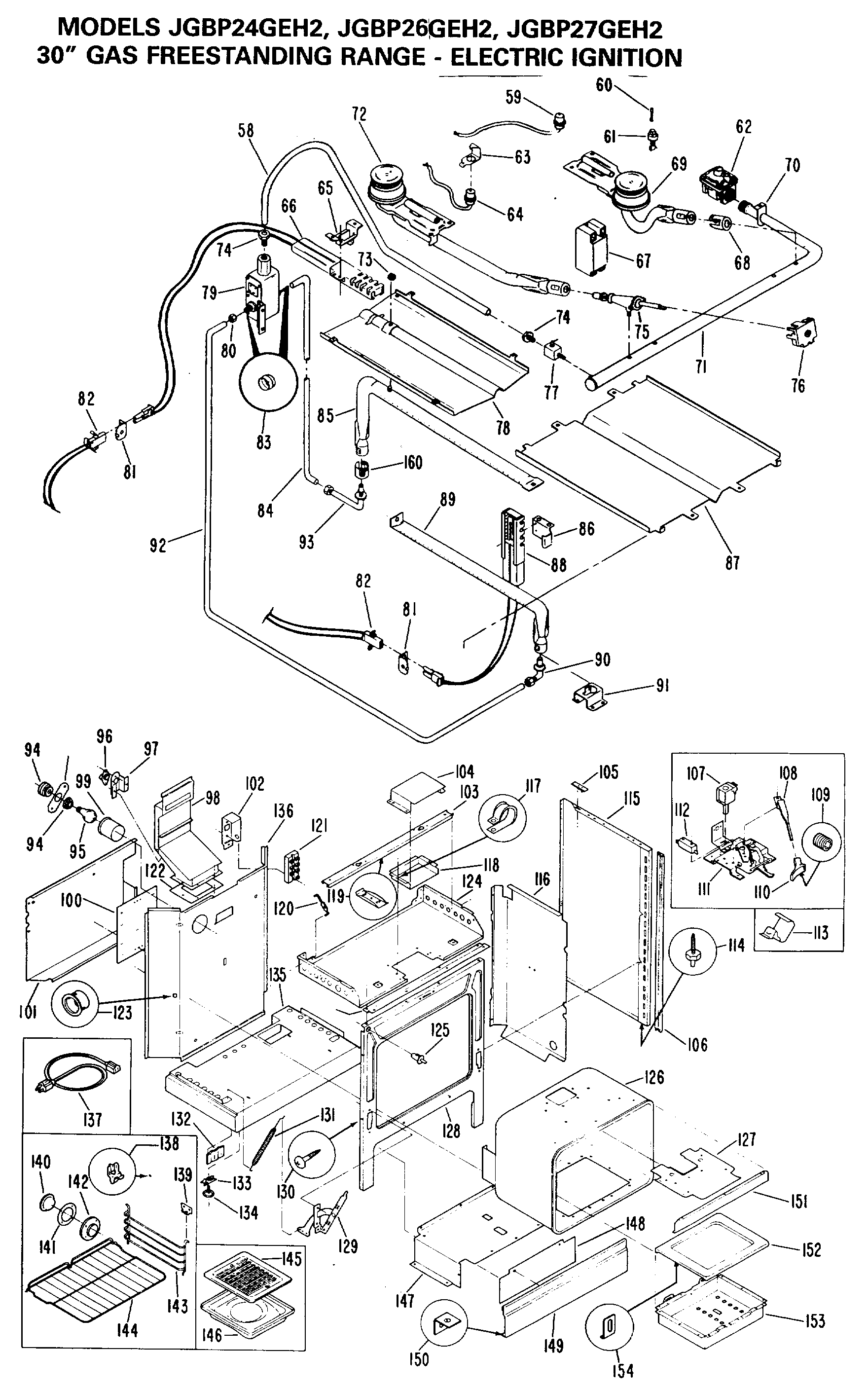

JGBP24GEH2 30″ GAS FREESTANDING RANGE – ELECTRIC IGNITION

Products

PositionProduct
1GEN WB56X1756
3RECEPTACLE-FLUOR LIGHT
4INSULATOR-FLUOR. LT. REC
5BRKT-FLUOR LIGHT
6GEN WB61X0277
7GEN WB02X4276
8SWITCH-SELECTOR
9GEN WB02X4291
9LIGHT INDICATOR AMBER (1
10LIGHT INDICATOR RED (125
10GEN WB02X4289
11BALLAST-FLOUR LIGHT
12THERMOSTAT-OVEN
13BRACKET-CONTROL MTG
14CLOCK-RADIAL-3 STEM
15BUSHING-CONTROL PANEL
16GEN WB02X4278
17KNOB-THERMOSTAT
18KNOB-CLOCK
19KNOB-SELECTOR SWITCH
20GEN WB61X0275
21END CAP
22GLASS BACKGUARD
22GLASS BACKGUARD
23GEN WB02X4287
24BRACKET-BACKSPLASH MOUNT
25GEN WB32X0083
26GEN WB32X0084
27GEN WB07X1363
28GEN WB62X1608
28COOKTOP BRUSHED CHROME JGBP27
28GEN WB62X1607
29TRIM-COOKTOP-LEFT
30GEN WB02X4280
31SWITCH-FLUORESCENT LIGHT
32SWITCH-OVEN LIGHT
33GEN WB01X0808
34BEZEL LIGHT SWITCH
35KNOB-TOP BURNER
36PANEL CONTROL
36GEN WB07X1375
37GEN WB55X0519
38GEN WB01X0687
39*FASTENER-8AU TYPE
40GEN WB01X0705
41SEAL-DOOR
42GLASS PACKAGE (VIS. S/C)
43GEN WB55X0520
44SHIELD-WOOL (VIS.)
44COVER ACCESS ALMOND
45FASTENER SPACER RED
45FASTENER-NYLON SPACER (1
46GEN WB36X0679
47BRACKET-GLASS
48GEN WB02X4283
50PLUG BUTTON-FRONT FRAME
51GLASS-OVEN DOOR (BLACK V
52GEN WB07X1377
53GEN WB15X0208
54GEN WB02X4285
55GEN WB55X0524
56GEN WB55X0523
57GEN WB36X0685
58TUBE VALVE SUPPLY 7/16X26-1/2
59BASE IGNITOR RH
60GEN WB27X0277
60GEN WB01X0809
61GEN WB02X4213
62GEN WB21X0395
63RETAINER IGN. HARNESS
64BASE IGNITOR LH
65GEN WB02X4307
6612400035 Whirlpool Oven Flat Style Igniter Kit
67GEN WB21X0389
68MIXER AIR TOP BURNERS
69GEN WB28X0061
70GEN WB02X4188
71GEN WB02X4298
72GEN WB28X0062
73NUT
74GEN WB01X0713
75GEN WB21X0397
76SWITCH IGNITER
77VALVE MANUAL CUT-OFF
78BAFFLE BROILER BURNER
79GEN WB21X0398
80NUT COMPRESSION 3/8"
81BRACKET CONNECTOR MTG
82GEN WB18X0219
83FERRULE 3/8"
84TUBE BROILER SUPPLY 3/8"X14"
85GEN WB28X0046
86GEN WB02X4310
87GEN WB49X0527
88GEN WB02X4309
89GEN WB28X0047
90MIXER ELBOW (OVEN)
91GEN WB02X4311
92TUBE OVEN SUPPLY 3/8"X54"
93GEN WB02X4304
94GEN WB08X0243
96SWITCH-THERMAL-DOOR LOCK
96SWITCH PRE-HEAT
97GEN WB02X4319
98GEN WB49X0531
99GEN WB02X4317
100GEN WB55X0531
101GEN WB55X0530
102GEN WB02X4211
103SUPPORT TO BURNER
104GEN WB02X4322
105GLIDE MAIN TOP
106TRIM VERTICAL
107GEN WB27X0296
108GEN WB15X0209
109GEN WB01X0734
110GEN WB03X0632
111GEN WB14X0048
112GEN WB02X0338
113GEN WB02X4325
114PIN BODY PANEL GUIDE
115GEN WB56X1696
115GEN WB56X1694
115PANEL SIDE R/H WHITE
115PANEL SIDE R/H ALMOND
116GEN WB55X0533
116GEN WB55X0532
117GEN WB02X4323
118GEN WB02X4324
119GEN WB01X0729
120GEN WB14X0047
121TERMINAL BLOCK
122GEN WB02X4320
123GEN WB02X4316
124GEN WB49X0557
125GEN WB24X0335
127GEN WB55X0525
129HINGE OVEN DOOR RH
129HINGE OVEN DOOR LH
130WZ4X230D GE Screw Package 12
131GEN WB09X0201
132CHANNEL STIFFENER
133FASTENER LEG LEVELER
134LEVELING LEG
135GEN WB49X0552
136GEN WB49X0530
137GEN WB18X0214
138GEN WB02X4329
139GEN WB02X4330
140GEN WB02X4326
141GEN WB02X4327
142GEN WB02X4328
143GEN WB48X0169
144GEN WB48X0170
145WB48X10056 GE Broil Pan Set, Large Porcelain
148GEN WB55X0528
149GEN WB55X0529
150GEN WB02X4314
151GEN WB55X0527
152BOTTOM OVEN
153GEN WB49X0528
154GEN WB02X4313
160GEN WB02X4305
9999GEN 31-0
