JGBP24GEN4 0

JGBP24GEN4 0

Written by

in

JGBP24GEN4 0

Products

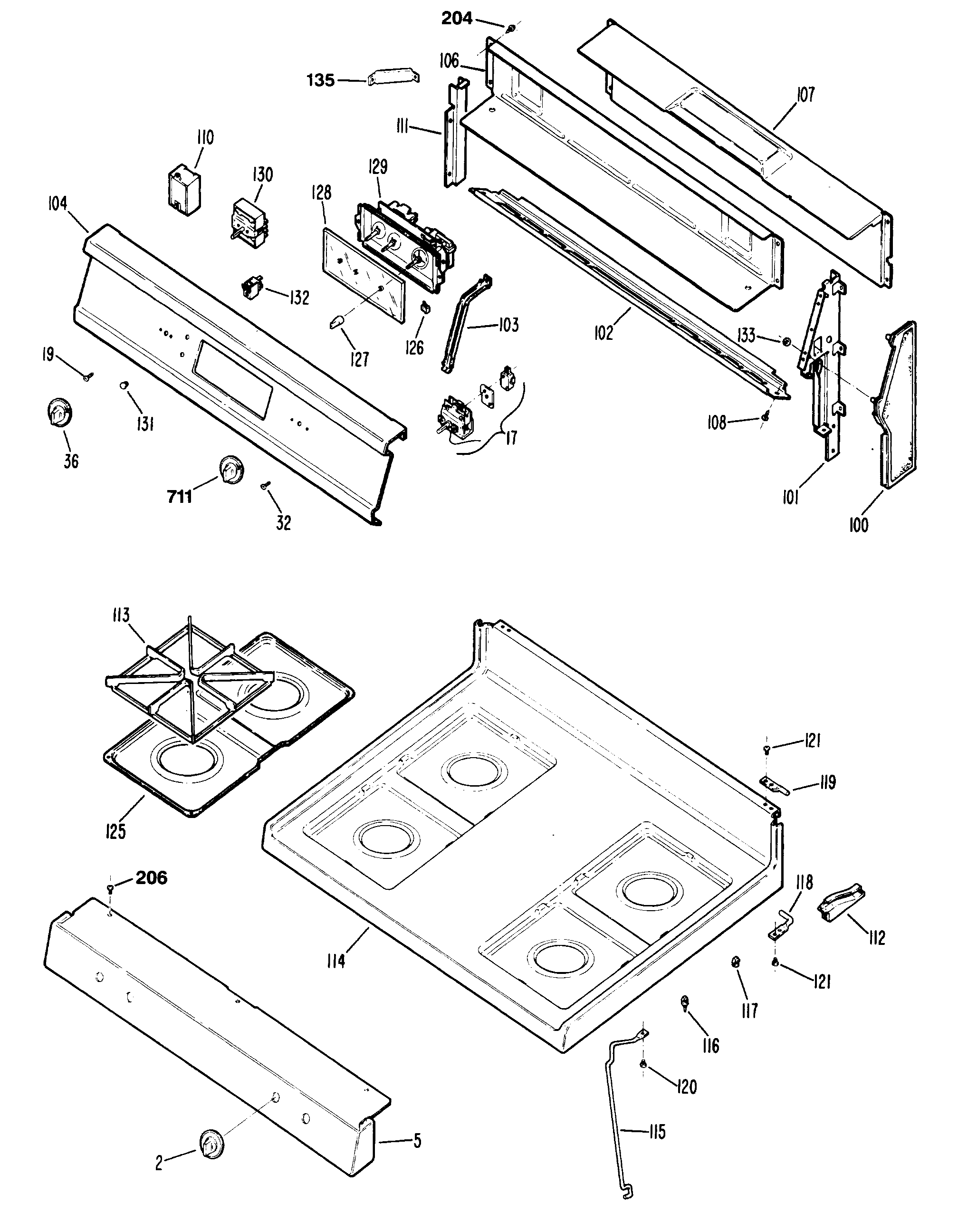

PositionProduct
2GEN WB03K0062
5GEN WB07K0020
17GEN WB20K0003
19WB1K8 GE Oven Thermostat Screw
32GEN WB01K0017
36SELECTOR KNOB (BK)
100COVER END LEFT CHROME
100COVER END RIGHT CHROME
101GEN WB37K0011
101GEN WB37K0012
102GEN WB07K0005
103GEN WB37K0003
104GEN WB07K0121
106GEN WB36K0003
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
110GEN WB13K0002
111GEN WB34K0005
112GEN WB14K0001
112WB14K2 GE Oven Left Handle
113GRATE ASM (BLK)
114GEN WB62K0017
114GEN WB62K0018
115GEN WB06K0001
116GEN WB02K0016
117GEN WB02K0017
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120GEN WB01K0009
121WB1K5119 GE Oven Screw
125PAN UNIT (BLK)
126GEN WB02K0026
127WB3X5699 GE Oven Timer Knob Kit
128GEN WB06K0003
129TIMER ANALOG (BK)
130GEN WB24K0005
131WB25T10041 GE Oven Lens
132LAMP PILOT
133GEN WB01K0022
135GEN WB37K0010
204WZ4X345D GE Screw Package 12 C92
206WR01X10065 GE Screw
214WB19K14 GE Oven Control Valve
235RANGE ONLY 40W 120V APPL BULB
711THERMOSTAT KNOB (BK)
765GEN WB01X5716
32767GEN 31-1353
32767GEN 49-8218
32767WB2K20 GE Oven Bracket Assembly
