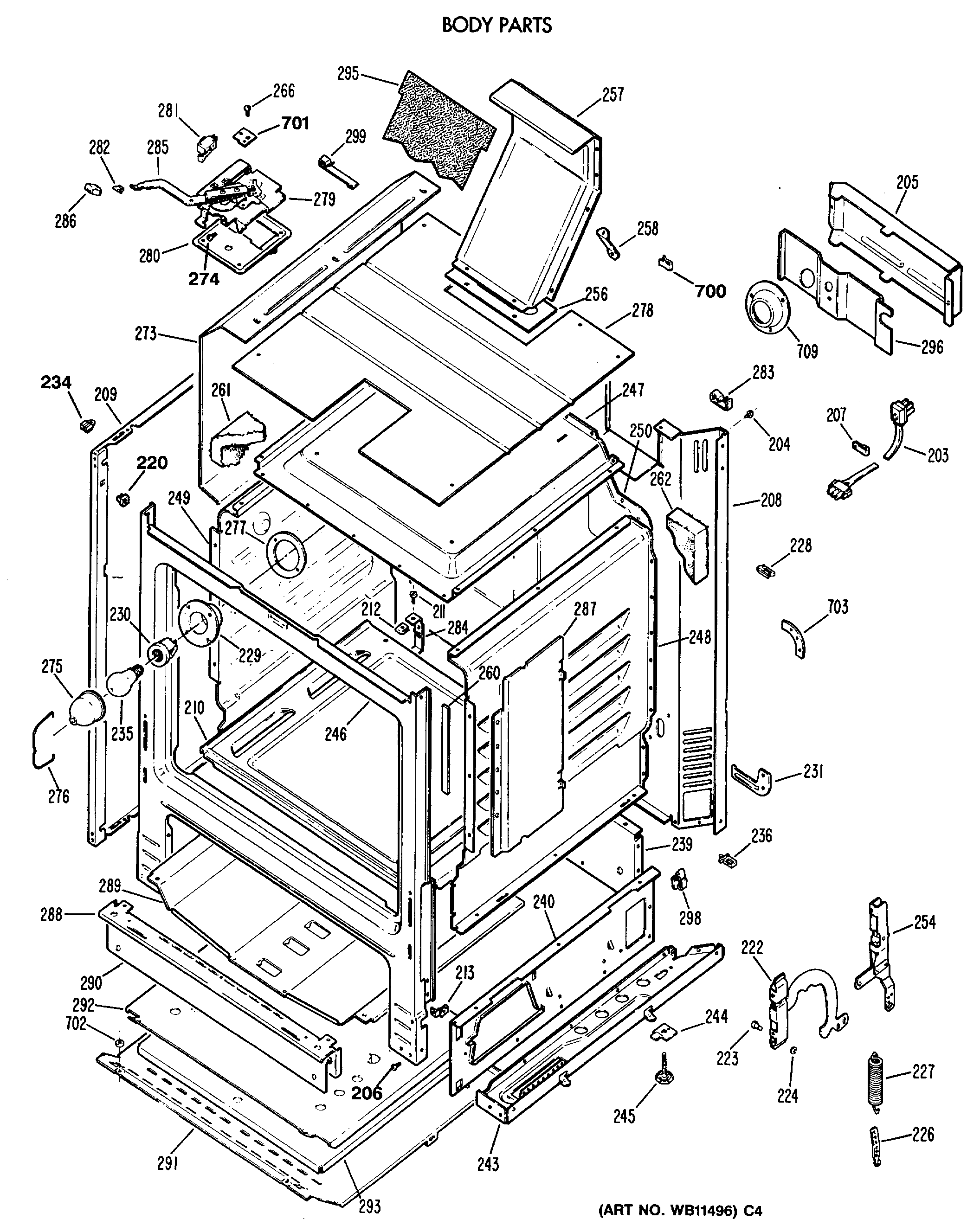

JGBP24GEV3AD BODY PARTS

JGBP24GEV3AD BODY PARTS

Written by

in

JGBP24GEV3AD BODY PARTS

Products

Position	Product
203	WB18K10036 GE Oven Line Cord
204	WZ4X345D GE Screw Package 12 C92
204	WB1K5062 GE Oven Screw
205	GEN WB34K0006
206	WR01X10065 GE Screw
207	WB2K36 GE Oven Clamp Cable
208	WB63K20 GE Ran Back
209	GEN WB63K0046
210	GEN WB53K0035
211	WB1K5 GE Oven Screw 8-18 X B97
212	WB1K2 GE Oven Speednut
213	WB1K3 GE Oven Speed Nut
220	GEN WB02K0008
222	WB10K12 GE Oven Hinge Assembly
223	GEN WB02X6195
224	RING RETAINING
226	GEN WB02K0011
227	GEN WB09K0005
228	GEN WB02X7066
229	GEN WB08K0001
230	GEN WB08K0002
231	GEN WB02K0012
234	GEN WB02K0066
235	RANGE ONLY 40W 120V APPL BULB
236	GEN WB02K0022
239	GEN WB63K0001
240	GEN WB63K0002
240	WB63K3 GE Oven Panel Side Broil
243	GEN WB63K0006
243	GEN WB63K0007
244	GEN WB02K0001
245	GEN WB02X7701
246	GEN WB63K0036
247	GEN WB53K0014
248	GEN WB53K0002
249	GEN WB53K0003
250	GEN WB53K0015
254	GEN WB10K0014
254	GEN WB10K0013
254	GEN WB01K0053
256	GEN WB32K0001
257	GEN WB38K0001
258	WB38K2 GE Range Vent Brace
260	WB32K2 GE Oven Gasket Seal
261	GEN WB35K0007
262	GEN WB35K0008
266	GEN WZ05X0124
266	GEN WB01K0012
273	GEN WB53K0012
273	GEN WB53K0011
274	GEN WB01K0044
275	WB36X192 GE Oven Light Cover
276	WB2K27 GE Oven Bail
277	GEN WB32K0005
278	GEN WB53K0018
279	GEN WB02K0042
280	GEN WB02K0029
281	GEN WB24K0015
282	RETAINER-INSULATION
283	WB02X21679 GE Oven Wire Clip
284	WB2K32 GE Oven Support Bracket
285	GEN WB15K0028
286	GEN WB03K0017
287	WB34K30 GE Radiation Guard
287	GEN WB34K0031
288	BRACE
289	WB34K10086 GE Oven Lower Heat Shield
290	GEN WB34K0012
291	WB63K16 GE Oven Bottom Guard
292	GEN WB63K0017
293	GEN WB63K0018
295	GEN WB38K0005
296	WB34K13 GE Oven B Panel Cover
298	GEN WB02K0037
299	GEN WB02K0038
700	GEN WB02K0034
701	SHIELD SWITCH
702	GEN WB01K0024
703	BRACKET OVEN
709	GEN WB08K0004
