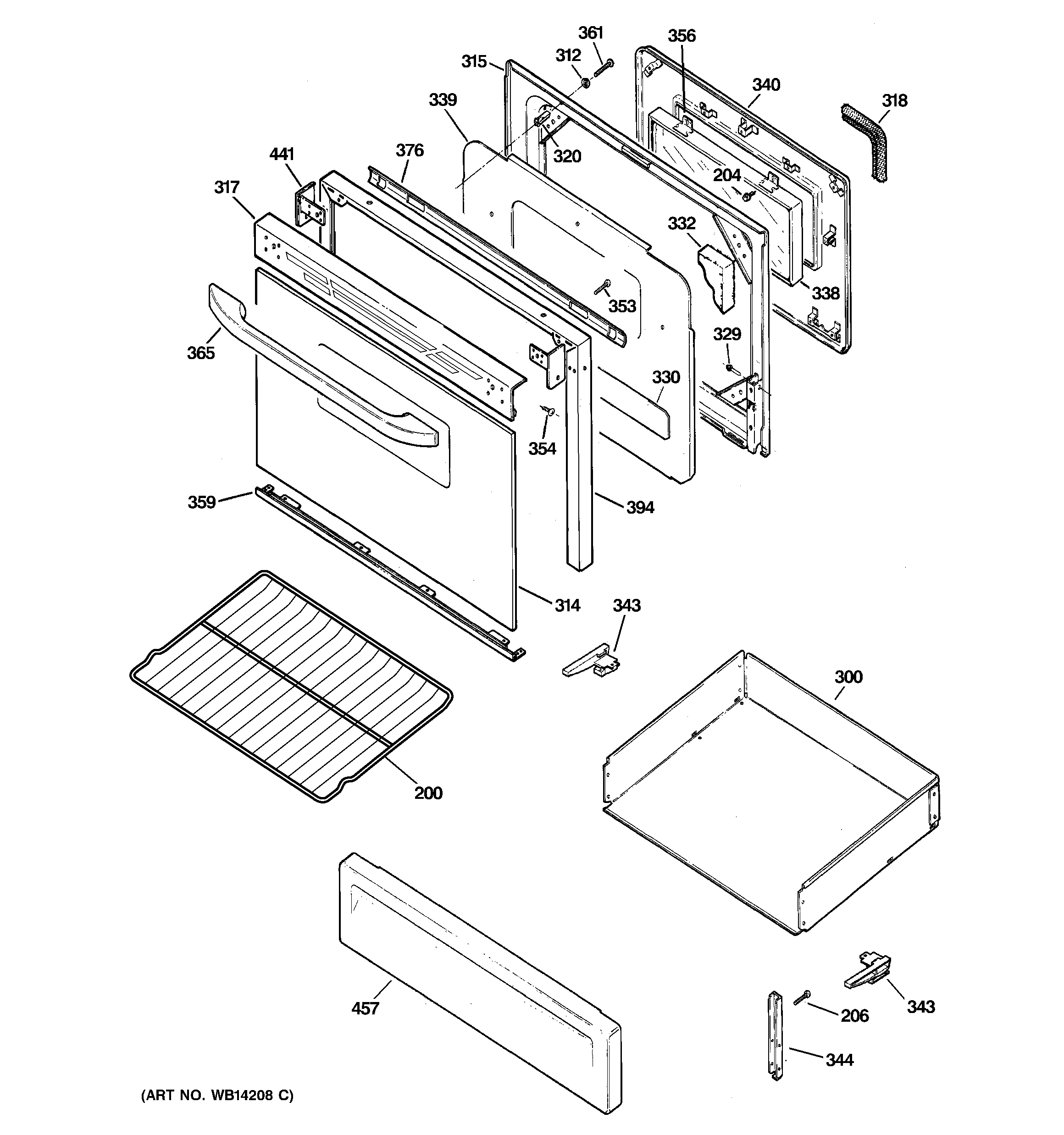

JGBP25DEM3WW DOOR & DRAWER PARTS

JGBP25DEM3WW DOOR & DRAWER PARTS

Written by

in

JGBP25DEM3WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
206WB01K10091 GE Oven Screw
300GEN WB58K10004
312WB1X119D GE Oven Range Washer
314GEN WB57K10120
314GEN WB57K10121
315GEN WB55K10042
317WB35K10041 GE Oven Reflector
317WB7K403 GE Oven Top Door Trim
317GEN WB07K0400
318WB35X29722 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0020
338GEN WB56K0019
338GEN WB34K10088
339GUARD INSULATION
340GEN WB55K0020
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365WB15T10176 GE Oven Handle (White)
365WB15T10161 GE Oven Black Door Handle
376WB35K23 GE Heater Deflector
394GEN WB07K10104
394GEN WB07K10103
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7187
441GEN WB07X7182
441GEN WB07X7181
457WB36K10033 GE Oven Drawer Panel (White)
457WB55K10001 GE Oven Drawer Panel (Black)
