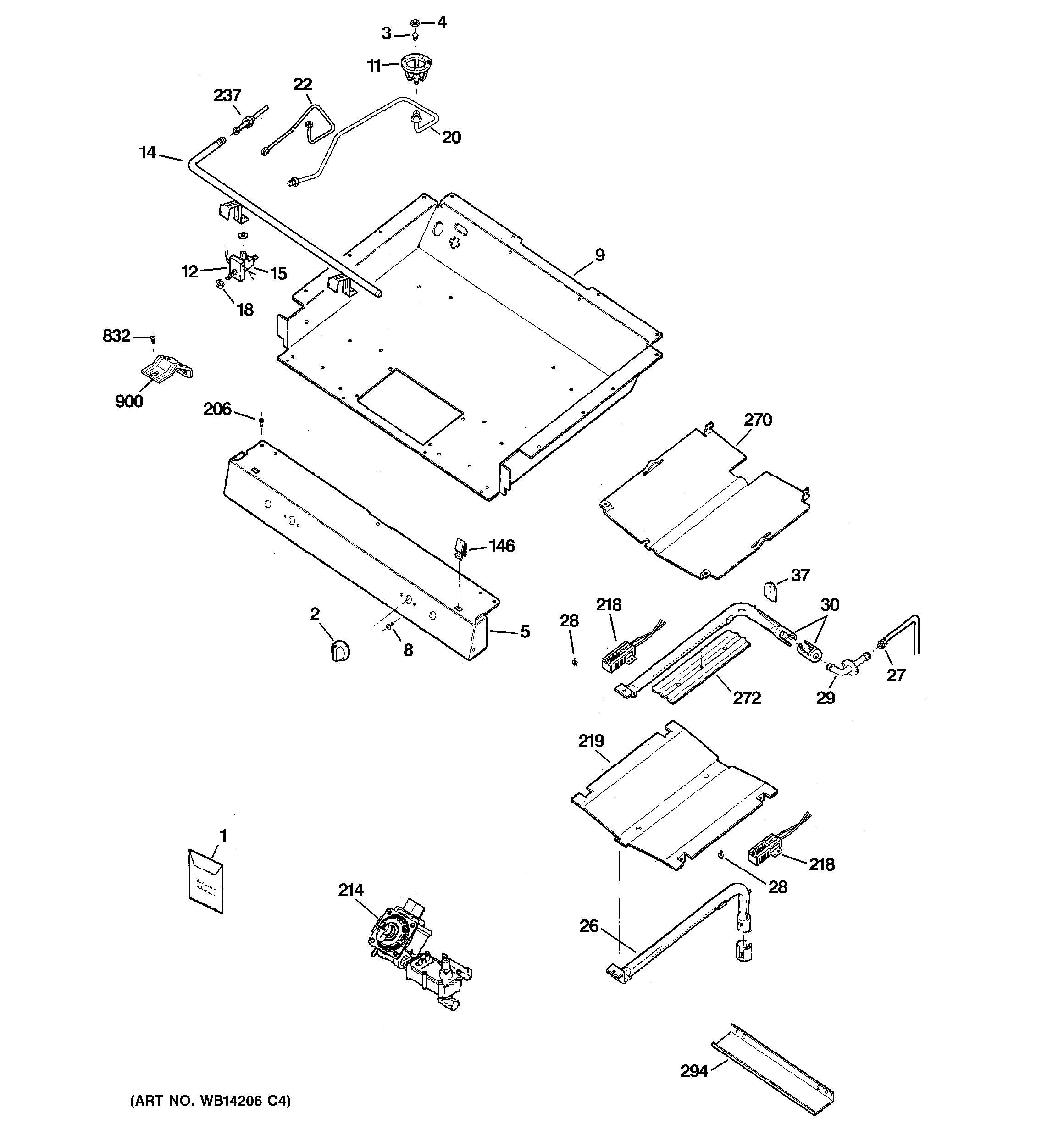

JGBP25DEM5WW GAS & BURNER PARTS

JGBP25DEM5WW GAS & BURNER PARTS

Written by

in

JGBP25DEM5WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85145
1GEN WB28K10555
1GEN 31-21328
1GEN 31-21390
2WB03K10218 GE Oven Control Knob
2WB03K10216 GE Oven Manifold Knob
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10712
5GEN WB36K10710
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
11WB02K10361 GE Oven Orifice Holder
12WB24K10017 GE Oven Burner Switch
14GEN WB28K10572
15GEN WB21K10098
18WB2K24 GE Oven Valve Cover
20GEN WB28K10191
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
22GEN WB28K10192
22WB28K10190 GE Oven Left Front Orifice
26GEN WB16K0022
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10008
37WB34K14 GE Igniter Cover
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10051 GE Oven Control Valve Assembly SIC D.
218WB2X9154 GE Oven Igniter with 8" Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
