JGBP25DEM8BB GAS & BURNER PARTS

JGBP25DEM8BB GAS & BURNER PARTS

Written by

in

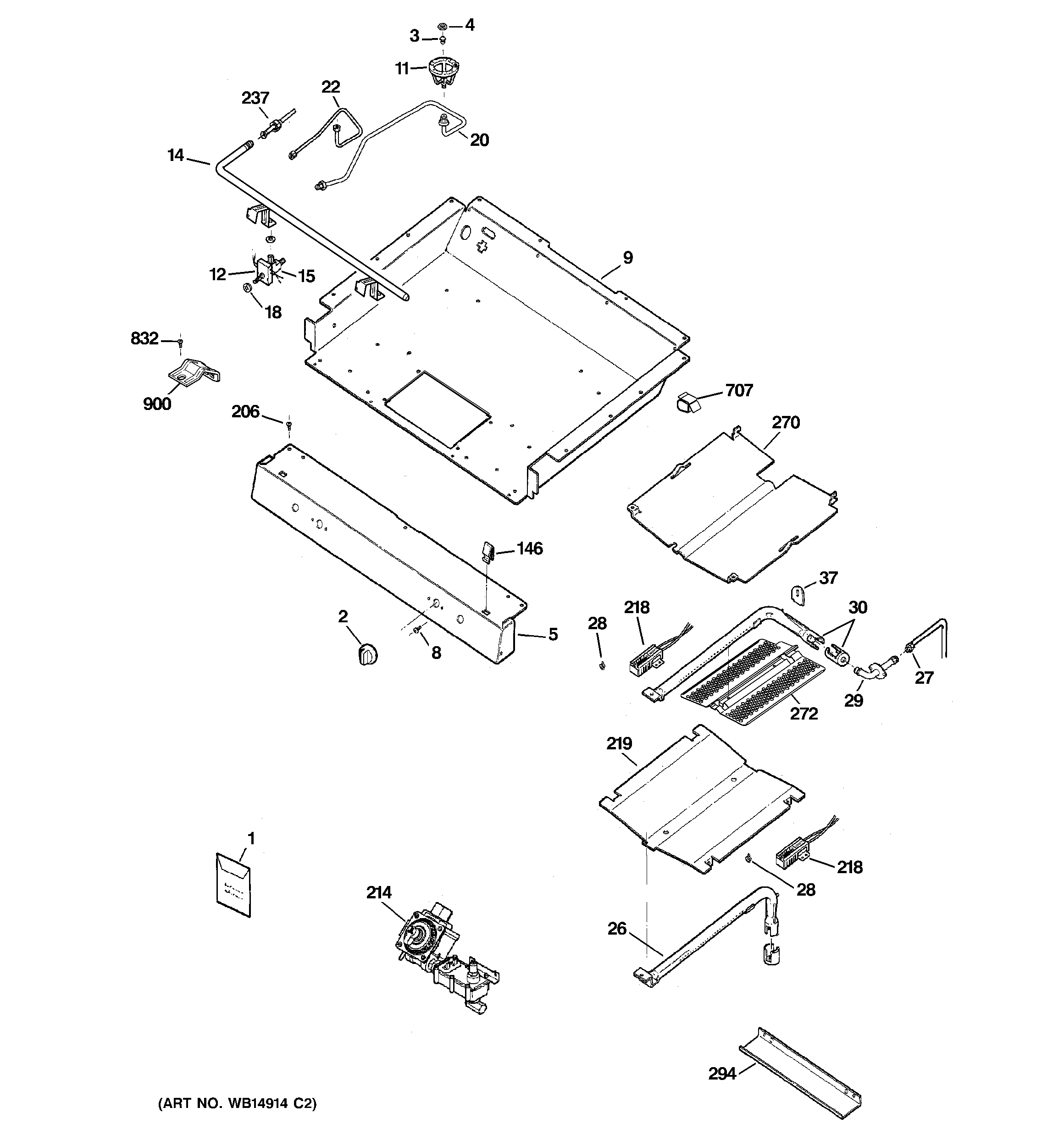

JGBP25DEM8BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21328
1GEN WB28K10555
1GEN 49-85165
1GEN 31-21390
2WB03K10216 GE Oven Manifold Knob
2WB03K10218 GE Oven Control Knob
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10710
5GEN WB36K10712
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10073
14WB28K10457 GE Oven Manifold Pipe
15ROUND VALVE BURNER
18WB2K24 GE Oven Valve Cover
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
20GEN WB28K10191
22GEN WB28K10192
22WB28K10190 GE Oven Left Front Orifice
26GEN WB16K0022
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10069
37WB34K14 GE Igniter Cover
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214GEN WB19K10057
218WB2X9154 GE Oven Igniter with 8" Leads
219OVEN DEFLECTOR
237GEN WB28K10587
237WB28X25364 GE Oven Manifold Supply Tube
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294GEN WB63K10040
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10263 GE Oven Round Valve Bracket
