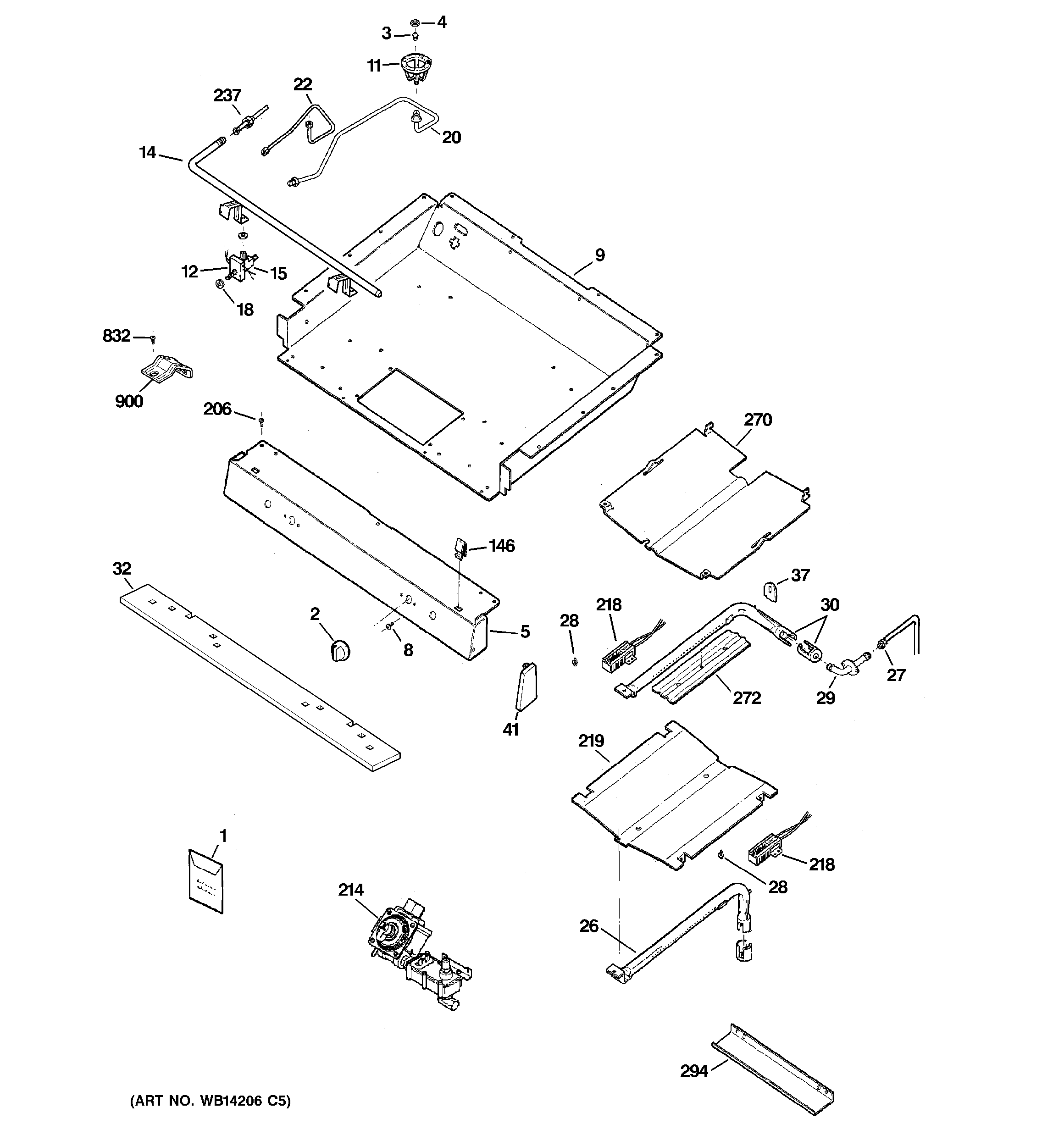

JGBP25SEN5SS GAS & BURNER PARTS

JGBP25SEN5SS GAS & BURNER PARTS

Written by

in

JGBP25SEN5SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21390
1GEN WB28K10555
1GEN 31-21328
1GEN 49-85165
2WB03K10216 GE Oven Manifold Knob
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10603
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
11WB02K10361 GE Oven Orifice Holder
12WB18X31208 GE Oven Burner Box Harness
14WB28K10457 GE Oven Manifold Pipe
15ROUND VALVE BURNER
18WB2K24 GE Oven Valve Cover
20GEN WB28K10191
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
22WB28K10190 GE Oven Left Front Orifice
22GEN WB28K10192
26GEN WB16K0022
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10008
32INSULATION BURNER BOX
37WB34K14 GE Igniter Cover
41GEN WB07K10263
41GEN WB07K10262
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214GEN WB19K10057
218WB2X9154 GE Oven Igniter with 8" Leads
219OVEN DEFLECTOR
237WB28X25364 GE Oven Manifold Supply Tube
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10263 GE Oven Round Valve Bracket
