JGBP25SEN6SS CONTROL PANEL & COOKTOP

JGBP25SEN6SS CONTROL PANEL & COOKTOP

Written by

in

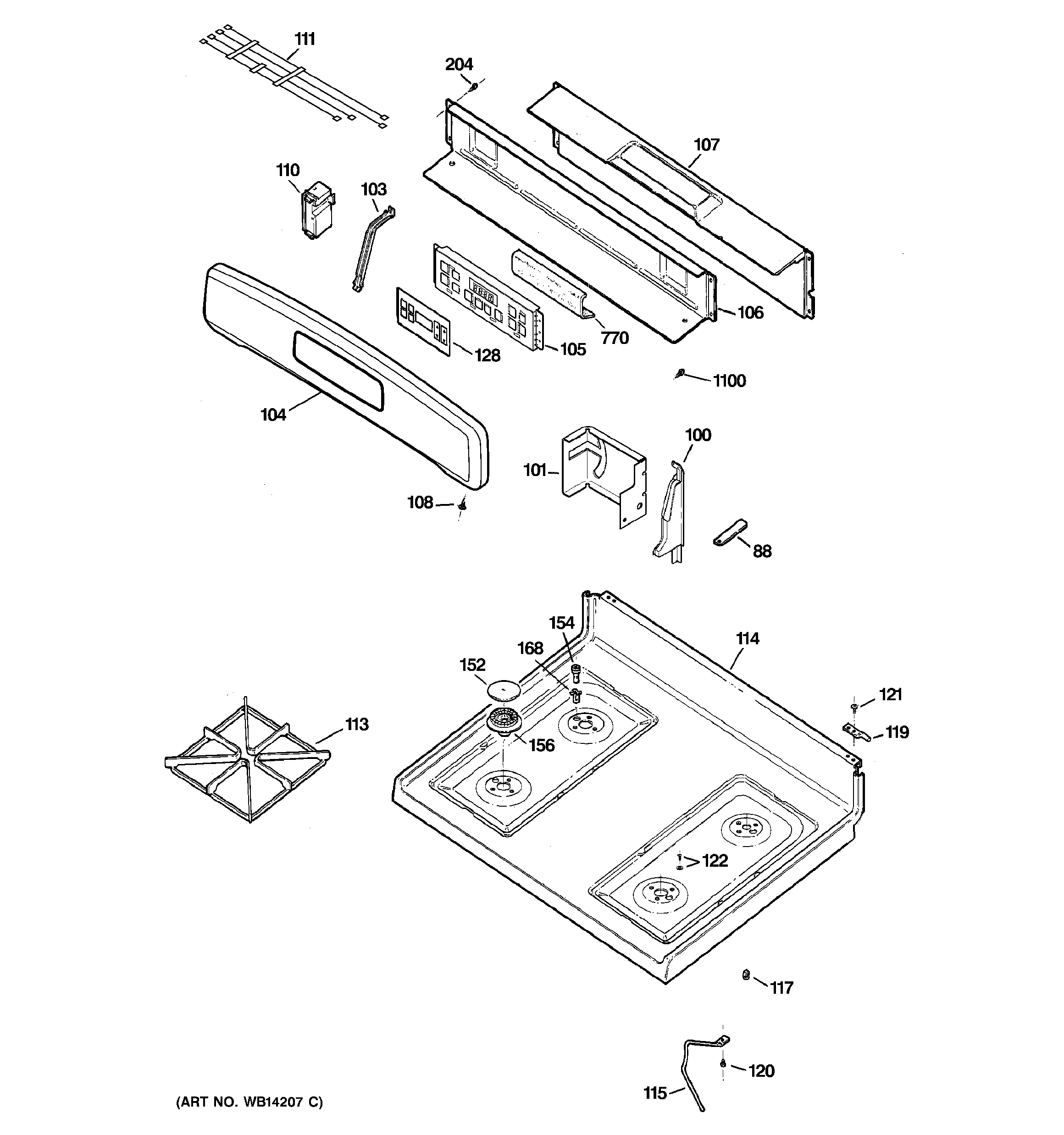

JGBP25SEN6SS CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10260
100GEN WB07K10261
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10155
104GEN WB36K10715
105WB27K10354 GE Oven Gas Control
106GEN WB34K10093
107GEN WB34K10094
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
110WB13K10029 GE Oven Spark Module
111WB18K10035 GE Oven Wire Harness
113WB31K10033 GE Oven Burner Grate
114GEN WB62K10063
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
128WB27K10412 GE Oven Overlay T09-A
152WB29K10001 GE Oven Burner Cap
154GEN WB13K10021
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
