JGBP25WEL2WW GAS & BURNER PARTS

Products

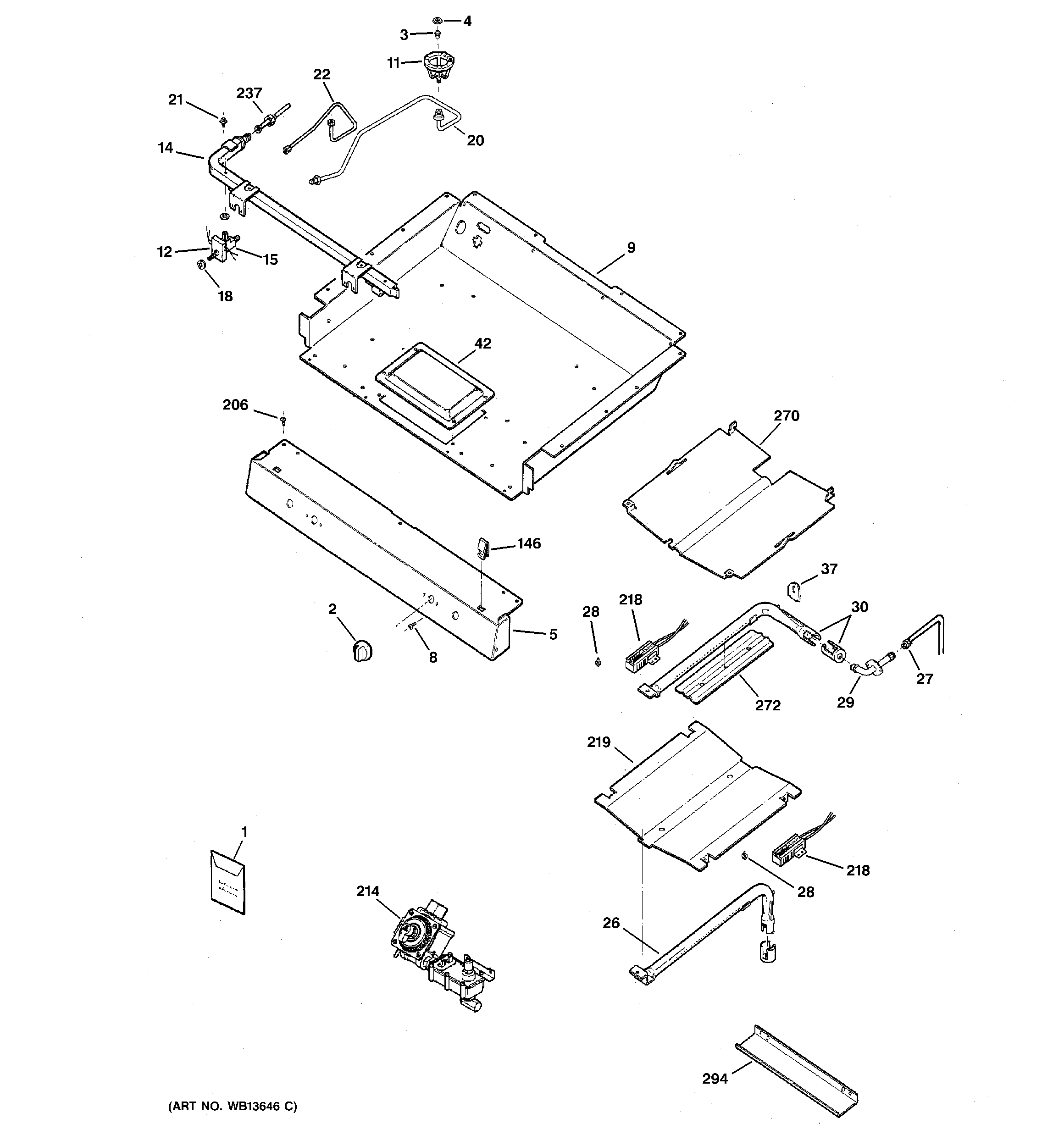

Position	Product
1	GEN 49-85109
1	GEN 31-21217
1	GEN WB28K10162
2	WB03K10143 GE Oven Burner Knob
3	WB28K10023 GE Oven Orifice
4	WB01K10037 GE Oven Economic Nut
5	GEN WB36K10354
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K10037
11	WB02K10361 GE Oven Orifice Holder
12	WB24K10017 GE Oven Burner Switch
14	GEN WB28K10028
15	140 BURNER VALVE
18	WB2K24 GE Oven Valve Cover
20	WB28K10188 GE Oven Rear Orifice H R 150N 9500
20	GEN WB28K10191
21	WB01K10066 GE Oven Screw 8 HD 10-32
22	WB28K10190 GE Oven Left Front Orifice
22	GEN WB28K10192
26	GEN WB16K0022
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	GEN WB28K10310
30	GEN WB16K10008
37	WB34K14 GE Igniter Cover
42	GEN WB63K0022
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K10051 GE Oven Control Valve Assembly SIC D.
218	WB2X9154 GE Oven Igniter with 8" Leads
219	OVEN DEFLECTOR
237	WB28X24772 GE Oven Gas Tube Connector
270	DEFLECTOR
272	WB34K10 GE Oven Broil Shield
294	GEN WB63K10040
