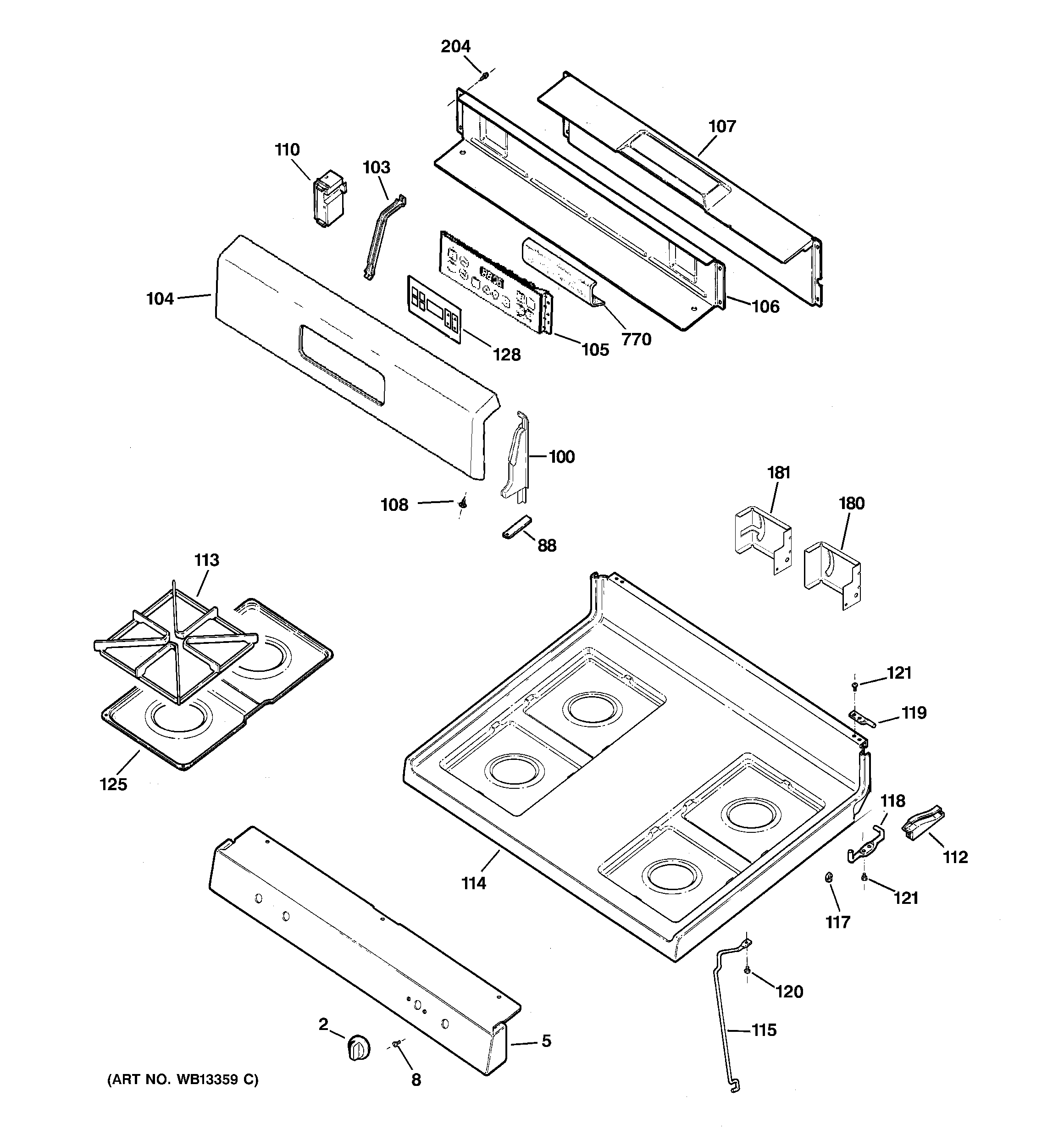

JGBP26CEH5CC CONTROL PANEL & COOKTOP

JGBP26CEH5CC CONTROL PANEL & COOKTOP

Written by

in

JGBP26CEH5CC CONTROL PANEL & COOKTOP

Products

PositionProduct
2GEN WB03K10147
5GEN WB36K10341
8WB01K10002 GE Oven Screw 8-32
88GEN WB02K0062
88GEN WB02K10098
100GEN WB07K10198
100GEN WB07K10197
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10342
105WB27K10355 GE Oven Electronic Control Board
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10007
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB1X5364 GE Oven Mounting Screw
110WB13X24321 GE Oven Ignition Module
110GEN WB18K10027
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113WB31X36767 GE Taupe Grate Replacement Kit
114GEN WB62K10062
115GEN WB06K0008
117GEN WB02K0017
117WB14K10004 GE Oven Pin Locator
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
125GEN WB35K10002
128GEN WB27K10171
180WB37K10004 GE Cooktop Left Bracket
181WB37K10003 GE Cooktop Right Bracket
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
