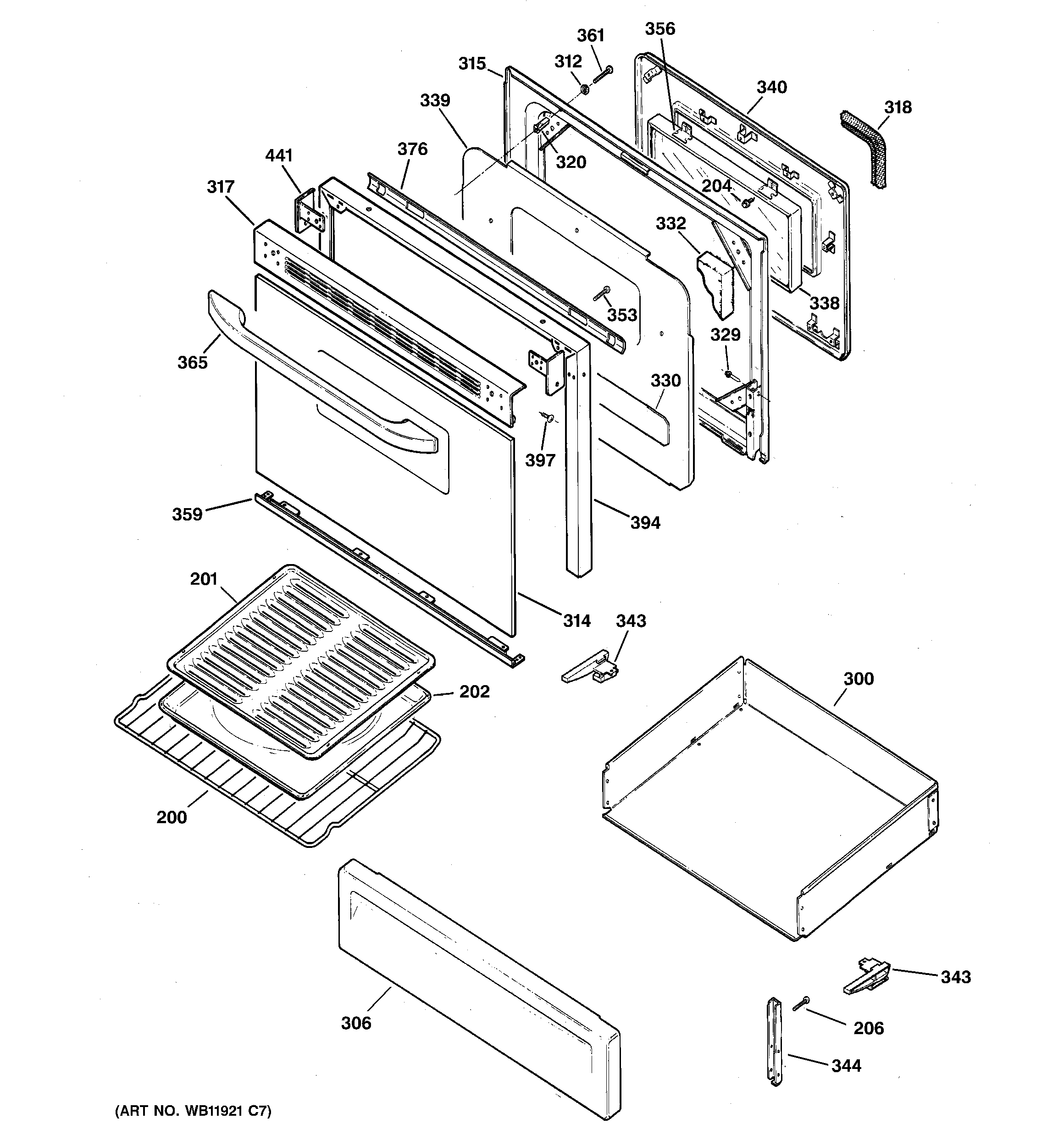

JGBP26CEH5CC DOOR & DRAWER PARTS

JGBP26CEH5CC DOOR & DRAWER PARTS

Written by

in

JGBP26CEH5CC DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
206WR01X10065 GE Screw
300GEN WB58K10004
306GEN WB36K10164
312WB1X119D GE Oven Range Washer
314GEN WB57K10087
315GEN WB55K0025
317WB36K10212 GE Top Door Trim (Bisque)
318WB4K1 GE Oven Gasket Door
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0020
338GEN WB34K10088
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB1K67 GE Oven Screw 8-22
356GEN WB02K0056
359WB07K10269 GE Oven Bottom Trim Assembly
361GEN WB01K0069
365HANDLE ASM (BQ)
376WB35K23 GE Heater Deflector
394GEN WB07K10130
394GEN WB35K0033
397WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
441GEN WB07K10128
441GEN WB07K10129
