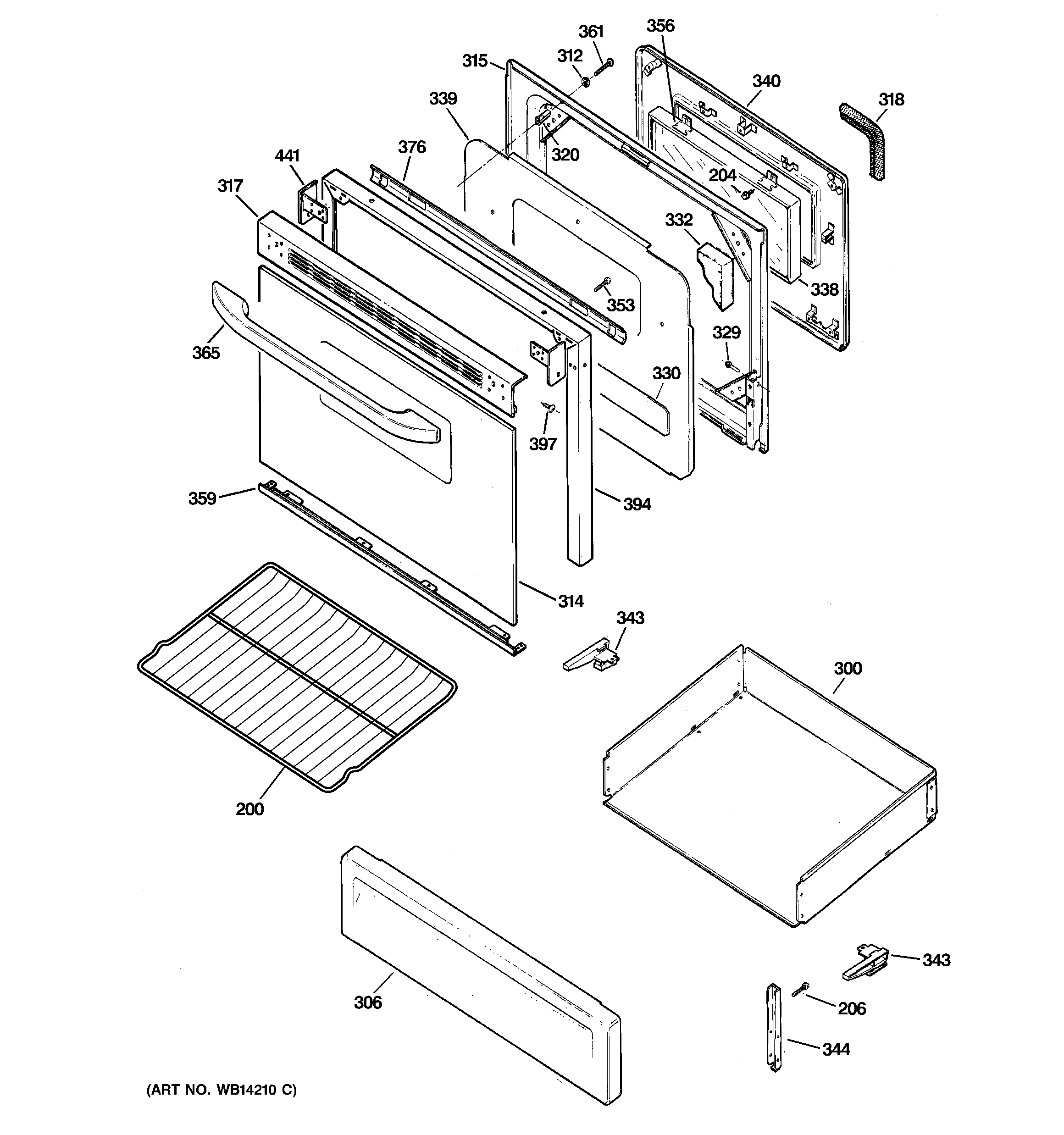

JGBP26DEM1CC DOOR & DRAWER PARTS

JGBP26DEM1CC DOOR & DRAWER PARTS

Written by

in

JGBP26DEM1CC DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
206WR01X10065 GE Screw
300GEN WB58K10004
306GEN WB36K10164
312WB1X119D GE Oven Range Washer
314GEN WB57K10122
315GEN WB55K10042
317WB36K10212 GE Top Door Trim (Bisque)
318WB35X29722 GE Oven Door Gasket Assembly
320GEN WB02K10159
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0020
338GEN WB56K0019
338GEN WB34K10088
339GUARD INSULATION
340GEN WB55K0020
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
356GEN WB02K0056
359WB07K10269 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365GEN WB15T10165
376WB35K23 GE Heater Deflector
394GEN WB07K10280
394WB35K10041 GE Oven Reflector
397WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
441GEN WB07K10128
441GEN WB07K10129
