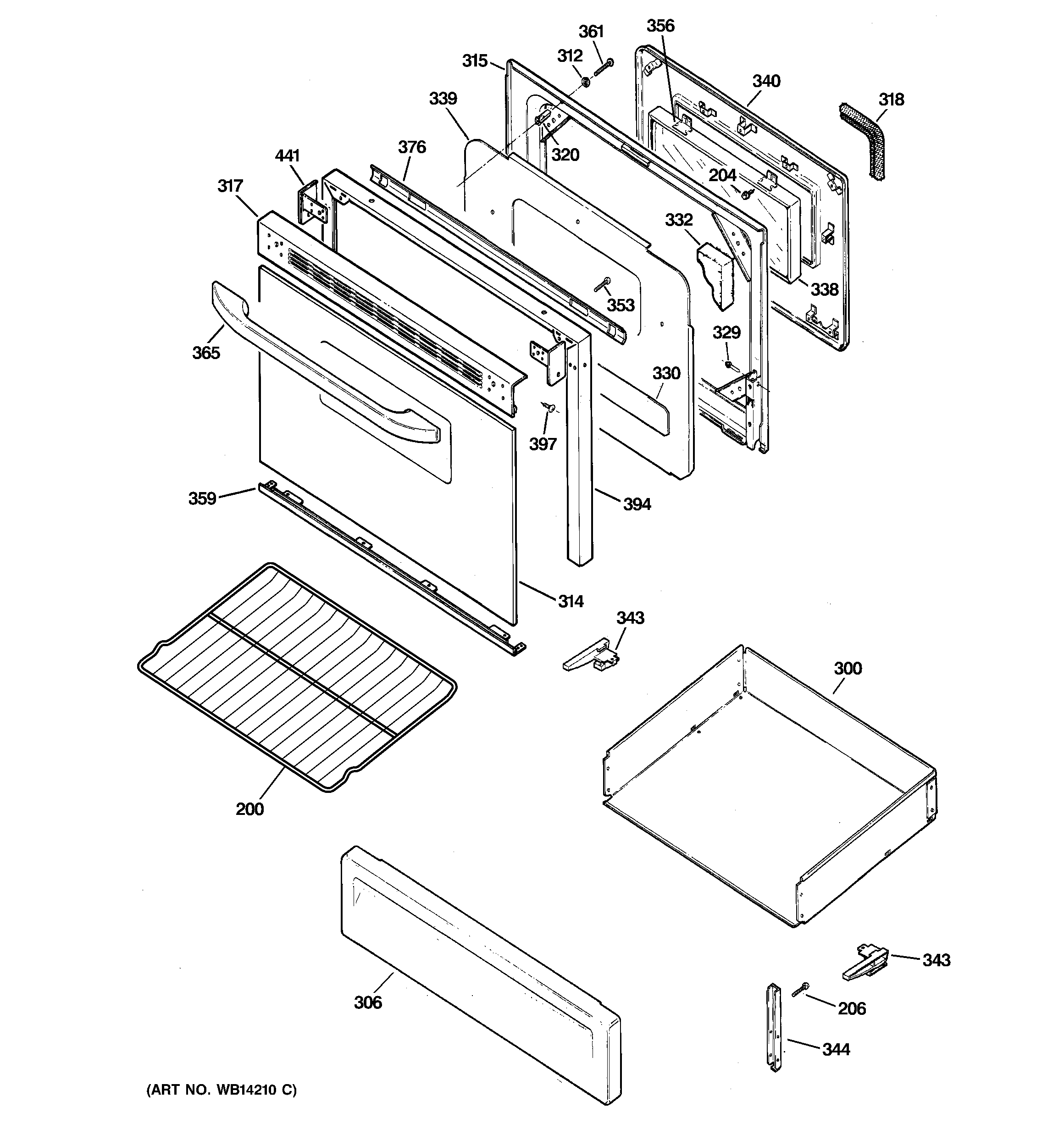

JGBP26DEM4WW DOOR & DRAWER PARTS

JGBP26DEM4WW DOOR & DRAWER PARTS

Written by

in

JGBP26DEM4WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
206WB01K10091 GE Oven Screw
300GEN WB58K10004
306GEN WB36K10164
306WB36K10033 GE Oven Drawer Panel (White)
312WB1X119D GE Oven Range Washer
314GEN WB57K10120
314GEN WB57K10122
315GEN WB55K10042
317WB35K10041 GE Oven Reflector
317GEN WB07K0400
317WB36K10212 GE Top Door Trim (Bisque)
318GEN WB04K10029
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0020
332GEN WB35K10153
338GEN WB34K10088
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
356GEN WB02K0056
359WB07K10269 GE Oven Bottom Trim Assembly
359TRIM BOTTOM ASM
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365GEN WB15T10164
365WB15T10176 GE Oven Handle (White)
376WB35K23 GE Heater Deflector
394GEN WB07K10103
394GEN WB07K10130
397WB1K66 GE Screw
397WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
441GEN WB07K10129
441GEN WB07K10128
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7187
