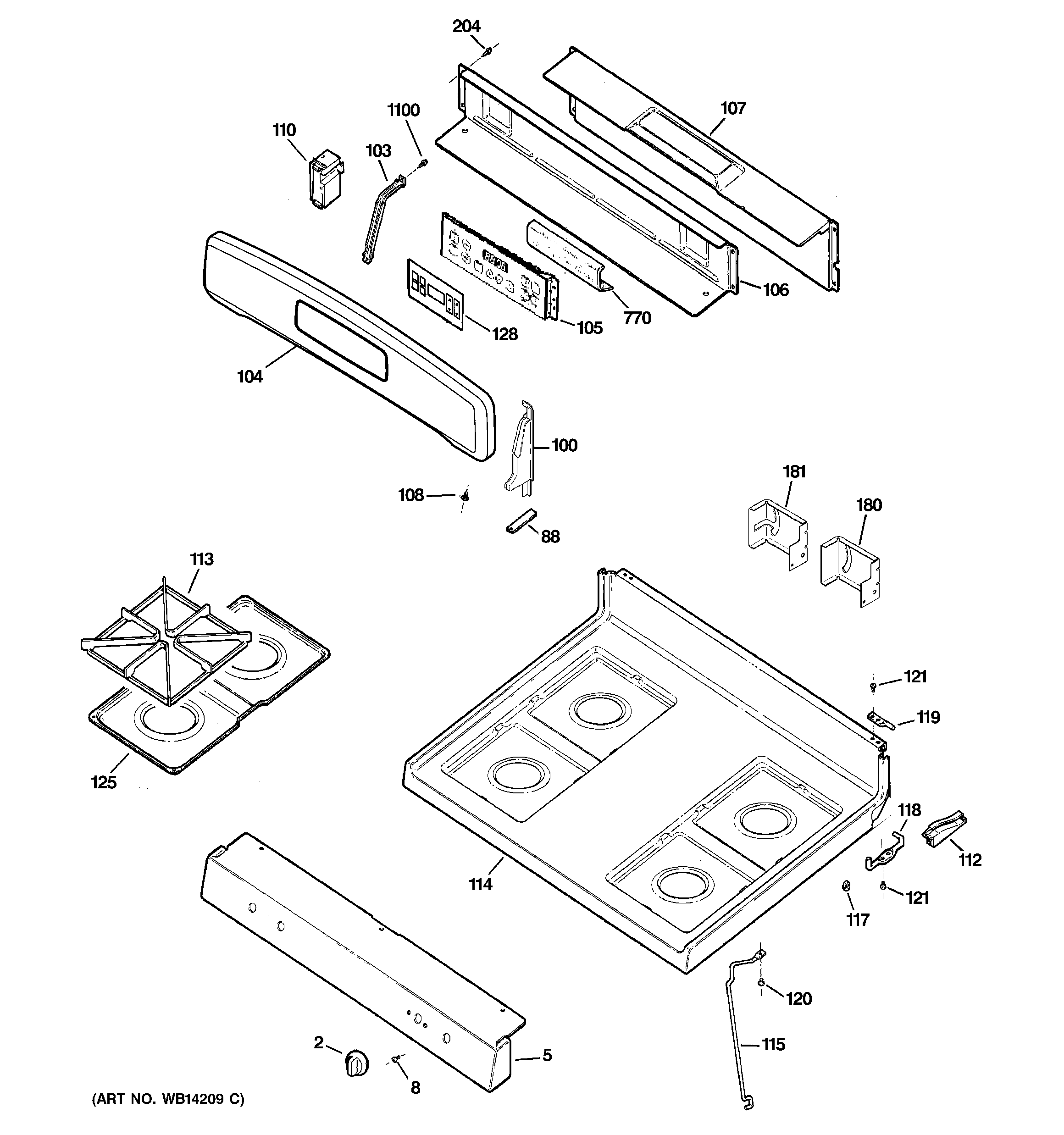

JGBP26DEM5WW CONTROL PANEL & COOKTOP

JGBP26DEM5WW CONTROL PANEL & COOKTOP

Written by

in

JGBP26DEM5WW CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB03K10218 GE Oven Control Knob
2GEN WB03K10225
5GEN WB36K10669
5GEN WB36K10713
8WB01K10002 GE Oven Screw 8-32
88GEN WB02K0062
100GEN WB07K10266
100GEN WB07K10265
100GEN WB07K10270
100GEN WB07K10271
103GEN WB02K10155
104GEN WB36K10672
104GEN WB36K10653
105WB27K10355 GE Oven Electronic Control Board
106GEN WB34K10093
107GEN WB34K10094
108GEN WB01X5874
108WB1X5364 GE Oven Mounting Screw
110WB13X24321 GE Oven Ignition Module
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113WB31X36767 GE Taupe Grate Replacement Kit
113WB31K10027 GE Oven Cooktop Burner Grate (Gray)
114WB62K10003 GE Oven Cooktop Assembly (White)
114GEN WB62K10062
115GEN WB06K0008
117WB14K10004 GE Oven Pin Locator
117GEN WB02K0017
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
125GEN WB35K10002
128WB27K10265 GE Overlay T09-B
128GEN WB27K10275
180WB37K10004 GE Cooktop Left Bracket
181WB37K10003 GE Cooktop Right Bracket
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
