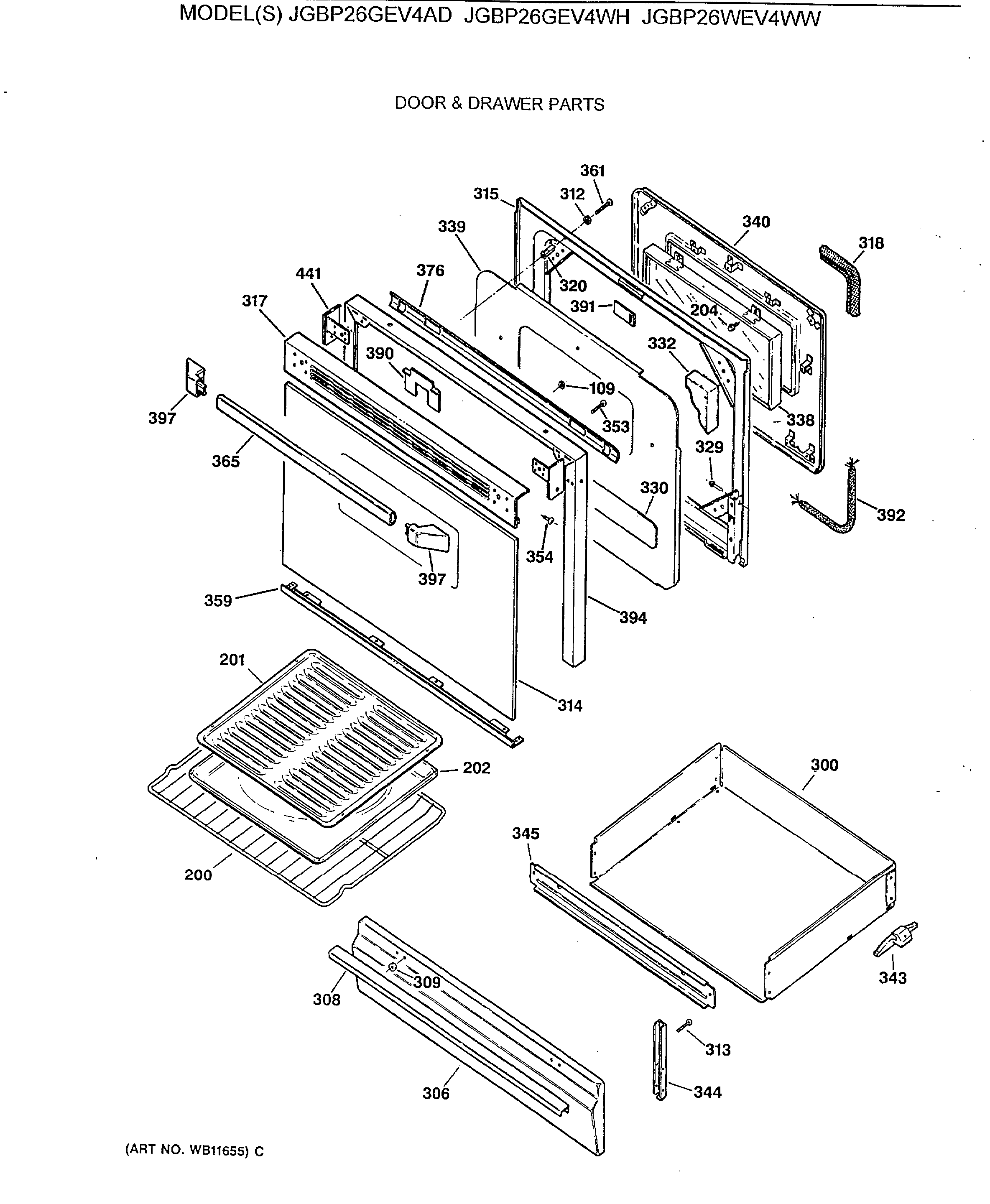

JGBP26GEV4AD DOOR & DRAWER PARTS

JGBP26GEV4AD DOOR & DRAWER PARTS

Written by

in

JGBP26GEV4AD DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
300GEN WB39K0021
306GEN WB39K0004
308GEN WB15K0018
309WASHER
312WB1X119D GE Oven Range Washer
313GEN WB01K0016
314GEN WB57K0002
315GEN WB55K0025
317TRIM VENT (BK)
318WB4K1 GE Oven Gasket Door
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
330GEN WB35K0033
330GEN WB35K0022
332GEN WB35K0020
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB39K0022
353WB1K67 GE Oven Screw 8-22
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0069
365WB15K5076 GE Oven Door Handle
376WB35K23 GE Heater Deflector
390GEN WB34K0025
391GEN WB34K0026
392GEN WB04K0002
394TRIM DOOR (BK)
397WB7X7183 GE Oven Black Handle Endcap
441GEN WB07X7182
441GEN WB07X7181
