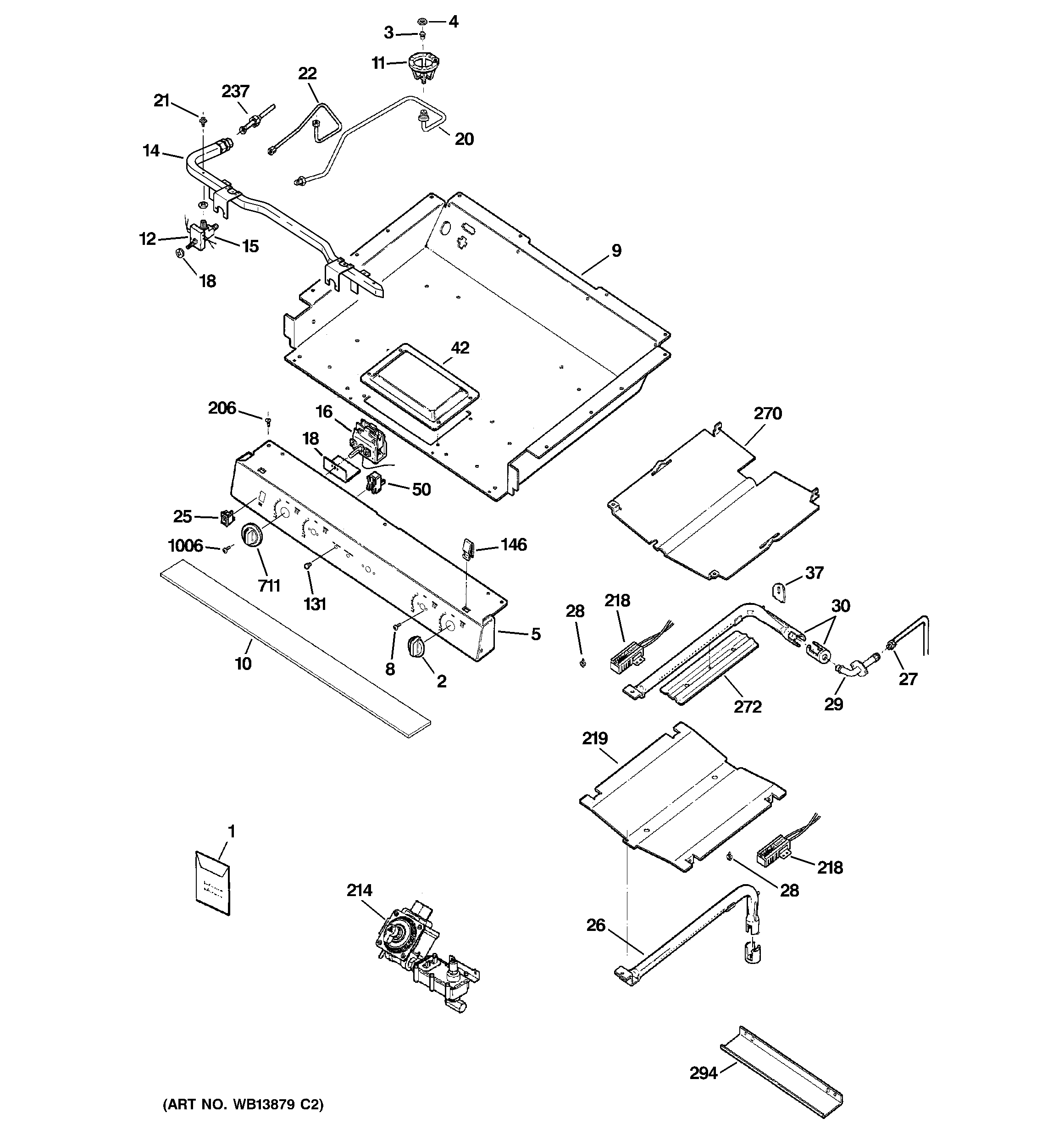

JGBP27DEM1WW GAS & BURNER PARTS

JGBP27DEM1WW GAS & BURNER PARTS

Written by

in

JGBP27DEM1WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85141
1GEN 31-21329
1GEN WB28K10162
2WB03K10218 GE Oven Control Knob
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5MANIFOLD PANEL
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB35K10029 GE Oven Burner Box Insulation
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10025
12GEN WB24K10026
14MANIFOLD PIPE
15140 BURNER VALVE
16WB20K10021 GE Oven Thermostat
18WB2K24 GE Oven Valve Cover
18WB37K10012 GE Thermostat Cover
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
20GEN WB28K10191
21WB01K10066 GE Oven Screw 8 HD 10-32
22WB28K10190 GE Oven Left Front Orifice
22GEN WB28K10192
25WB24K5022 GE Oven Rocker Switch
26GEN WB16K0022
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10008
37WB34K14 GE Igniter Cover
42GEN WB63K0022
50WB25K10002 GE Stove Oven Cooktop Pilot Lamp
131WB25T10041 GE Oven Lens
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K10051 GE Oven Control Valve Assembly SIC D.
218WB2X9154 GE Oven Igniter with 8" Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
237GEN WB28K10477
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
711KNOB THERMOSTAT ASM
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
