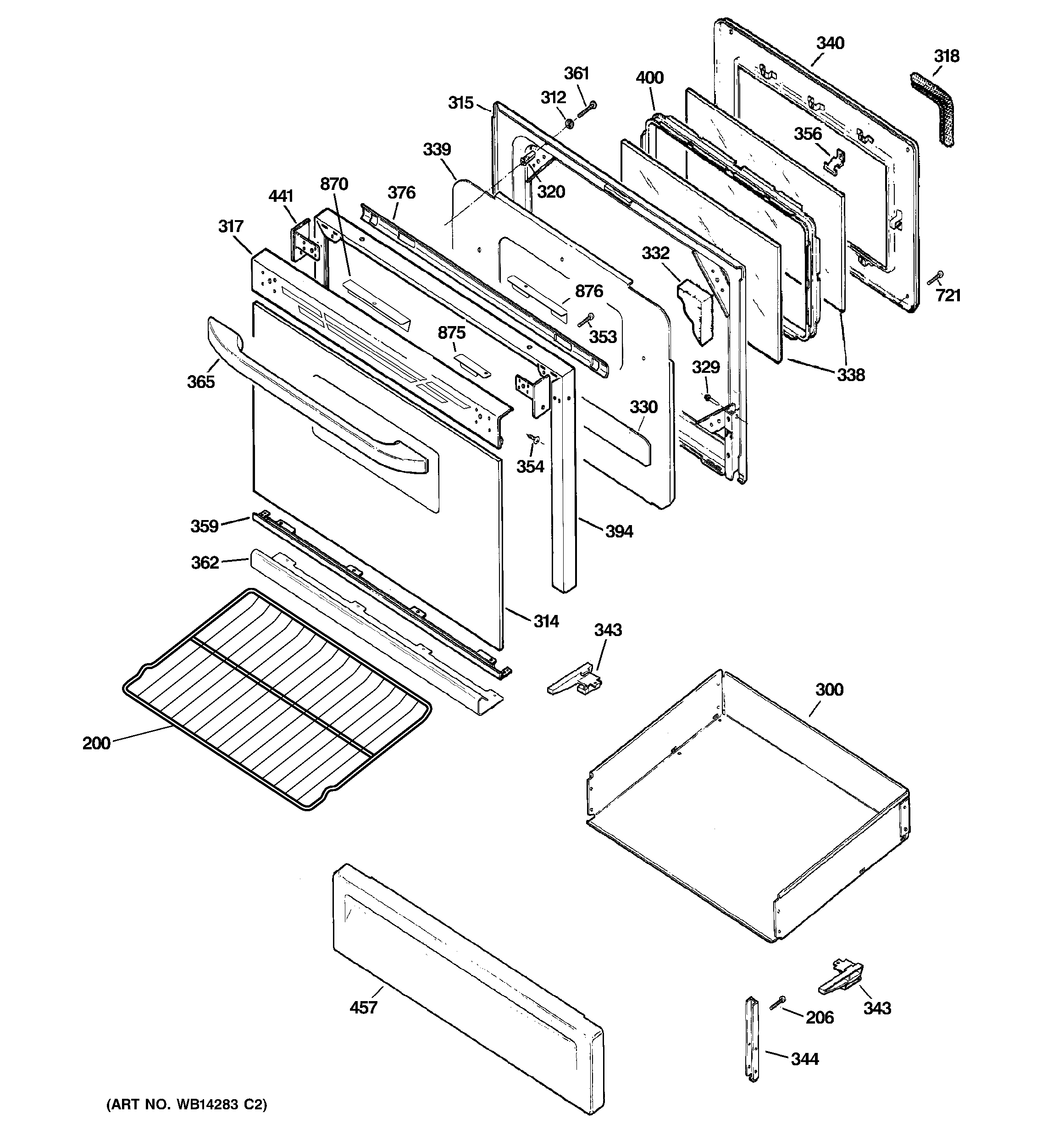

JGBP27DEM5WW DOOR & DRAWER PARTSadmin2025-04-26T08:46:03+00:00JGBP27DEM5WW DOOR & DRAWER PARTS ProductsPositionProduct200WB48T10095 GE Oven Rack206WB01K10091 GE Oven Screw300GEN WB58K10004312WB1X119D GE Oven Range Washer314WB57K10110 GE Oven Glass Door315GEN WB55K10042317GEN WB07K0400317WB35K10041 GE Oven Reflector318GEN WB04K10029320WB02K10161 GE Oven Spacer329WB1X558D GE Oven Screw Package330WB35K10084 GE Door Insulation330GEN WB35K0022332WB35K10149 GE Oven Side Door Insulation332WB35K10150 GE Bottom Door Oven Insulation338CRYSTAL WINDOW339WB56K12 GE Oven Insulation Guard340WB55K13 GE Oven Panel Weld343WB02K10062 GE Oven Drawer Glide343WB02K10061 GE Oven Drawer Glide344WB39K20 GE Oven Mounting Bracket Drawer353WB01K10012 GE Oven Screw 8-22 PL 1HX354WB1K66 GE Screw356GEN WB02K0056359TRIM BOTTOM ASM361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S362GEN WB07K10342365WB15K10096 GE White Oven Handle376WB35K23 GE Heater Deflector394GEN WB07K0268400WB34K10087 GE Oven Window Spacer Assembly441WB7X7188 GE Oven Left Endcap441GEN WB07X7187457WB36K10033 GE Oven Drawer Panel (White)721WB1X536 GE Oven Screw870COVER VENT875COVER VENT876COVER VENT
