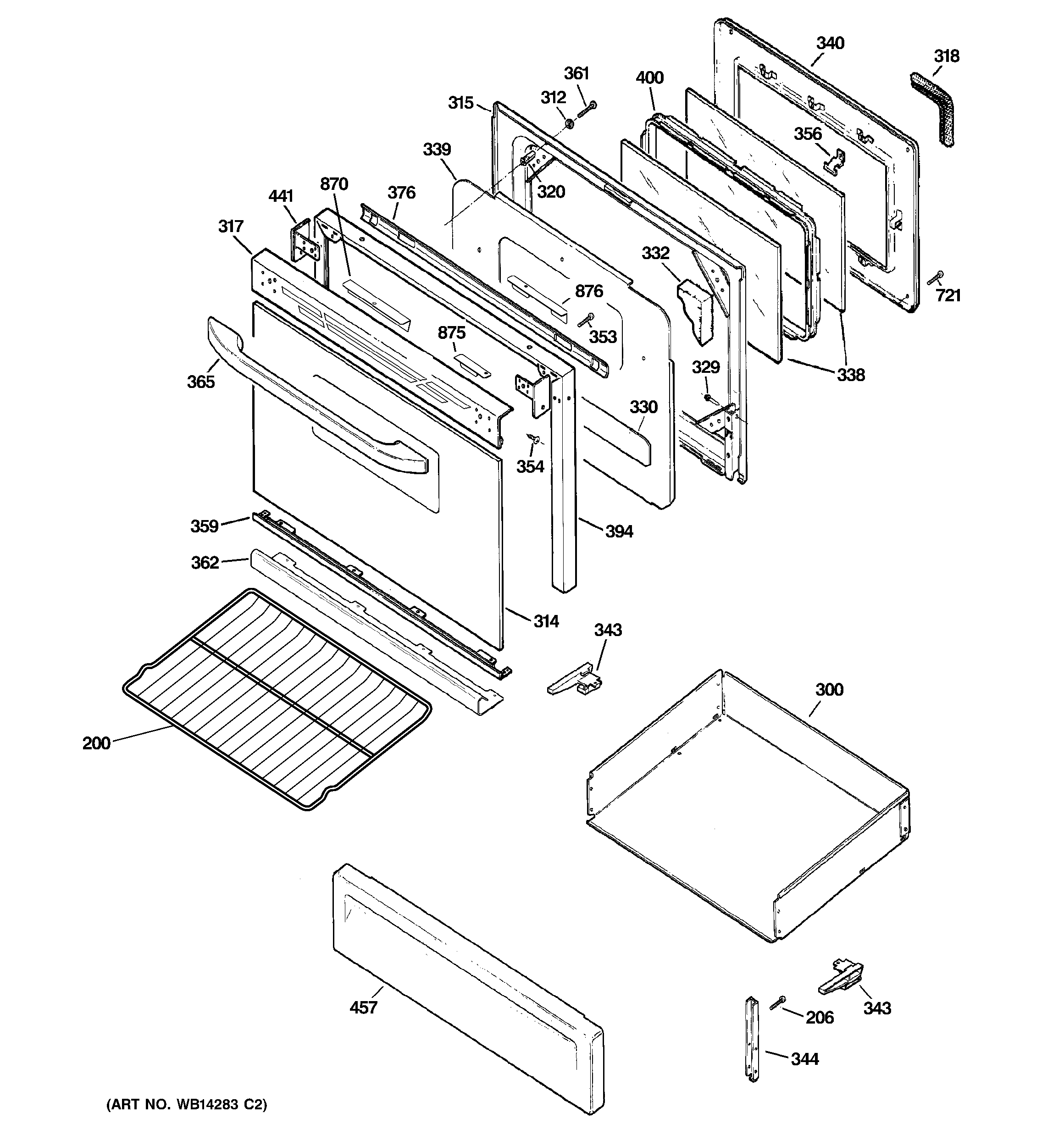

JGBP27DEM6WW DOOR & DRAWER PARTS

JGBP27DEM6WW DOOR & DRAWER PARTS

Written by

in

JGBP27DEM6WW DOOR & DRAWER PARTS

Products

PositionProduct
200OVEN RACK
206WB01K10091 GE Oven Screw
300GEN WB58K10011
312WB1X119D GE Oven Range Washer
314WB57K10110 GE Oven Glass Door
315GEN WB55K10042
317GEN WB07K0400
318GEN WB04K10029
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330WB35K10084 GE Door Insulation
330GEN WB35K0022
332WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
362GEN WB07K10342
365WB15K10096 GE White Oven Handle
376WB35K23 GE Heater Deflector
394GEN WB07K0268
400WB34K10087 GE Oven Window Spacer Assembly
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7187
457WB36K10033 GE Oven Drawer Panel (White)
721WB1X536 GE Oven Screw
870COVER VENT
875COVER VENT
876COVER VENT
