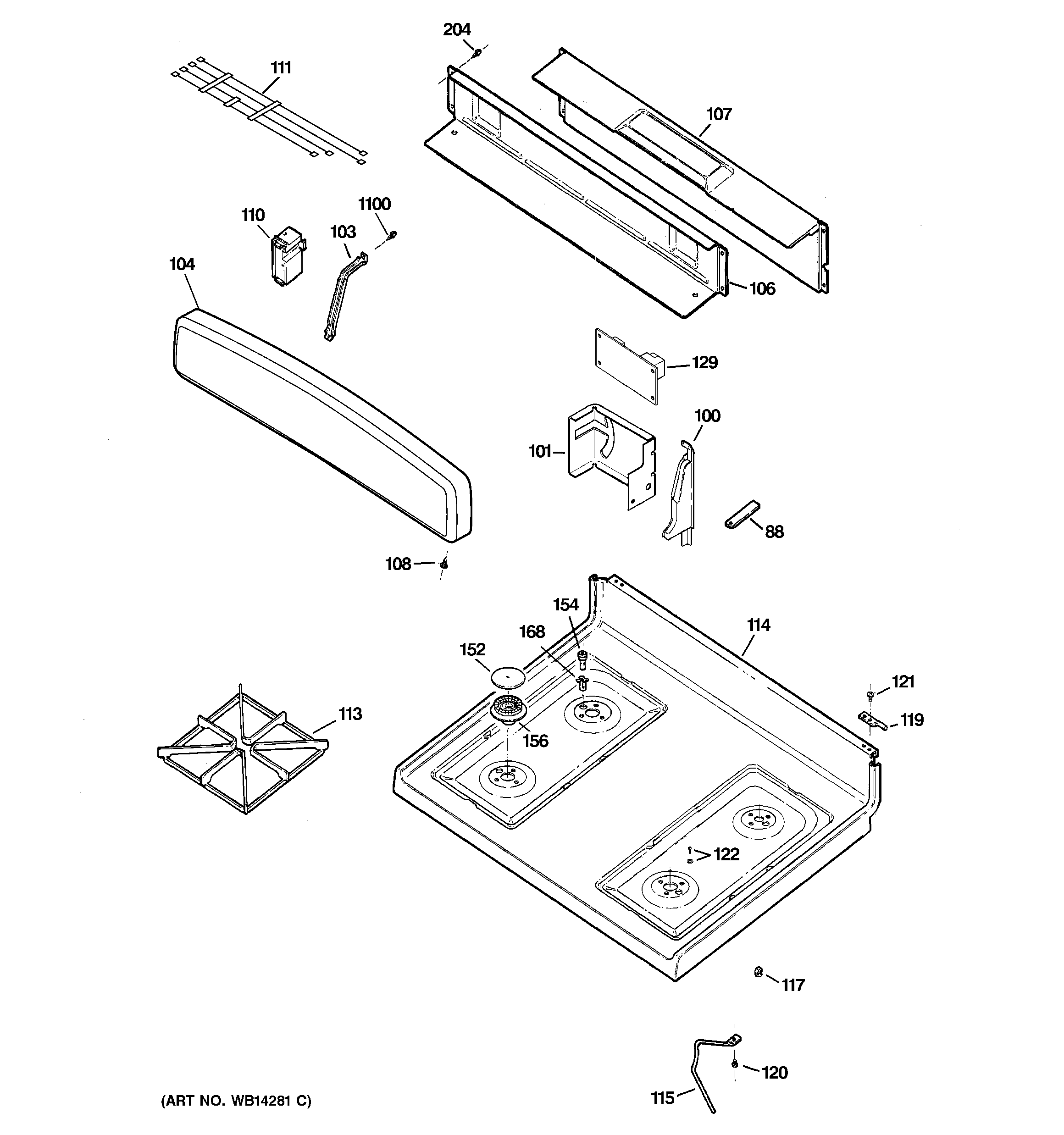

JGBP27DEM7WW CONTROL PANEL & COOKTOP

JGBP27DEM7WW CONTROL PANEL & COOKTOP

Written by

in

JGBP27DEM7WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10265
100GEN WB07K10266
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103GEN WB02K10155
104TRIM CONTROL
106GEN WB34K10093
107WB34K10129 GE Lower Back Cover
108GEN WB01X5874
108WB1X5364 GE Oven Mounting Screw
110WB13K10054 GE Oven Spark Module Service Kit
111GEN WB18K10061
113WB31K10035 GE Oven Grate Gray
114RANGE TOP S.B.
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121GEN WB01K0078
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
129WB11K10041 GE Oven Electronic Timer
152WB29K10004 GE Oven Gray Burner Cap
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
1100WB01T10016 GE Oven Screw 8-18 AB Hex
