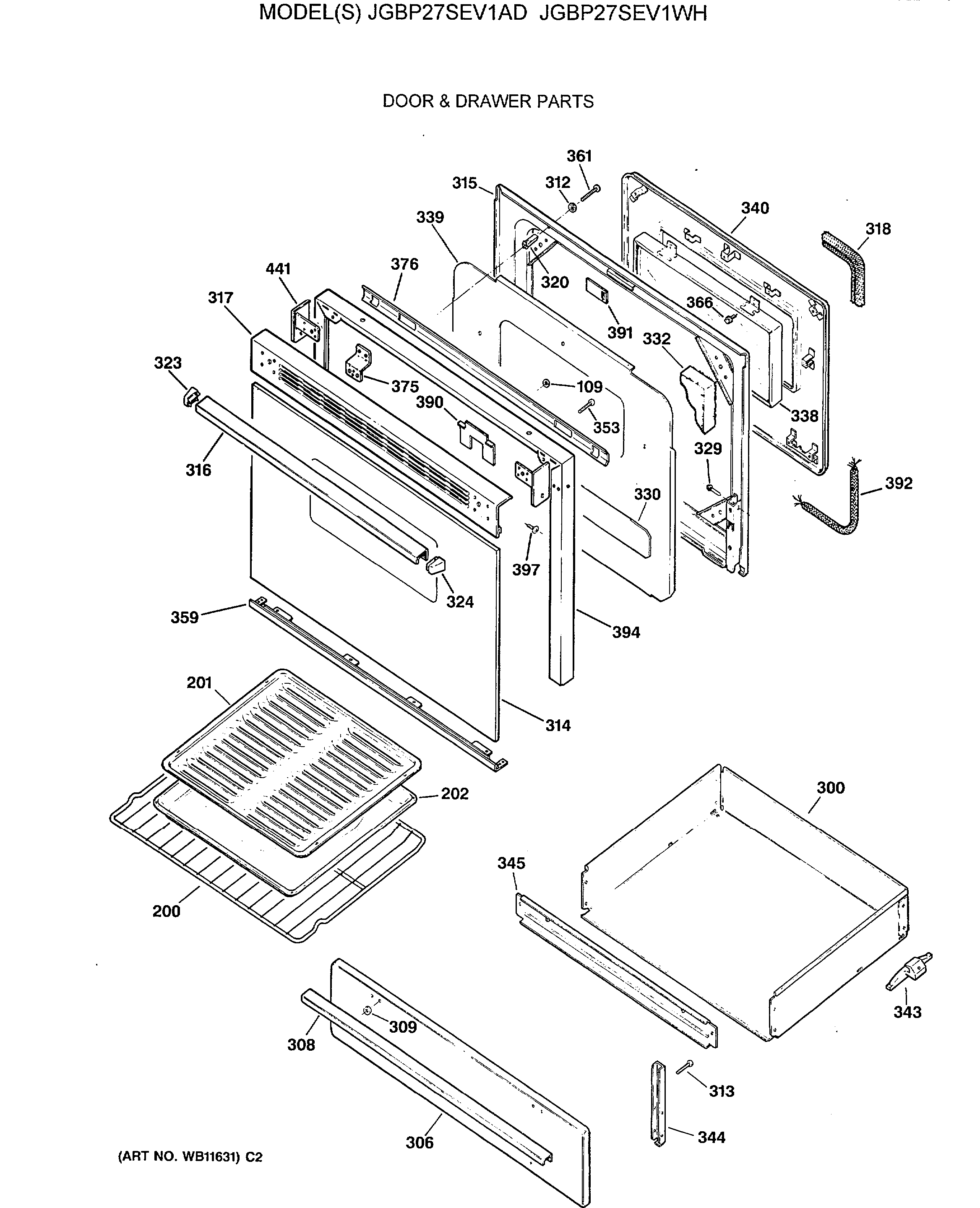

JGBP27SEV1AD DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
300GEN WB39K0021
306GEN WB39K0004
308GEN WB15K0018
309WASHER
312WB1X119D GE Oven Range Washer
313GEN WB01K0016
314GEN WB57K0002
315GEN WB55K0007
316GEN WB15K0023
317GEN WB07K0259
318WB4K1 GE Oven Gasket Door
320WB2K14 GE Oven Spacer
323CAP HANDLE LEFT
324CAP HANDLE RIGHT
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
330GEN WB35K0021
332GEN WB35K0020
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB39K0022
353WB1X5731D GE Oven Nut Package of 12
359WB07K10232 GE Oven Bottom Trim Assembly
361WB1K63 GE Oven Screw
366SCREW
375GEN WB02K0067
376WB35K23 GE Heater Deflector
390GEN WB34K0027
391GEN WB34K0026
392GEN WB04K0002
394GEN WB07K0265
397WB1K62 GE Oven Door Assembly
441WB7K263 GE Oven Door Endcap
441WB7K264 GE Oven Door Endcap
