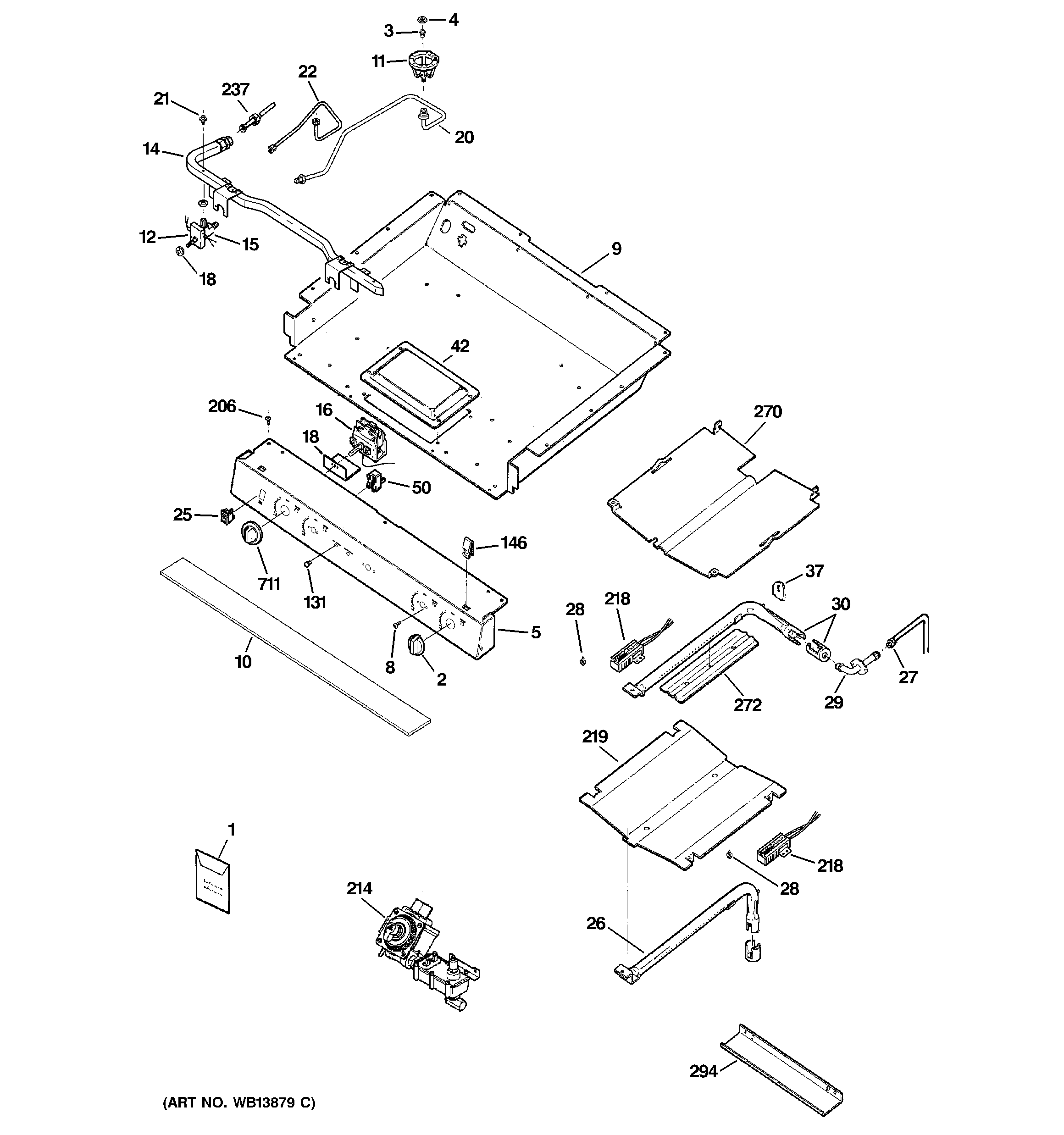

JGBP27WEL1WW GAS & BURNER PARTS

Products

Position	Product
1	GEN WB28K10162
1	PM MINI MANUAL / ELEC DI
1	GEN 49-85109
2	WB03K10143 GE Oven Burner Knob
3	WB28K10023 GE Oven Orifice
4	WB01K10037 GE Oven Economic Nut
5	GEN WB36K10592
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K10037
10	WB35K10029 GE Oven Burner Box Insulation
11	WB02K10361 GE Oven Orifice Holder
12	GEN WB24K10026
12	GEN WB24K10025
14	MANIFOLD PIPE
15	140 BURNER VALVE
16	WB20K10021 GE Oven Thermostat
18	WB37K10012 GE Thermostat Cover
18	WB2K24 GE Oven Valve Cover
20	GEN WB28K10191
20	WB28K10188 GE Oven Rear Orifice H R 150N 9500
21	WB01K10066 GE Oven Screw 8 HD 10-32
22	GEN WB28K10192
22	WB28K10190 GE Oven Left Front Orifice
25	WB24K5022 GE Oven Rocker Switch
26	GEN WB16K0022
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	GEN WB28K10310
30	GEN WB16K10008
37	WB34K14 GE Igniter Cover
42	GEN WB63K0022
50	WB25K10002 GE Stove Oven Cooktop Pilot Lamp
131	WB25T10041 GE Oven Lens
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K10051 GE Oven Control Valve Assembly SIC D.
218	WB2X9154 GE Oven Igniter with 8" Leads
219	OVEN DEFLECTOR
237	WB28X24772 GE Oven Gas Tube Connector
270	DEFLECTOR
272	WB34K10 GE Oven Broil Shield
294	GEN WB63K10040
711	GEN WB03K10207
