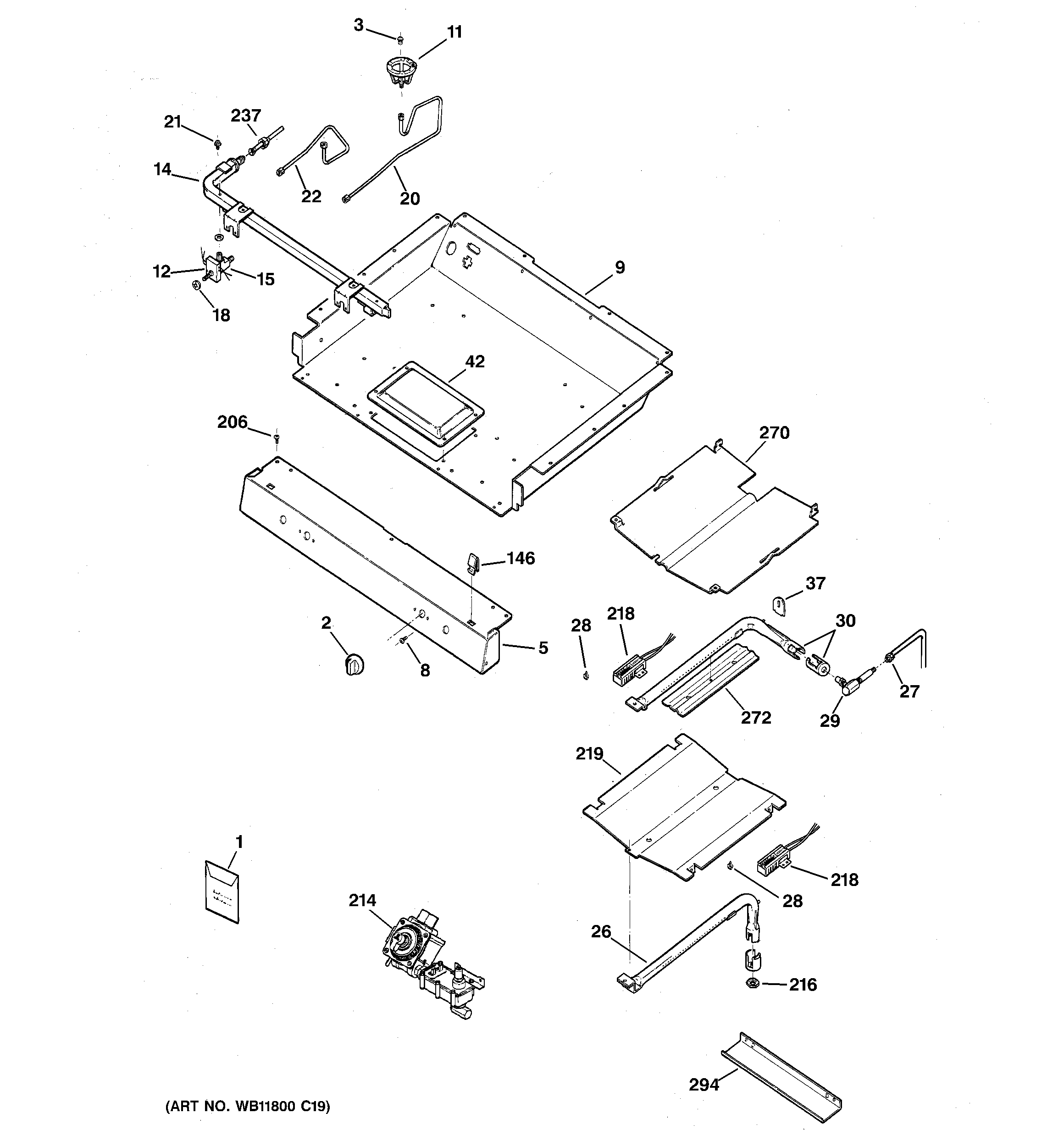

JGBP28BEH2CT GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-21114
1	GEN WB28K10162
1	GEN 49-85069
2	WB03K10141 GE Oven Mini Valve Knob
3	ORIFICE-NG MED 1.50MM
3	WB28K10023 GE Oven Orifice
5	GEN WB36K10353
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K10037
11	GEN WB02K10006
12	WB24K10017 GE Oven Burner Switch
12	GEN WB24K10025
12	GEN WB24K10026
14	GEN WB28K10028
15	140 BURNER VALVE
18	WB2K24 GE Oven Valve Cover
20	GEN WB28K10026
20	GEN WB28K10027
21	WB1K83 GE Oven Screw
22	WB28K10025 GE Gas Range Burner Tube
22	WB28K10024 GE Oven Burner Tube
26	GEN WB16K0022
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	GEN WB28K0030
30	GEN WB16K10008
37	WB34K14 GE Igniter Cover
42	GEN WB63K0022
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K10051 GE Oven Control Valve Assembly SIC D.
216	GEN WB01K0006
218	WB2X9154 GE Oven Igniter with 8" Leads
219	OVEN DEFLECTOR
237	WB28X24772 GE Oven Gas Tube Connector
270	DEFLECTOR
272	WB34K10 GE Oven Broil Shield
294	GEN WB63K10040
