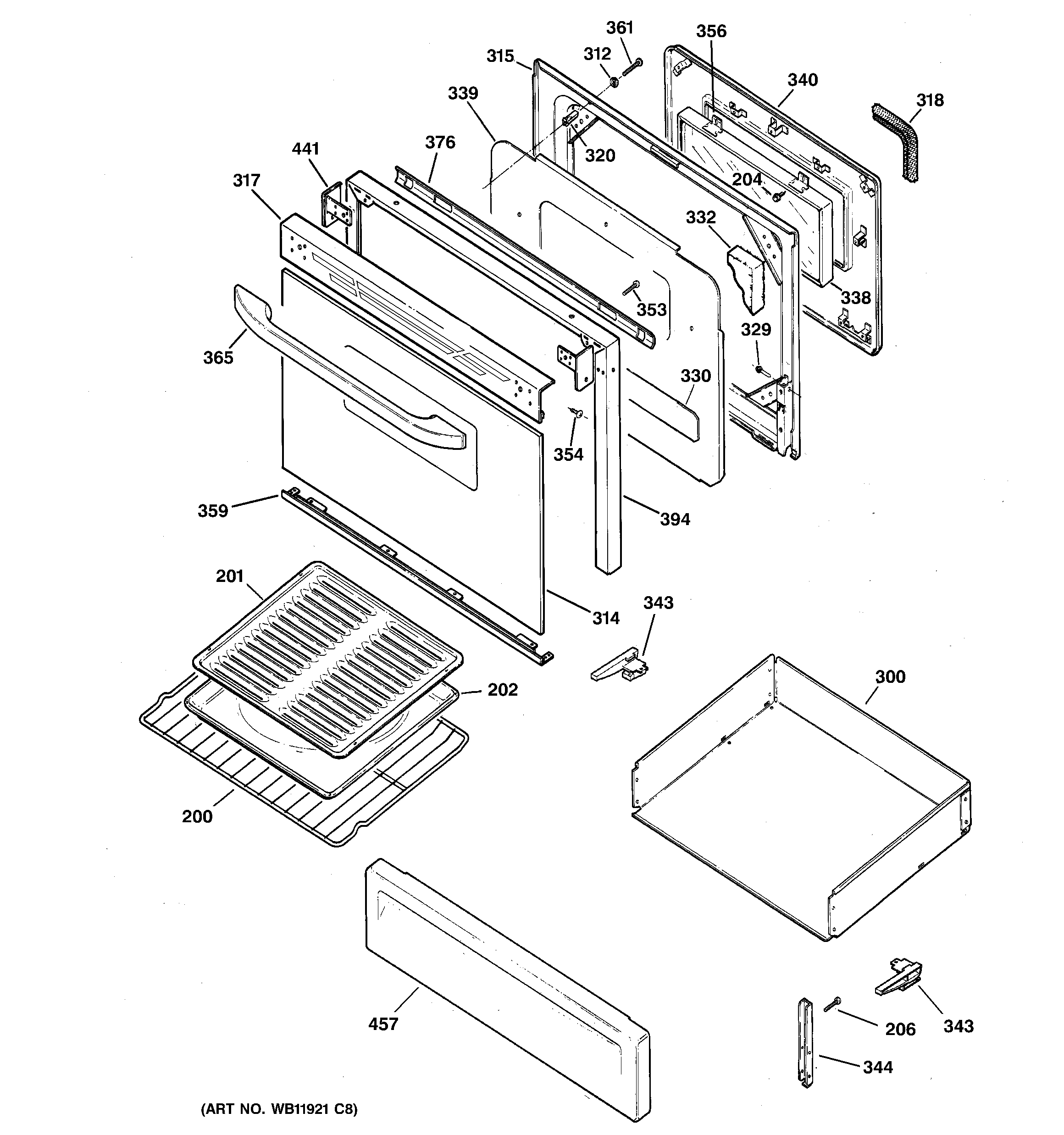

JGBP28BEJ3CT DOOR & DRAWER PARTS

JGBP28BEJ3CT DOOR & DRAWER PARTS

Written by

in

JGBP28BEJ3CT DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WR01X10065 GE Screw
300GEN WB58K10004
312WB1X119D GE Oven Range Washer
314GEN WB57K10100
315GEN WB55K0025
317WB7K403 GE Oven Top Door Trim
318WB4K1 GE Oven Gasket Door
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0024
332GEN WB35K0025
338CRYSTAL WINDOW
338WB34K10087 GE Oven Window Spacer Assembly
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB1K67 GE Oven Screw 8-22
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0069
365HANDLE ASM
376WB35K23 GE Heater Deflector
394GEN WB35K0033
394GEN WB07K10104
441GEN WB07X7182
441GEN WB07X7181
457GEN WB36K10164
