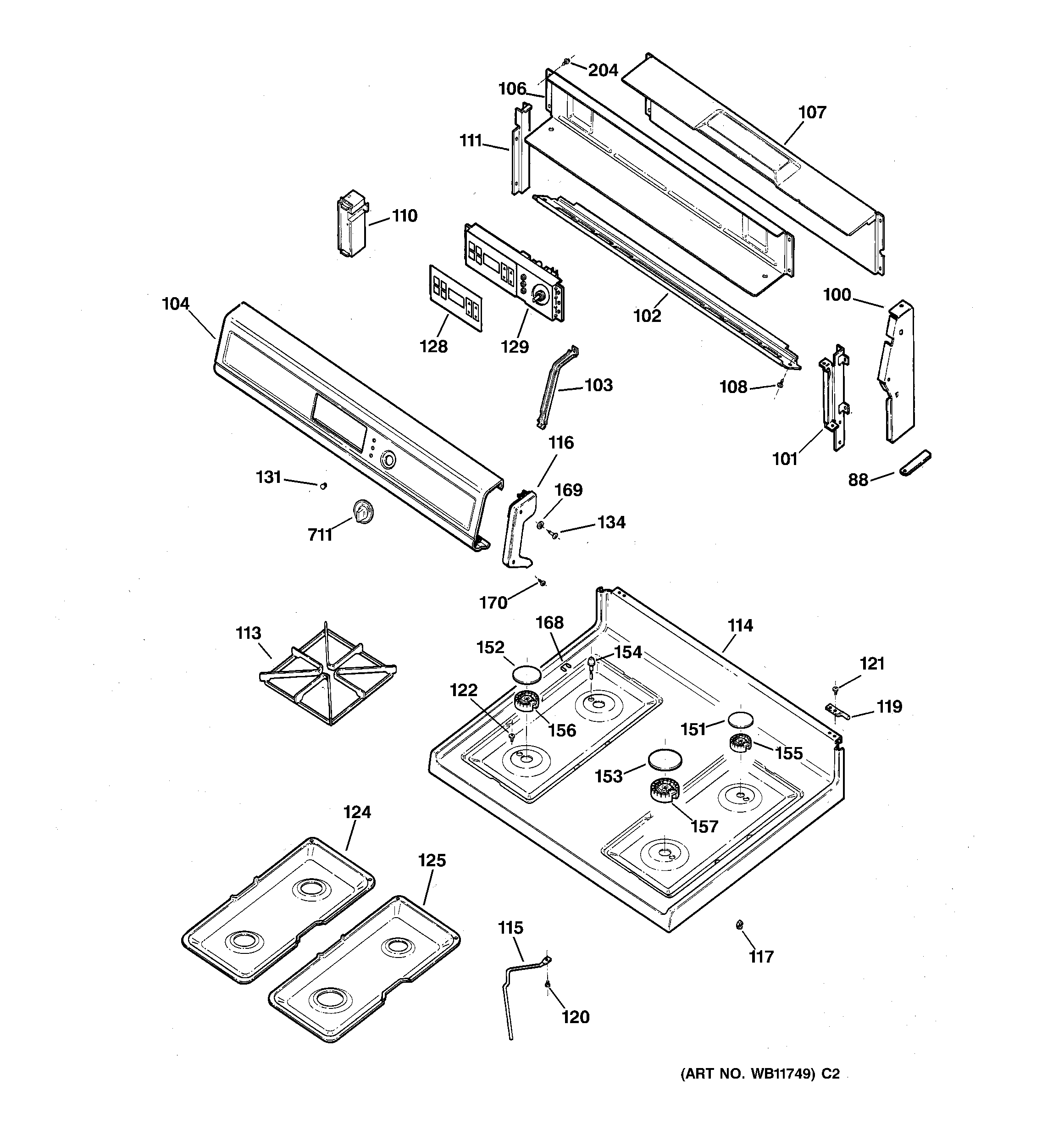

JGBP28BEW1WH CONTROL PANEL & COOKTOP

JGBP28BEW1WH CONTROL PANEL & COOKTOP

Written by

in

JGBP28BEW1WH CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K0240
100GEN WB07K0241
101GEN WB37K0018
101GEN WB37K0017
102GEN WB07K0005
103GEN WB37K0009
104GEN WB36K0189
106GEN WB36K0017
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
110HARNESS HV
110GEN WB13K0025
111GEN WB34K0005
113GEN WB31K0014
114GEN WB62K0064
115WB2K91 GE Oven Top Support
116GEN WB07K0341
116GEN WB07K0340
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB1K84 GE Oven Screw and
124GEN WB32K0010
125GEN WB32K0009
128GEN WB11K0070
129GEN WB11K0064
131WB25T10041 GE Oven Lens
134GEN WB01K0075
151CAP BURNER SMALL (BK)
152CAP BURNER MED (BK)
153CAP BURNER LG (BK)
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157BURNER HEAD-LG
168ELECTRODE CLIP
169GEN WB01K0057
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
711GEN WB03K0223
