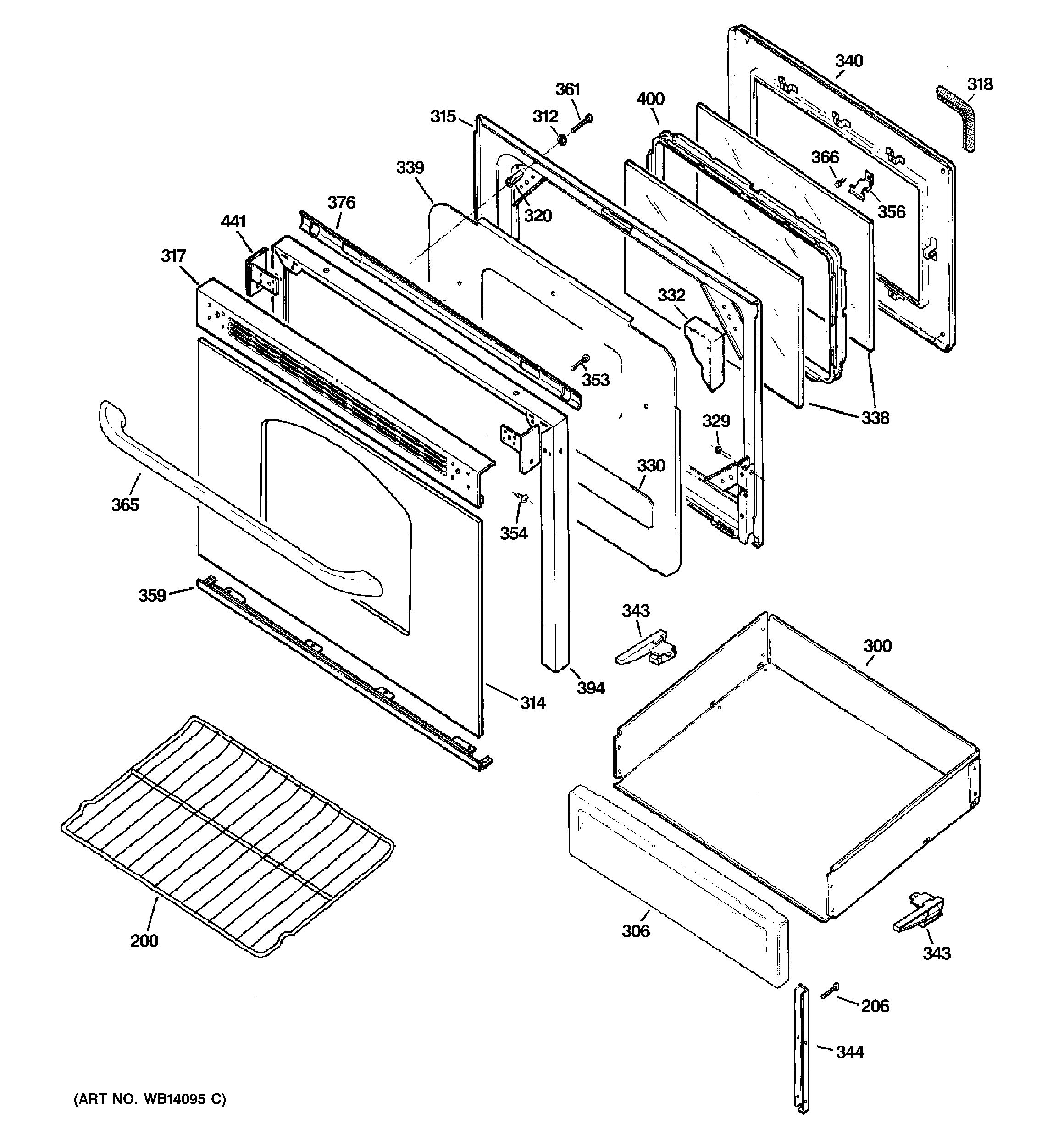

JGBP28DEM1WW DOOR & DRAWER PARTS

JGBP28DEM1WW DOOR & DRAWER PARTS

Written by

in

JGBP28DEM1WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
206WR01X10065 GE Screw
300GEN WB58K10004
306WB36K10033 GE Oven Drawer Panel (White)
312WB1X119D GE Oven Range Washer
314WB57K10110 GE Oven Glass Door
315GEN WB55K10042
317GEN WB07K0400
318WB35X29722 GE Oven Door Gasket Assembly
320GEN WB02K10159
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0025
332GEN WB35K0024
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
361WB1K63 GE Oven Screw
365GEN WB15K10075
366WB1X536 GE Oven Screw
376WB35K23 GE Heater Deflector
394GEN WB35K0033
394GEN WB07K10267
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7187
441WB7X7188 GE Oven Left Endcap
