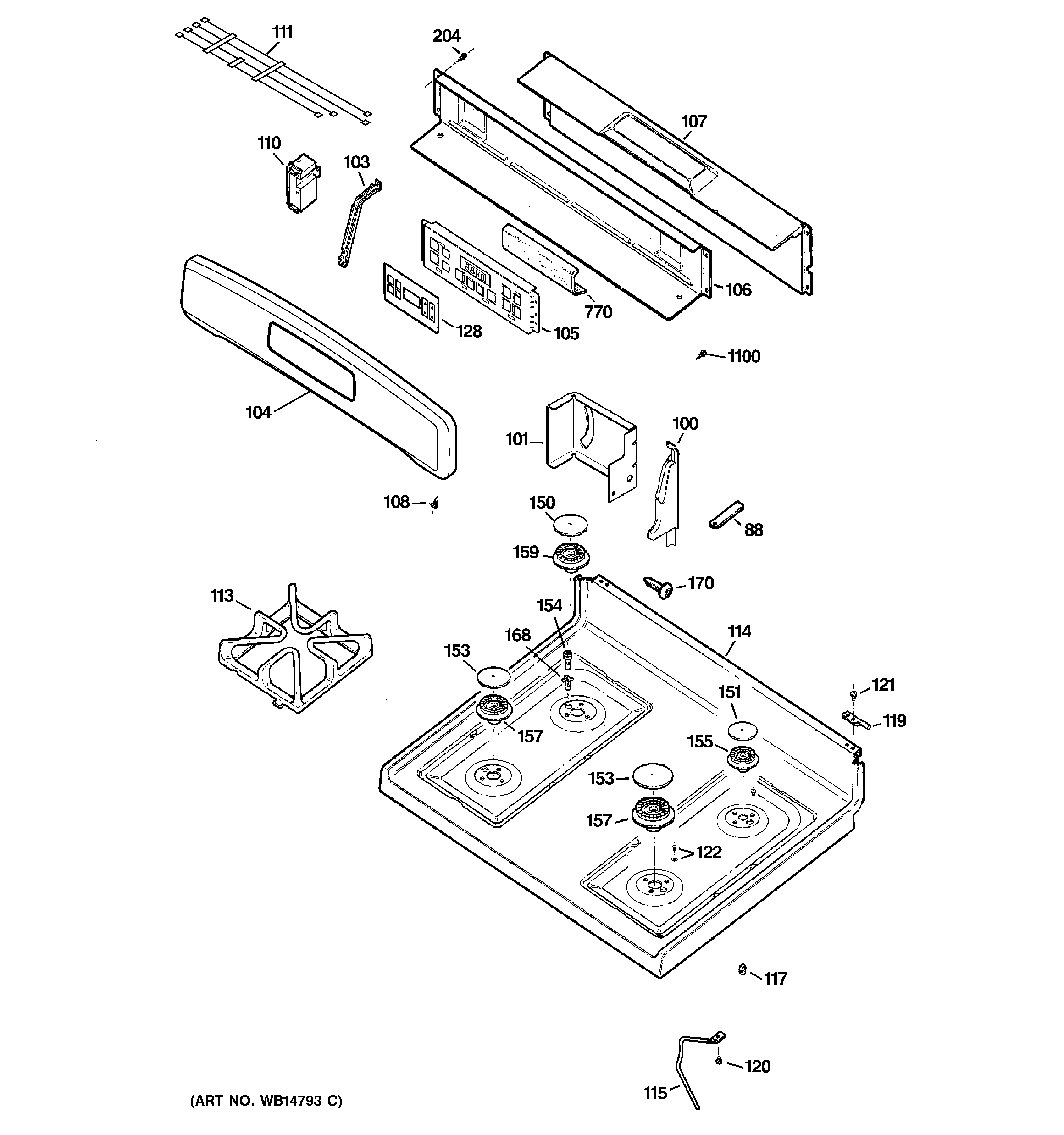

JGBP28DEM8BB CONTROL PANEL & COOKTOP

JGBP28DEM8BB CONTROL PANEL & COOKTOP

Written by

in

JGBP28DEM8BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10260
100GEN WB07K10261
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10155
104GEN WB36K10651
105WB27K10354 GE Oven Gas Control
106GEN WB34K10093
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB13K10029 GE Oven Spark Module
111GEN WB18K10039
113WB31K10034 GE Oven Grate
114GEN WB62K10053
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
121GEN WB01K0078
122WB01K10106 GE Oven Circuit Screw
128WB27K10412 GE Oven Overlay T09-A
150WB29K10001 GE Oven Burner Cap
151WB29K10009 GE Oven Burner Cap
153WB29K10006 GE Oven Burner Cap
154GEN WB13K10021
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
157BURNER 12K
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
