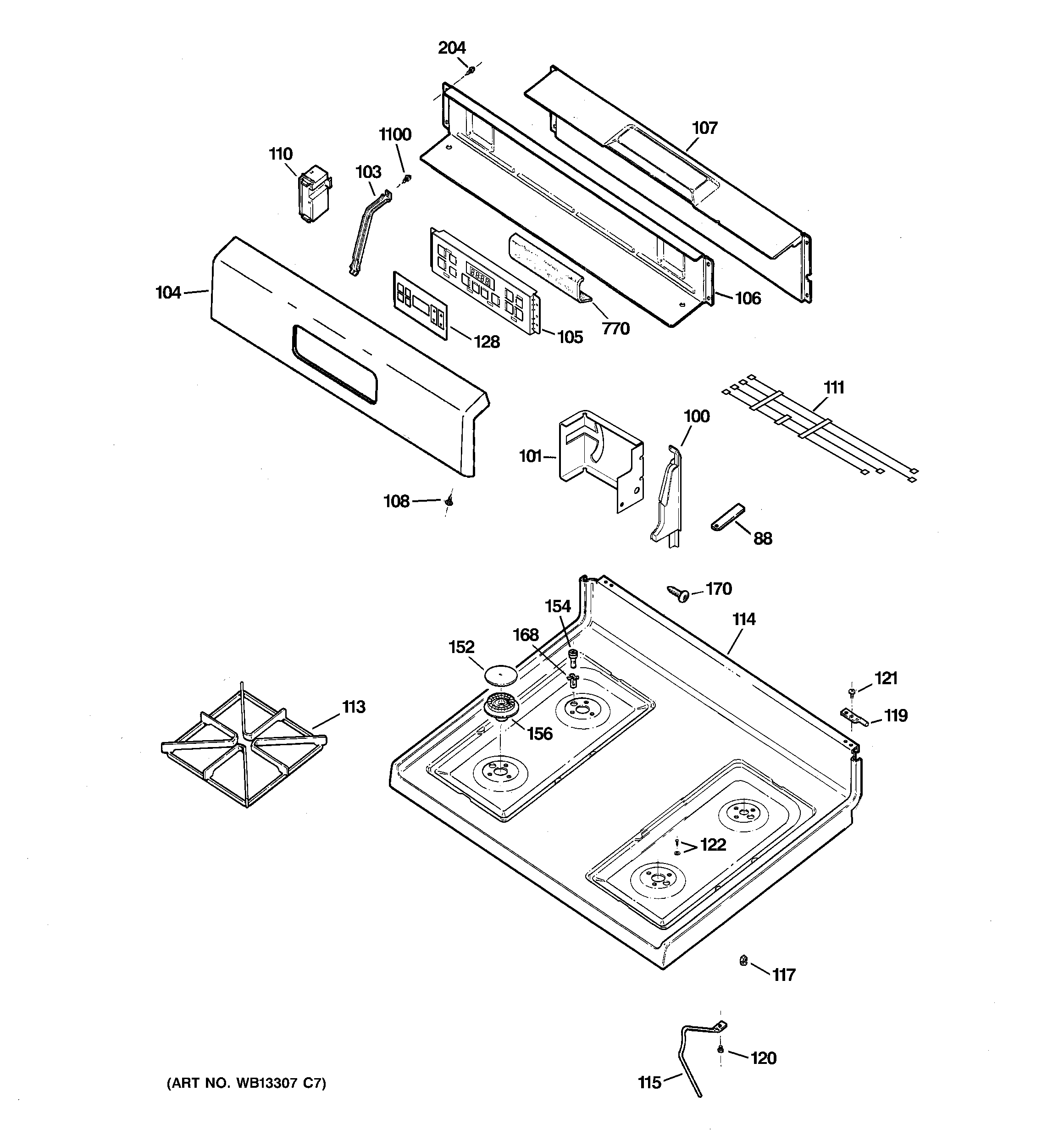

JGBP28WEKBWW CONTROL PANEL & COOKTOP

JGBP28WEKBWW CONTROL PANEL & COOKTOP

Written by

in

JGBP28WEKBWW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100WB07K10195 GE Oven Right White End Support
100WB07K10196 GE Oven Left End Support (White)
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10344
105WB27K10354 GE Oven Gas Control
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10130
108WB1X5364 GE Oven Mounting Screw
110WB13K10029 GE Oven Spark Module
111GEN WB18K10039
113WB31K10035 GE Oven Grate Gray
114GEN WB62K10046
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
121GEN WB01K0078
122WB01K10106 GE Oven Circuit Screw
128GEN WB27K10187
152WB29K10004 GE Oven Gray Burner Cap
154GEN WB13K10021
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
