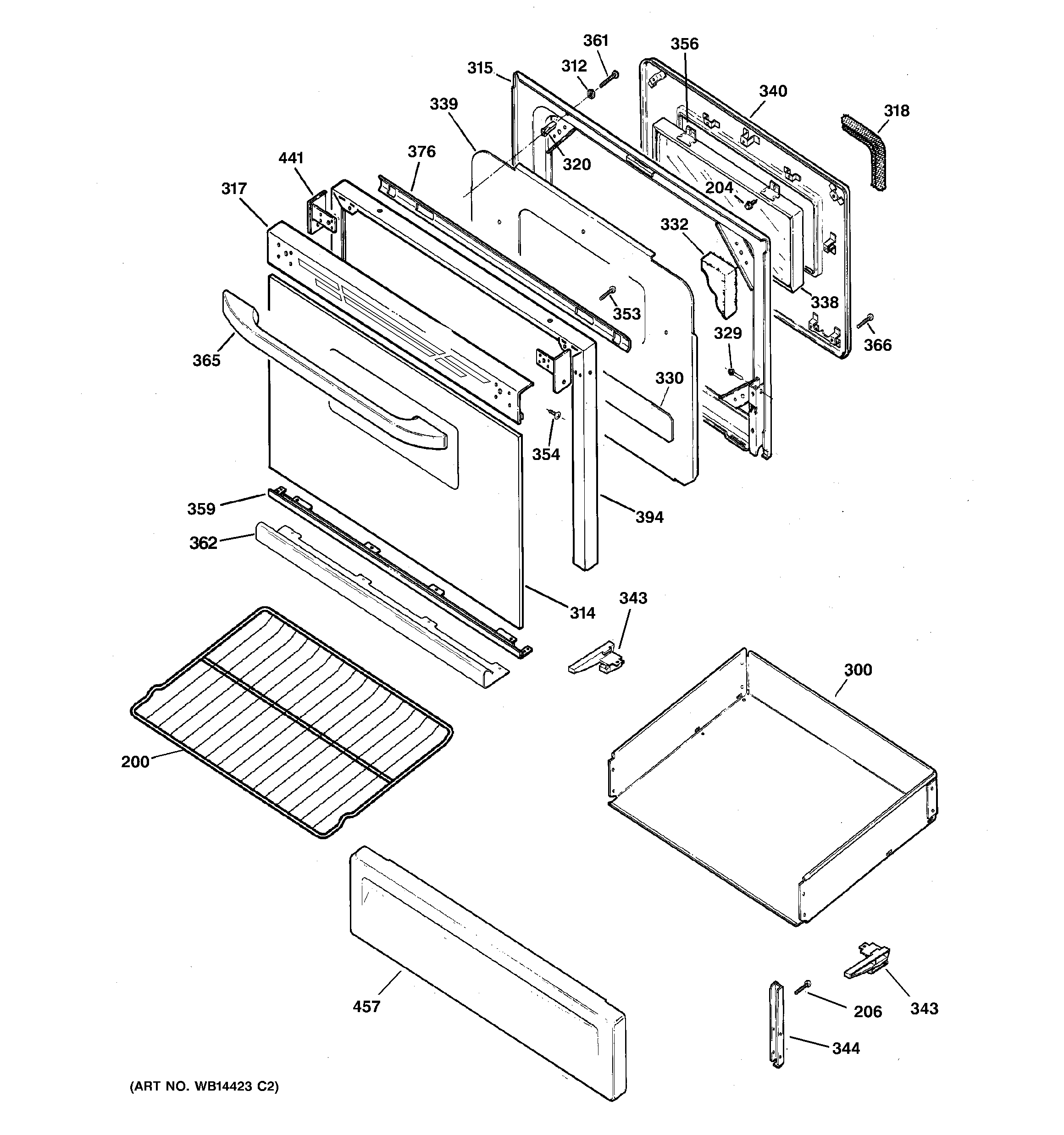

JGBP28WEKDWW DOOR & DRAWER PARTS

JGBP28WEKDWW DOOR & DRAWER PARTS

Written by

in

JGBP28WEKDWW DOOR & DRAWER PARTS

Products

PositionProduct
200OVEN RACK
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
300WB58K10015 GE Oven Drawer Body
300GEN WB58K10011
312WB1X119D GE Oven Range Washer
314WB57K10110 GE Oven Glass Door
314WB57K5 GE Oven White Glass Door
315GEN WB55K10042
317GEN WB07K0400
318GEN WB04K10029
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
338WB34K10087 GE Oven Window Spacer Assembly
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB1K67 GE Oven Screw 8-22
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
362GEN WB07K10342
365GEN WB15K10048
366WB1X536 GE Oven Screw
376WB35K23 GE Heater Deflector
394GEN WB07K10103
441GEN WB07X7187
441WB7X7188 GE Oven Left Endcap
457WB36K10033 GE Oven Drawer Panel (White)
