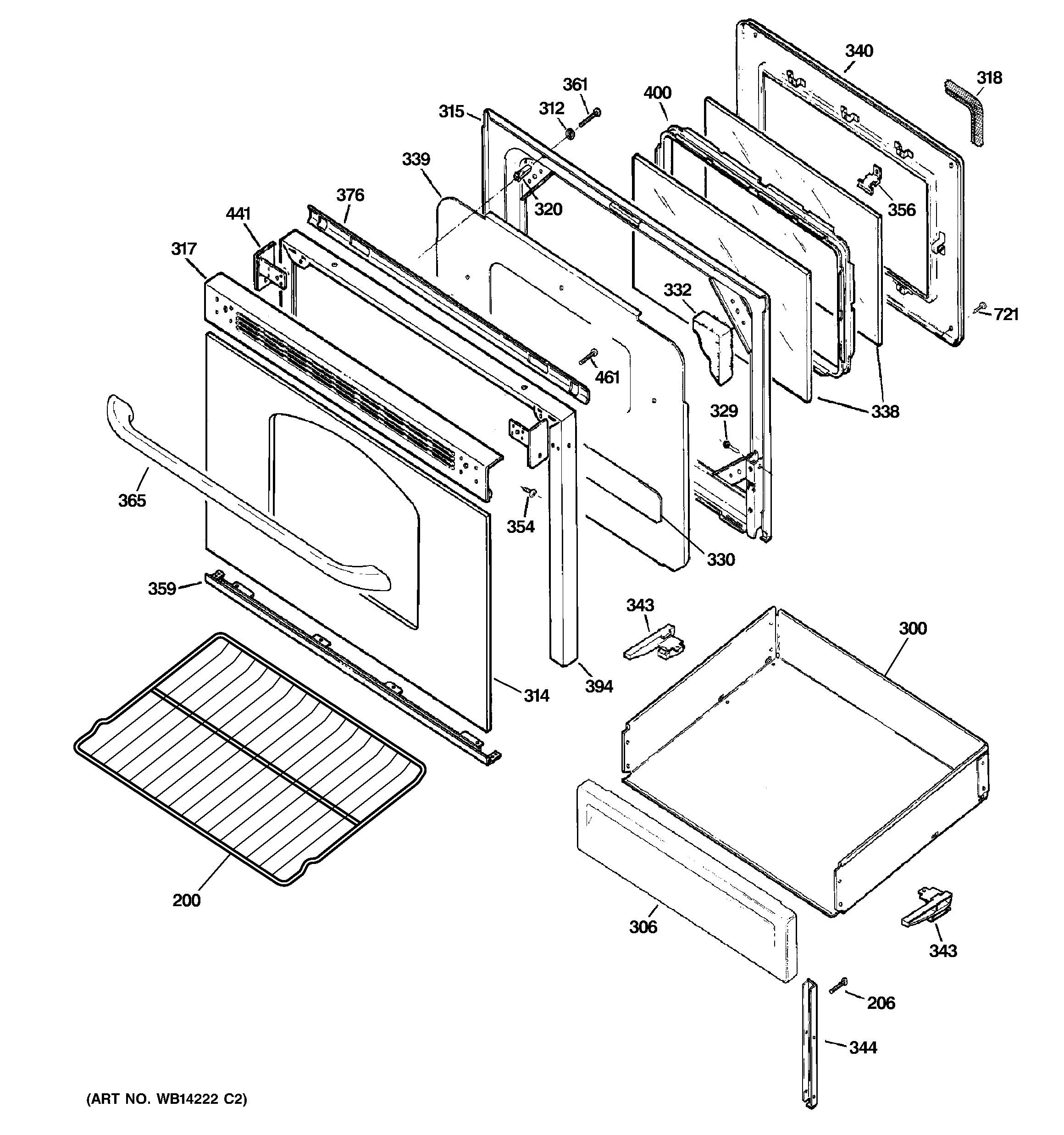

JGBP29DEM1BB DOOR & DRAWER PARTS

JGBP29DEM1BB DOOR & DRAWER PARTS

Written by

in

JGBP29DEM1BB DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
206WR01X10065 GE Screw
300GEN WB58K10004
306WB55K10001 GE Oven Drawer Panel (Black)
312WB1X119D GE Oven Range Washer
314WB57K10109 GE Oven Glass Door
315GEN WB55K10042
317WB7K403 GE Oven Top Door Trim
317WB35K10041 GE Oven Reflector
318WB35X29722 GE Oven Door Gasket Assembly
320GEN WB02K10159
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0025
332GEN WB35K0024
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365GEN WB15K10074
376WB35K23 GE Heater Deflector
394GEN WB07K10264
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7182
441GEN WB07X7181
461WB01K10012 GE Oven Screw 8-22 PL 1HX
721WB1X536 GE Oven Screw
