JGBP30AEW1AA DOOR & DRAWER PARTS

JGBP30AEW1AA DOOR & DRAWER PARTS

Written by

in

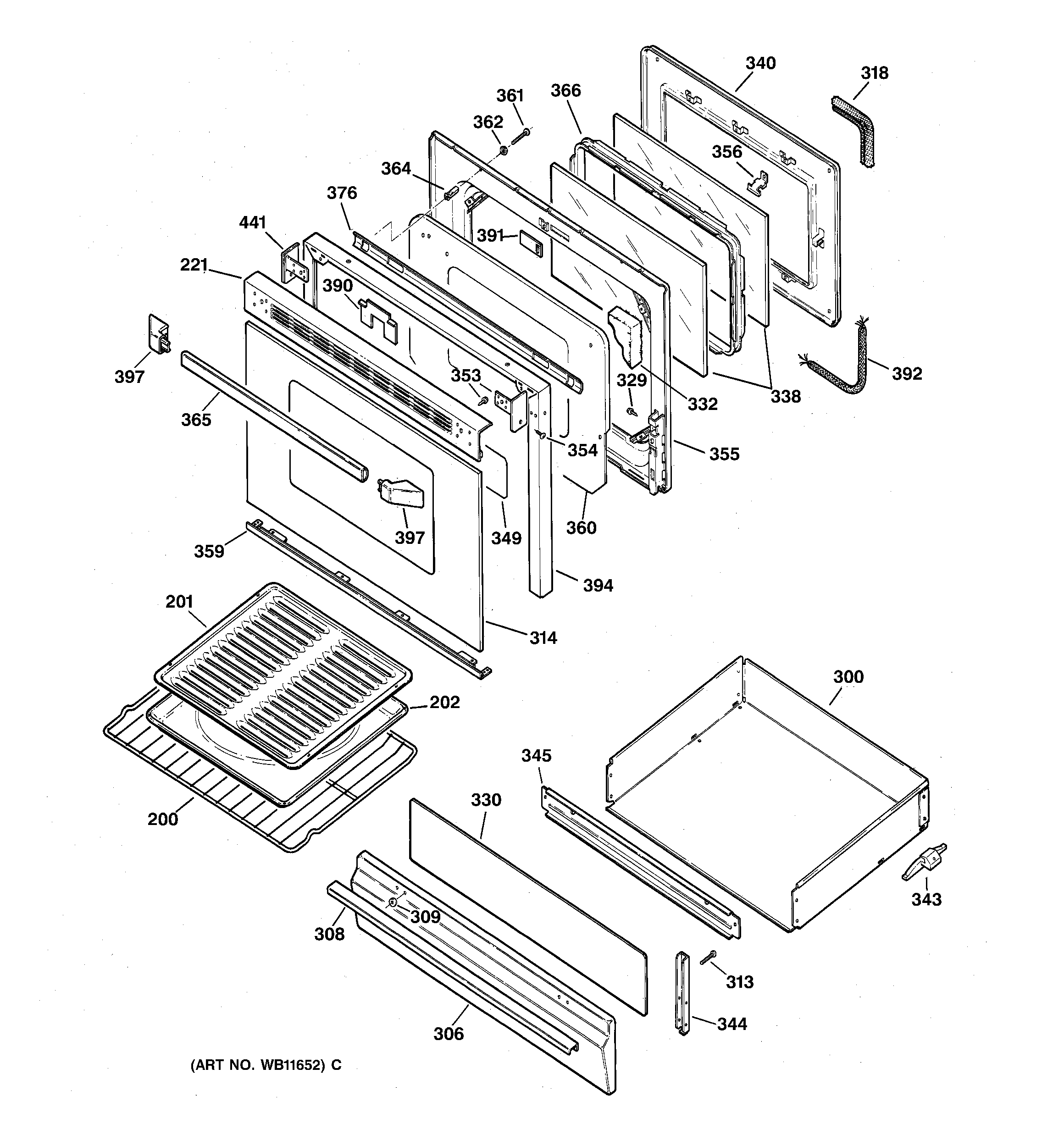

JGBP30AEW1AA DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
221GEN WB07K0404
300GEN WB39K0021
306GEN WB39K0004
308GEN WB15K0018
309WASHER
313WB1X5731D GE Oven Nut Package of 12
314GEN WB57K0006
314PAD
318WB4K1 GE Oven Gasket Door
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0025
332GEN WB35K0024
338CRYSTAL WINDOW
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB39K0022
349GEN WB35K0033
353WB1K67 GE Oven Screw 8-22
354GEN WB01K0071
355GEN WB55K0025
356GEN WB02K0069
359GEN WB07K0385
360WB56K12 GE Oven Insulation Guard
361GEN WB01K0069
362WB1X119D GE Oven Range Washer
364GEN WB02K0084
365HANDLE
366WB34K10087 GE Oven Window Spacer Assembly
376WB35K23 GE Heater Deflector
390GEN WB34K0034
391GEN WB34K0026
392GEN WB04K0003
394TRIM DOOR-(AL)
397END CAP HANDLE (AL)
441CAP END DOOR-LFT (AL)
441CAP END DOOR-RT (AL)
