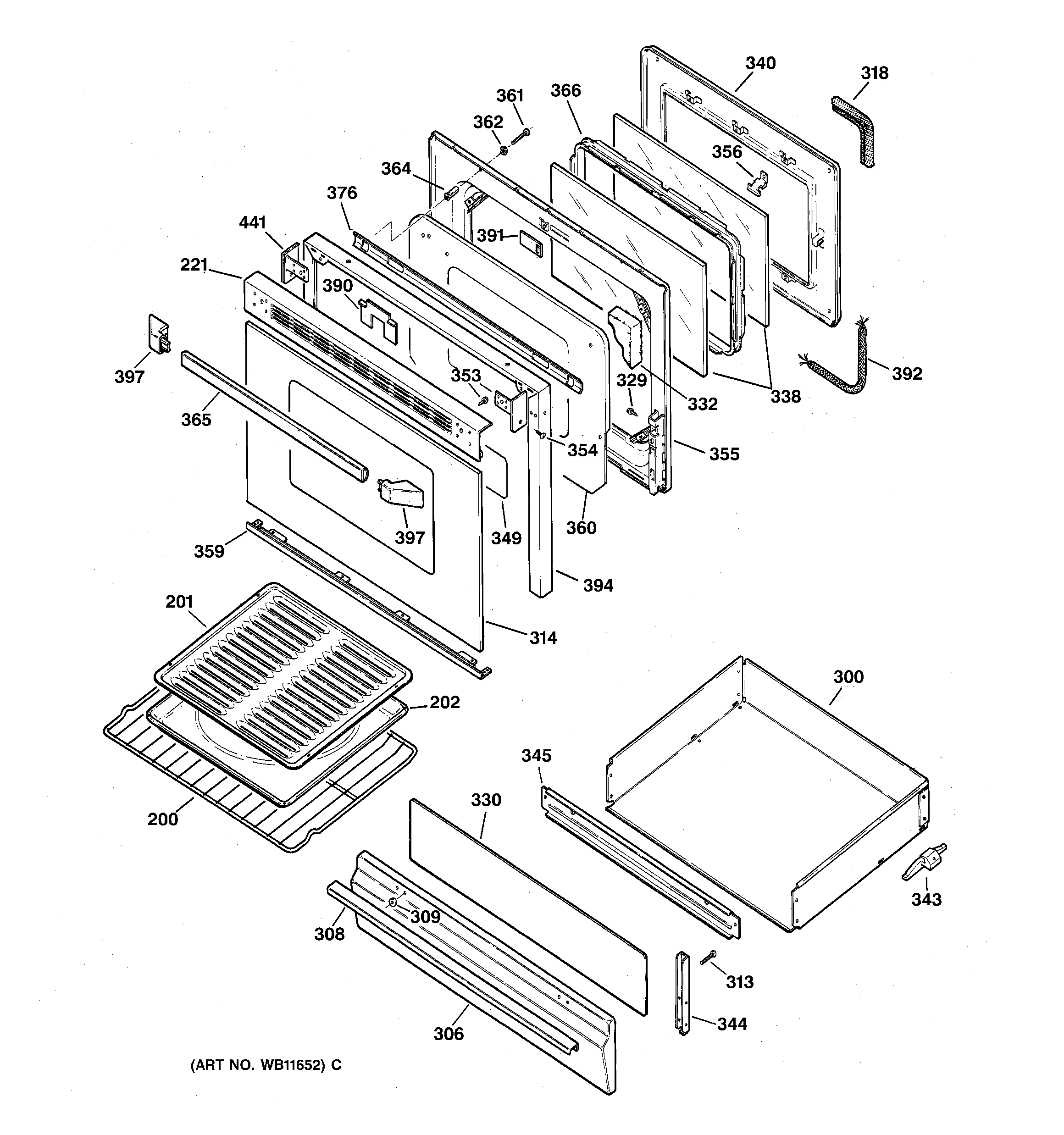

JGBP30BEW1AD DOOR & DRAWER PARTS

JGBP30BEW1AD DOOR & DRAWER PARTS

Written by

in

JGBP30BEW1AD DOOR & DRAWER PARTS

Products

PositionProduct
108WB34K10087 GE Oven Window Spacer Assembly
136WB15K5076 GE Oven Door Handle
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
221WB7K403 GE Oven Top Door Trim
300GEN WB39K0021
306GEN WB39K0004
308GEN WB15K0018
309WASHER
312WB1X119D GE Oven Range Washer
314WB57K4 GE Oven Black Glass Door
314PAD
315GEN WB55K0025
318WB4K1 GE Oven Gasket Door
320GEN WB02K0084
321WB1X5731D GE Oven Nut Package of 12
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0025
332GEN WB35K0024
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB39K0022
349GEN WB35K0033
353WB1K67 GE Oven Screw 8-22
356GEN WB02K0069
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0069
376WB35K23 GE Heater Deflector
390GEN WB34K0034
391GEN WB34K0026
392GEN WB04K0003
397WB7X7183 GE Oven Black Handle Endcap
397WB1K62 GE Oven Door Assembly
441GEN WB07X7181
441GEN WB07X7182
1394TRIM DOOR (BK)
