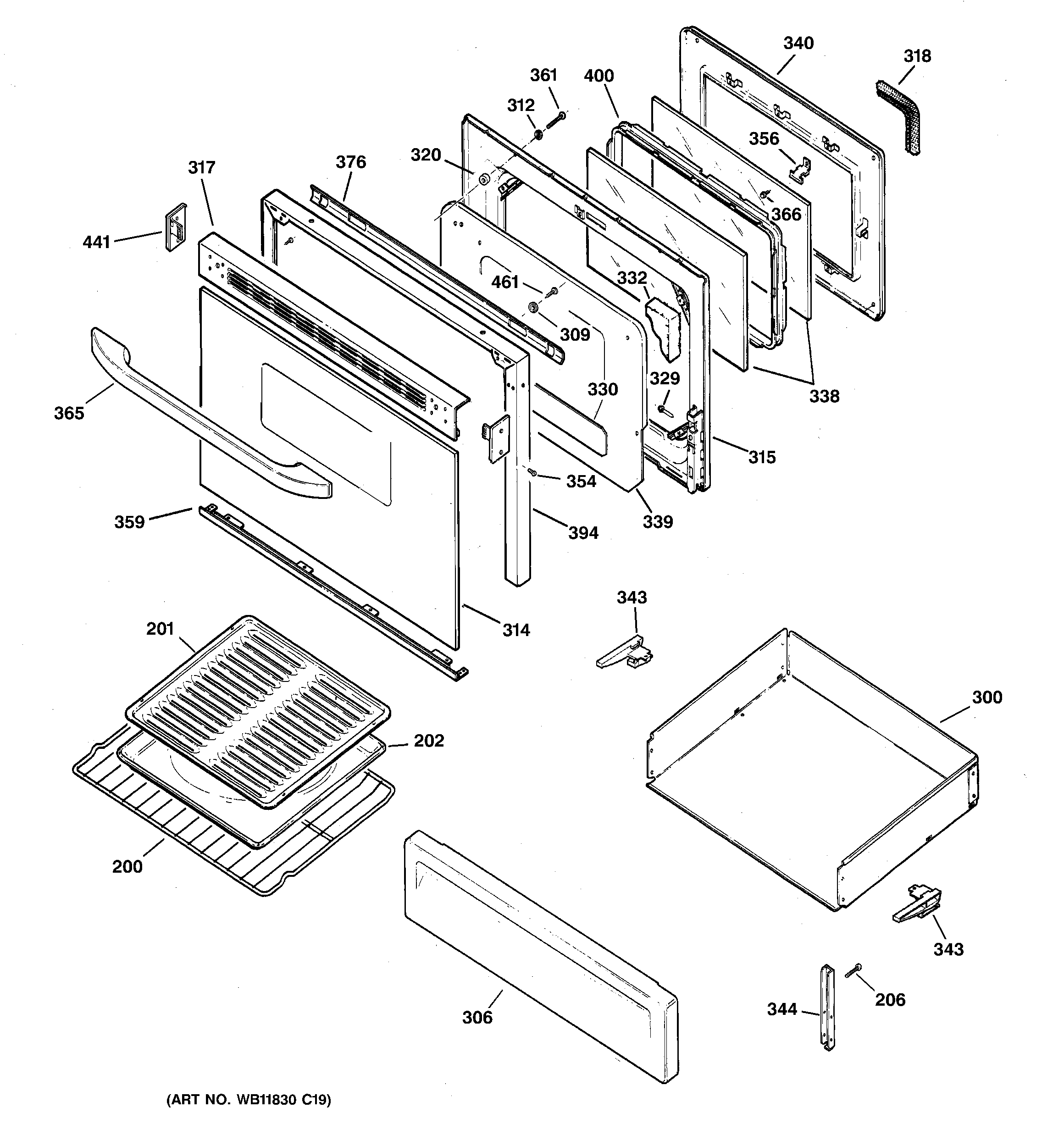

JGBP30CEH3CC DOOR & DRAWER PARTS

Products

Position	Product
200	WB48T10095 GE Oven Rack
202	WB48X10056 GE Broil Pan Set, Large Porcelain
206	WR01X10065 GE Screw
300	GEN WB58K10001
306	GEN WB36K10164
309	WASHER
312	WB1X119D GE Oven Range Washer
314	GLASS OVEN DOOR (BSQT)
315	GEN WB55K0025
317	GEN WB35K0033
317	WB36K10212 GE Top Door Trim (Bisque)
318	WB4K1 GE Oven Gasket Door
320	GEN WB02K0084
329	WB1X558D GE Oven Screw Package
330	GEN WB35K0022
332	GEN WB35K0024
332	GEN WB35K0025
338	CRYSTAL WINDOW
339	WB56K12 GE Oven Insulation Guard
340	WB55K13 GE Oven Panel Weld
343	WB02K10061 GE Oven Drawer Glide
343	WB02K10062 GE Oven Drawer Glide
344	WB39K20 GE Oven Mounting Bracket Drawer
354	WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
356	GEN WB02K0056
359	WB07K10269 GE Oven Bottom Trim Assembly
361	GEN WB01K0069
365	HANDLE ASM (BQ)
366	WB1K67 GE Oven Screw 8-22
376	WB35K23 GE Heater Deflector
394	GEN WB07K10130
400	WB34K10087 GE Oven Window Spacer Assembly
441	GEN WB07K10129
441	GEN WB07K10128
461	WB1K63 GE Oven Screw
