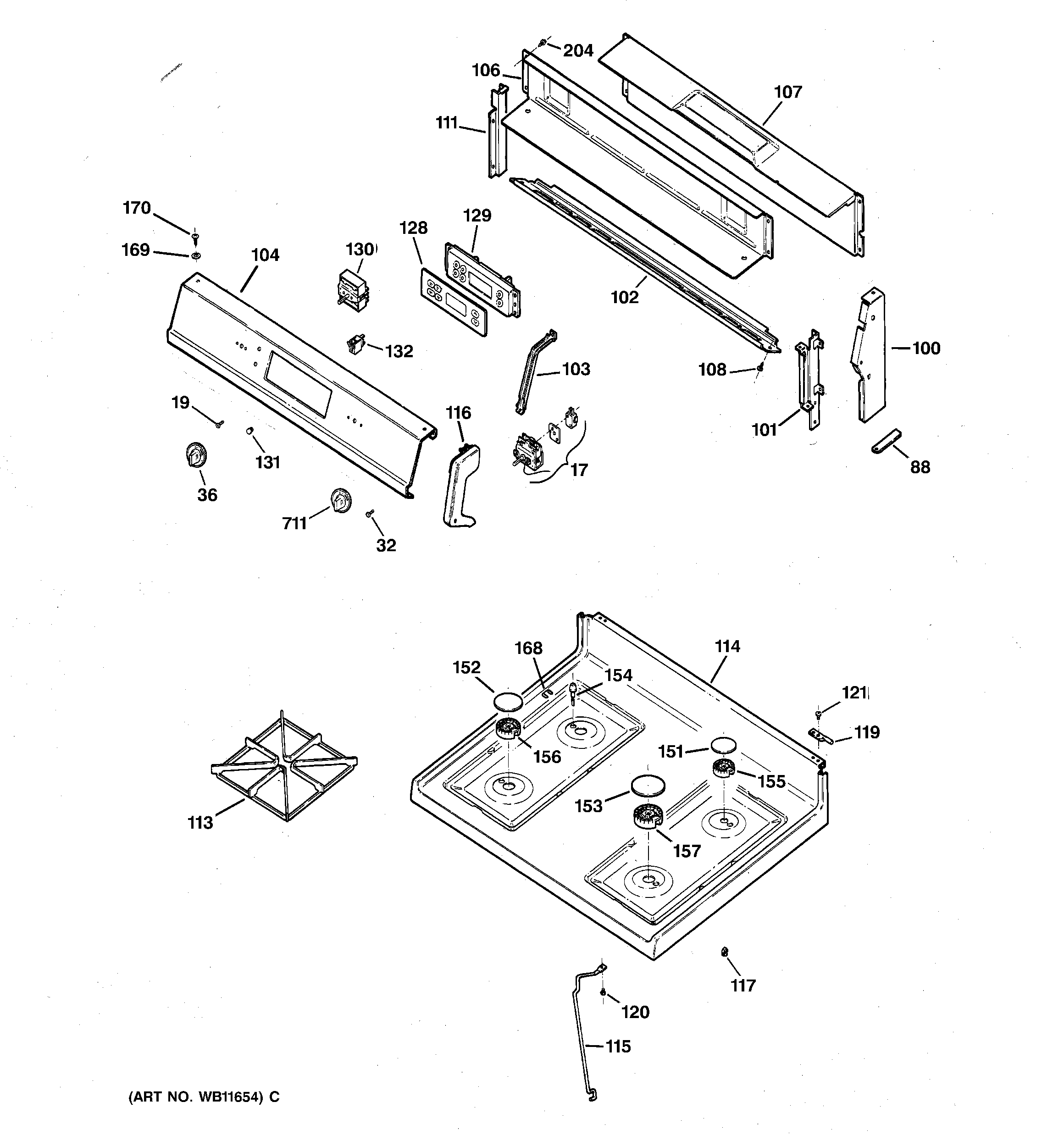

JGBP30GEV1AD CONTROL PANEL

JGBP30GEV1AD CONTROL PANEL

Written by

in

JGBP30GEV1AD CONTROL PANEL

Products

PositionProduct
17GEN WB20K0003
19WB1K8 GE Oven Thermostat Screw
32GEN WB01K0017
36SELECTOR KNOB (BK)
88GEN WB02K0085
100GEN WB07K0242
100GEN WB07K0243
101GEN WB37K0018
101GEN WB37K0017
102GEN WB07K0005
103GEN WB37K0016
104GEN WB36K0009
106GEN WB36K0017
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
111GEN WB34K0005
113GEN WB31K0021
114GEN WB62K0027
115GEN WB06K0008
116GEN WB07K0247
116GEN WB07K0246
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
129GEN WB12K0020
130GEN WB24K0005
131WB25T10041 GE Oven Lens
132LAMP PILOT
136GEN WB11K0029
151CAP BURNER SMALL (BK)
152CAP BURNER MED (BK)
153CAP BURNER LG (BK)
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157BURNER HEAD-LG
168ELECTRODE CLIP
169GEN WB01K0057
204WB1K5062 GE Oven Screw
711THERMOSTAT KNOB (BK)
752WZ4X345D GE Screw Package 12 C92
