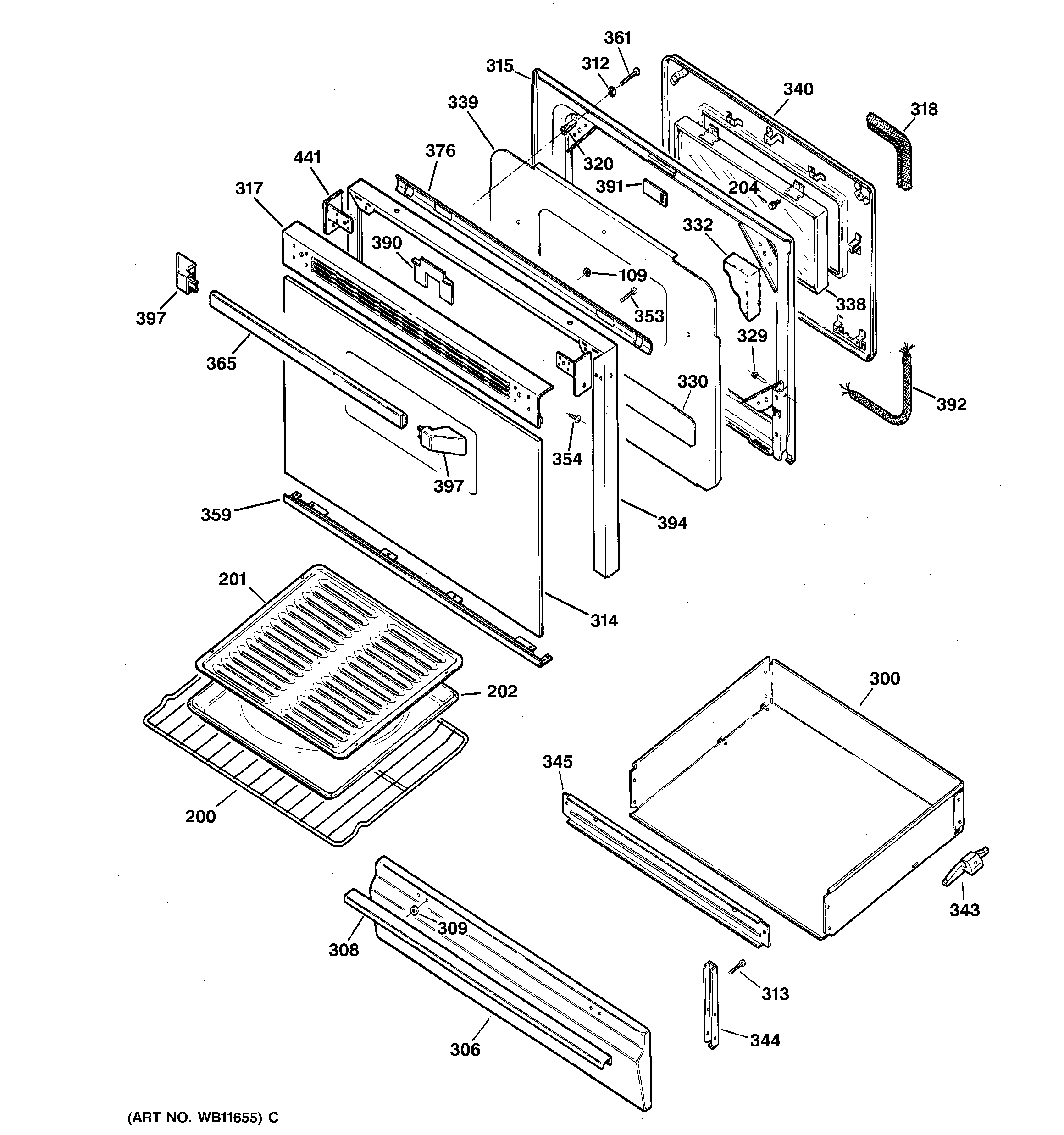

JGBP30WEV4WW DOOR & DRAWER PARTS

JGBP30WEV4WW DOOR & DRAWER PARTS

Written by

in

JGBP30WEV4WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
204WB1K5062 GE Oven Screw
300GEN WB39K0021
306WB56X21199 GE Oven Drawer Panel
308GEN WB15K0017
309WASHER
312WB1X119D GE Oven Range Washer
314WB57K3 GE Oven Outer Door Glass White
315GEN WB55K0025
318WB4K1 GE Oven Gasket Door
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0020
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB39K0022
353WB1K67 GE Oven Screw 8-22
359GEN WB07X7187
359TRIM BOTTOM ASM
359WB7X7188 GE Oven Left Endcap
361GEN WB01K0069
376WB35K23 GE Heater Deflector
390GEN WB34K0034
391GEN WB34K0026
392GEN WB04K0002
394TRIM DOOR (WH)
397WB1K66 GE Screw
397WB7X7189 GE Oven Range Door Handle Endcap White
