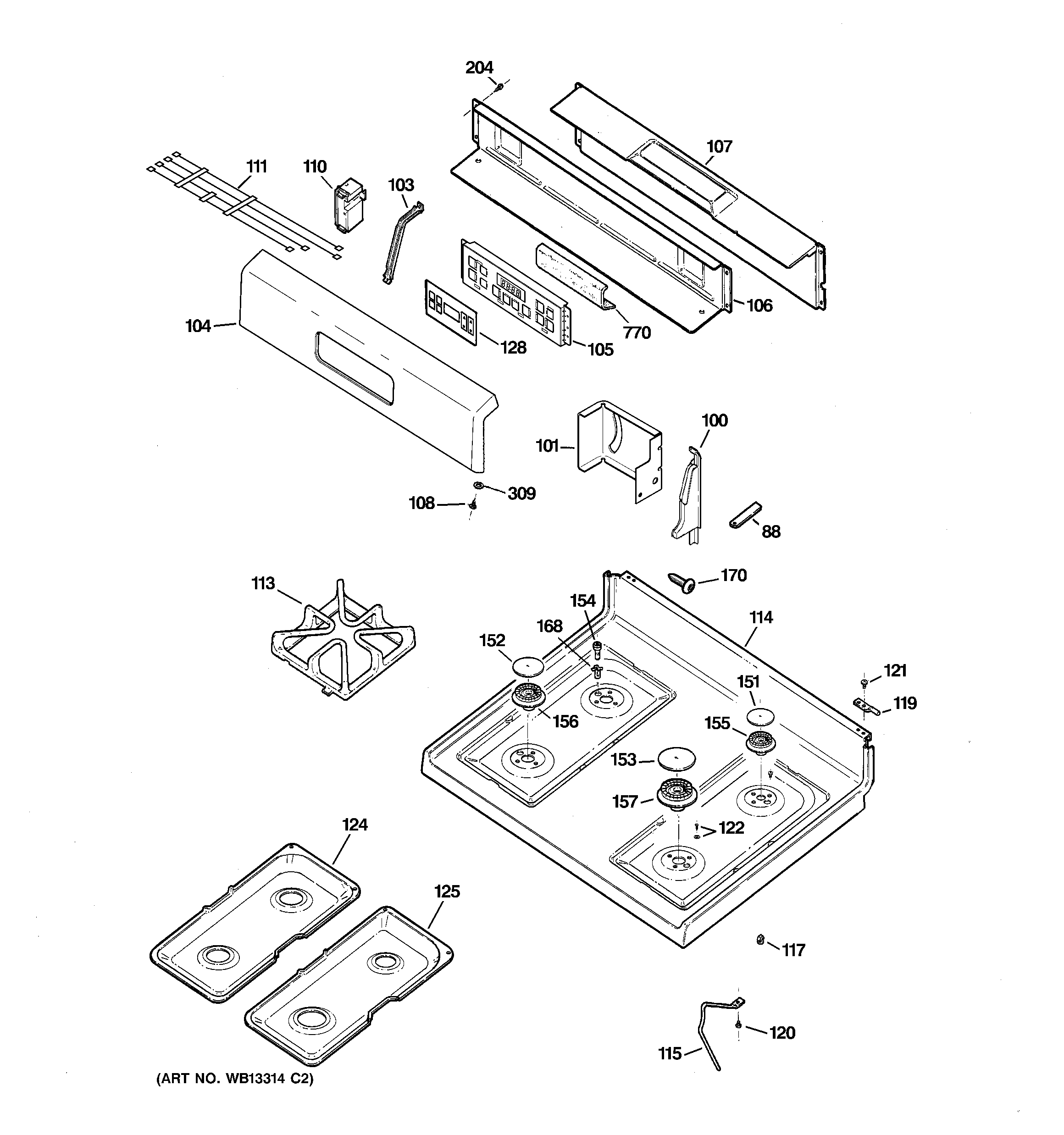

JGBP32BEL3BB CONTROL PANEL & COOKTOP

JGBP32BEL3BB CONTROL PANEL & COOKTOP

Written by

in

JGBP32BEL3BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K10099
88GEN WB02K0062
100WB07K10193 GE Oven End Support Gloss Black
100WB07K10194 GE Oven End Support Gloss Black
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103WB02K10074 GE Oven Control Bracket
104TRIM CONTROL
105WB27K10355 GE Oven Electronic Control Board
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10062
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB1X5364 GE Oven Mounting Screw
110WB18K10042 GE Oven Harness Module
110WB13X42446 GE Spark Module Replacement Kit
111GEN WB18K10039
113GEN WB31K10042
114GEN WB62K10053
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
124WB34K10017 GE Oven Terminal Block Cover
125WB34K10009 GE Oven Double Burner Drip Pan
128GEN WB27K10109
151WB29K10009 GE Oven Burner Cap
152WB29K10001 GE Oven Burner Cap
153WB29K10006 GE Oven Burner Cap
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
309WASHER
770WB35K10040 GE Oven Insulation Control
