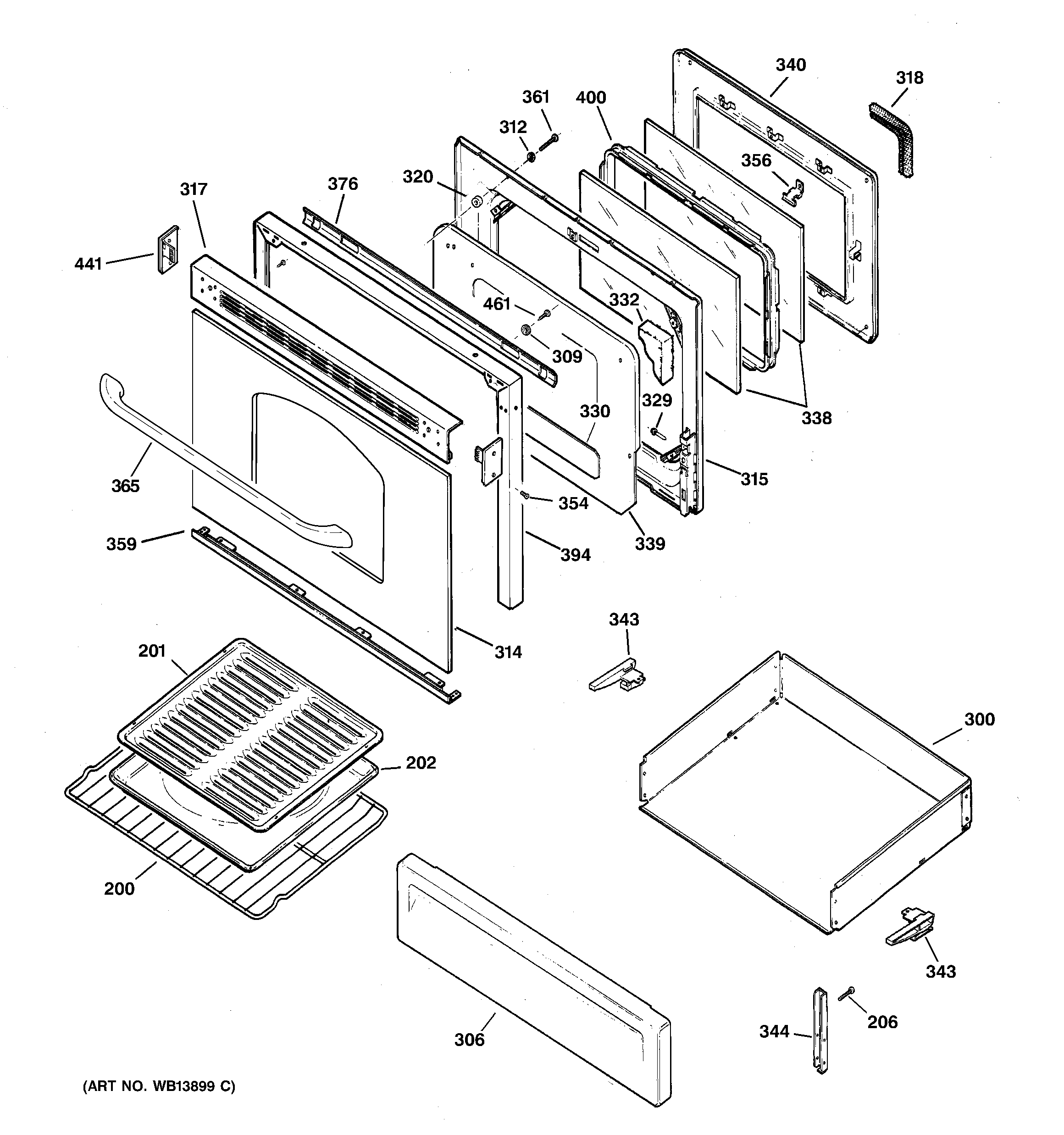

JGBP32CEL2CC DOOR & DRAWER PARTS

JGBP32CEL2CC DOOR & DRAWER PARTS

Written by

in

JGBP32CEL2CC DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
206WR01X10065 GE Screw
300GEN WB58K10004
306GEN WB36K10164
309WASHER
312WB1X119D GE Oven Range Washer
314GEN WB57K10112
315GEN WB55K0025
317WB36K10212 GE Top Door Trim (Bisque)
318WB4K1 GE Oven Gasket Door
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0024
332GEN WB35K0025
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
356GEN WB02K0056
359WB07K10269 GE Oven Bottom Trim Assembly
361GEN WB01K0069
365GEN WB15T10134
376WB35K23 GE Heater Deflector
394GEN WB07K10130
394GEN WB35K0033
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07K10128
441GEN WB07K10129
461WB1X536 GE Oven Screw
461WB01K10012 GE Oven Screw 8-22 PL 1HX
